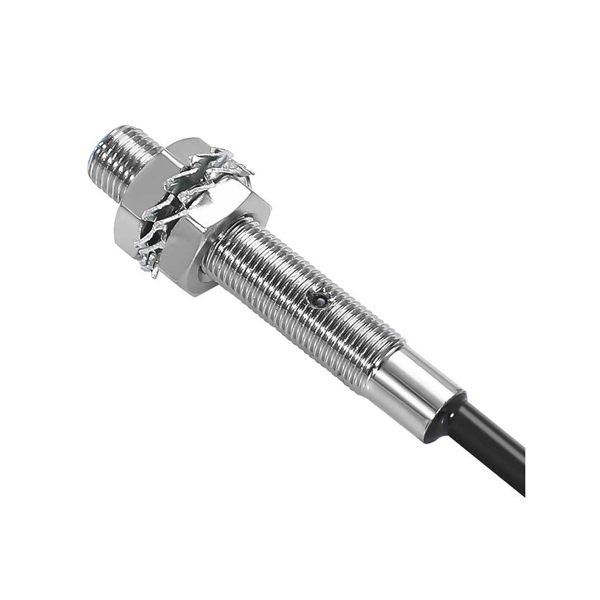

M5 2 Wire Inductive Proximity Sensor, NPN/PNP, NO/NC

Name: M5 2 Wire Inductive Proximity Sensor, NPN/PNP, NO/NC
Brand: Such.com
SKU: SUCH-IPS-I5
Price: 39.95 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-IPS-I5

$39.95

● M5*1 thread ● NPN/PNP/2 wire output methods ● Magnetic metal detection ● Shockproof, dustproof, waterproof, oil-proof

Specification Selection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

M5 small proximity sensor manufacturer direct sale online. It works at -30℃ to 65℃ operating temperature range and DC 12-24V (6-36V), AC 110-220V (90-250V) voltage range, can detect magnetic metal in a 1mm detection distance. Inductive type proximity switch, shielded installation design, strong anti-interference ability, 6 selectable output methods and IP67 protection performance.

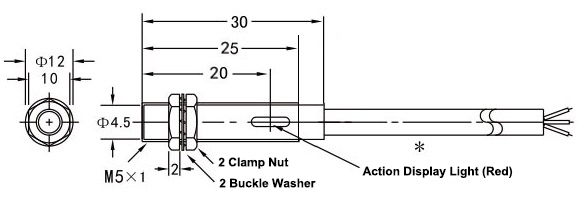

Dimension (Unit: mm)

Wiring Diagram

Specs

Installation type			Shielded
All the output methods	DC type	NPN	NO
			NC
		PNP	NO
			NC
		2 wire	NO
			NC
Detection range			1mm±10%
Setting distance			0-0.7mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 551mm
Response frequency			DC: 2kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Application

Automated Production

Machinery and Machine Tool Industry

Automotive Manufacturing

FAQ

Q1: What power supply voltage range is compatible with the M5 2-wire inductive proximity sensor? ❯

The M5 2-wire inductive proximity sensor supports a wide DC power supply range, DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz, making it suitable for most industrial control systems and automation equipment.

Q2: Is the M5 proximity sensor resistant to oil and dust, and what protection level does it have? ❯

Yes, it is designed for industrial environments with an IP67 protection level, effectively resisting oil, dust, and water splashes, ensuring stable operation in harsh working conditions.

Q3: Can this M5 proximity switch detect non-metallic targets, such as plastic or wood? ❯

No, the inductive proximity switch specifically detects magnetic metal (the detection distance decreases when it is a non-magnetic metal).
