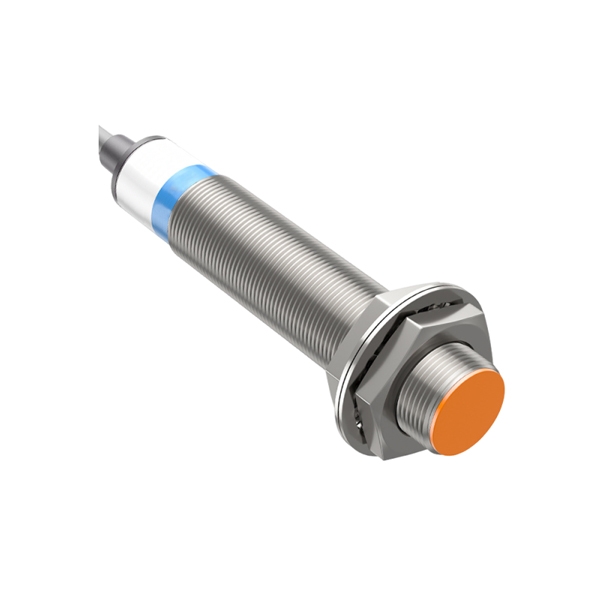

M12 2 Wire Inductive Proximity Sensor, NPN/PNP, NO/NC

0 review(s) | Add your review

SKU: SUCH-IPS-I12

$38.79

● M12*1 thread ● Magnetic metal detection ● Shielded or unshielded installation type ● DC type or AC type output method

Specification Selection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

M12 inductive proximity sensor manufacturer direct sale. Shielded/unshielded type installation, 2mm/4mm detection distance, DC type (PNP/PNP) or AC type 2 wire output methods are available. The 12mm proximity switch with a nickel-plated brass shell, ABS detection surface and IP67 protection level, suitable for metal detection.

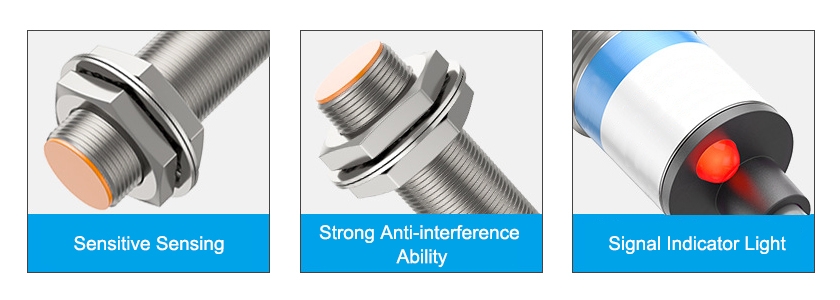

Feature

SUCH inductive proximity sensor uses an intelligent sensing chip with fast response and strong anti-interference capability to accurately detect nearby metal objects. With high repeat positioning accuracy, high switching frequency, and selectable NPN/PNP (NO/NC) output modes, it ensures stable and reliable operation in various applications.
It is equipped with a red LED indicator that clearly shows the operating state. When a metal target is detected, the indicator turns on or off according to the NO/NC mode, making on-site debugging and monitoring easier.
M12 inductive proximity switch offers vibration, dust, water, and oil resistance, supports a wide voltage range, and includes reverse polarity and short-circuit protection for direct PLC connection. Its robust construction allows it to replace small mechanical switches and limit switches while maintaining stable performance in harsh environments.

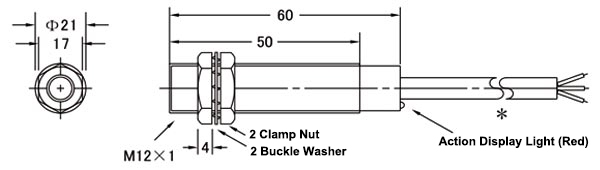

Dimension (Unit: mm)

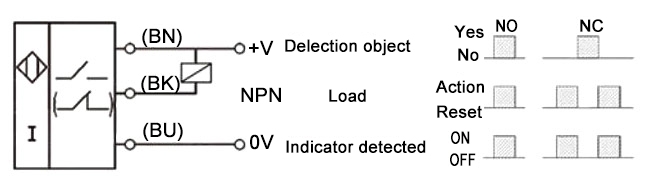

Wiring Diagram

Specs

Installation type			Shielded	Unshielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
			NO+NC	NO+NC
		PNP	NO	NO
			NC	NC
			NO+NC	NO+NC
		2 wire	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
Detection range			2mm±10%	4mm±10%
Setting distance			0-1.6mm	0-3.6mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 12121mm	Iron 15151mm
Response frequency			DC: 1kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Application

Automated Production

Machinery and Machine Tool Industry

Automotive Manufacturing

FAQ

Q1: What does “shielded” mean for an inductive proximity sensor? ❯

The shielded inductive proximity sensor has a built-in metal shielding structure around the sensing coil. This allows the sensor to be flush-mounted in metal surfaces without causing false triggers and provides a more focused sensing field.

Q2: Is a 2-wire NPN NO inductive sensor compatible with standard PLC inputs? ❯

Yes, most PLC digital inputs can accept a 2-wire NPN NO sensor, as long as the input supports sinking (NPN) signals and the operating voltage matches the PLC’s input specification. Always check the PLC manual before wiring.

Q3: What is the typical sensing range of an M12 shielded inductive proximity sensor? ❯

For an M12 shielded inductive sensor, the typical sensing distance is around 2 to 4 mm, depending on the specific model and target material (usually calibrated using a standard 1×1 cm iron target).
