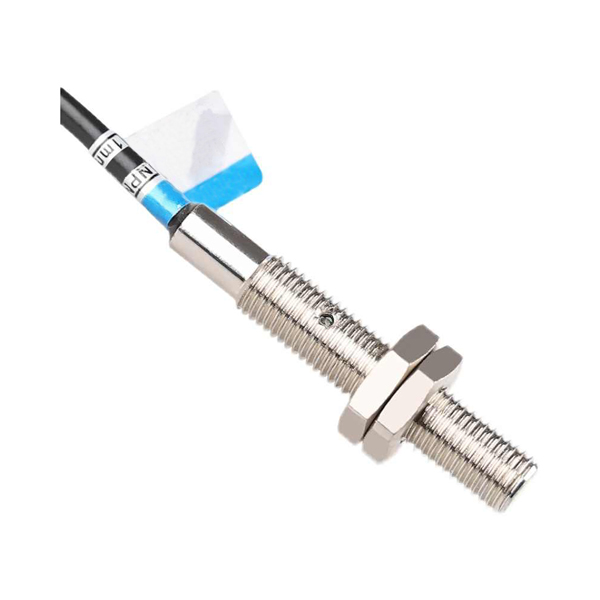

M6 2 Wire Inductive Proximity Sensor, NPN/PNP, NO/NC

Name: M6 2 Wire Inductive Proximity Sensor, NPN/PNP, NO/NC
Brand: Such.com
SKU: SUCH-IPS-I6
Price: 39.95 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-IPS-I6

$39.95

● M6*1 thread ● Magnetic metal detection ● PNP/NPN/2 wire output methods ● Voltage range: DC 12-24V, AC 110-220V

Specification Selection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH M6 inductive prox sensor provides DC 12-24V, AC 110-220V voltage range, PNP/NPN/2 wire output methods and shielded installation, designed for detecting magnetic metal in a 1mm detection distance. With an IP67 protection rating and a –30°C to 65°C temperature range, the 6mm proximity switch performs well in harsh environments.

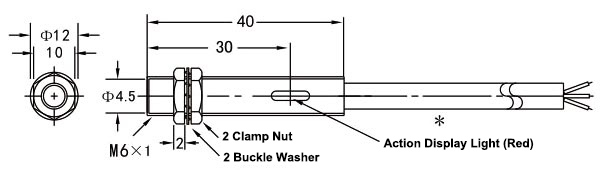

Dimension (Unit: mm)

Wiring Diagram

Specs

Installation type			Shielded
All the output methods	DC type	NPN	NO
			NC
		PNP	NO
			NC
		2 wire	NO
			NC
Detection range			1.0mm±10%
Setting distance			0-0.7mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 12121mm
Response frequency			DC: 2kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Application

Automated Production

Machinery and Machine Tool Industry

Automotive Manufacturing

FAQ

Q1: What is the difference between the M6 inductive proximity sensor and M4/M5 models in terms of installation? ❯

The M6 inductive proximity sensor has a 6mm diameter housing (larger than M4/M5), offering more stable installation with M6 threaded mounting. It is suitable for applications requiring slightly higher mechanical strength than smaller-sized sensors.

Q2: Can this proximity sensor be directly powered by a 24V DC system? ❯

Yes. The proximity sensor can be used for 24V DC operation, making it compatible with standard industrial power supplies and easy to integrate into automation equipment.

Q3: Is the M6 inductive proximity switch suitable for compact or limited-space installations? ❯

Absolutely. Its M6 threaded cylindrical housing is ideal for small spaces, precision machinery, and applications requiring miniature sensing components.
