    Picture of Analog Output Inductive Proximity Switch, Flush/Non-flush Picture of Analog Output Inductive Proximity Switch, Flush/Non-flush Picture of Analog Output Inductive Proximity Switch, Flush/Non-flush

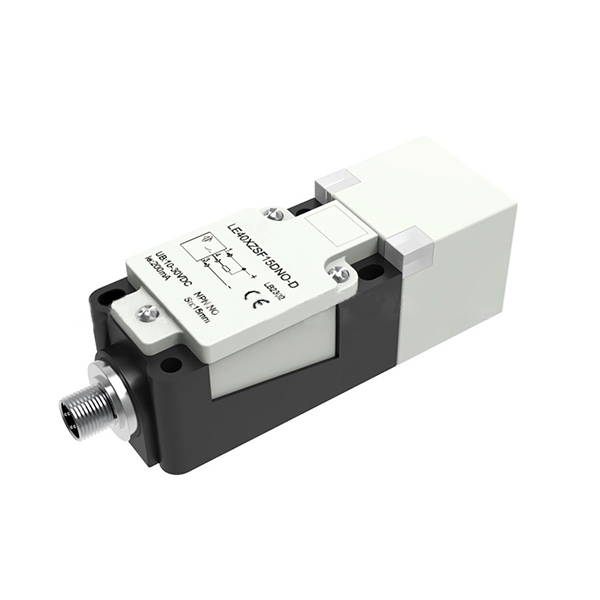

    Analog Output Inductive Proximity Switch, Flush/Non-flush

    0 review(s) | Add your review
    SKU: SUCH-IPS-LR40XZ
    $180.32
    ● 4 analog signal output modes ● Flush or non-flush mounting options ● Detection distance: 15 or 20mm ● DC 2 wire normally open/normally closed
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    SUCH an analog output inductive proximity switch for sale online. It is available in flush/non-flush 2 installation types, 3 output methods and M12 connector/terminal connection for selection. This proximity sensor can operate in an ambient temperature range of -25℃ to 70℃ and a humidity range of 35% to 95% RH, suitable for various industrial environments.

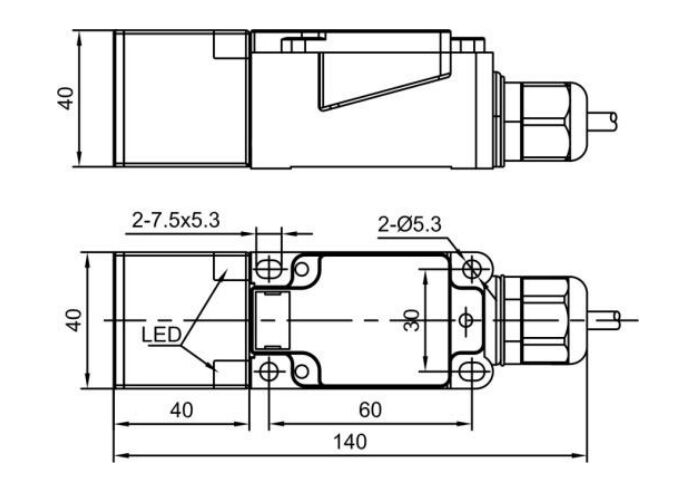

    Dimension (Unit: mm)

    Analog output proximity switch dimension

    Wiring Diagram

    Analog output proximity switch wiring



    Specs
    Installation type Flush Non-flush
    Rated distance 10mm 15mm
    Detection range 2-10mm 3-15mm
    Switching frequency 100Hz 50Hz
    Standard target Fe 40*40*1t Fe 45*45*1t
    Analog signal output 0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
    Connection type M12 connector/ Terminal connection
    Supply Voltage 15-30VDC
    Switch-point drifts ≤±10%/ Sr
    Linearity ≤±5%
    Repeat accuracy ≤±3%
    Load current ≥4.7KΩ (voltage output) ≤470Ω (current output)
    Current consumption ≤20mA
    Loop protection Reverse polarity protection
    Power indicator Yellow  LED
    Ambient temperature -25℃-70℃
    Ambient humidity 35-95% RH
    Voltage withstand 1000V/ AC 50/ 60Hz 60s
    Insulation resistance ≥50MΩ (500VDC)
    Vibration resistant Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
    Protection class IP67
    Housing material PBT
    Certificates CE, UL,CCC, ROHS
    Warranty 12 months
    Application
    Analog Output Inductive Proximity Sensor for workpiece correction

    Workpiece Correction

    Analog Output Inductive Proximity Sensor for Door Anti-pinch

    Machinery and Machine Tool Industry

    Analog Output Inductive Proximity Sensor for workpiece correction

    Deviation Detection

    FAQ
    ❯

    The 0–10V output is suitable for short-distance signal transmission and high-impedance controllers. The 4–20mA/0–20mA current outputs provide better noise immunity and longer transmission distance, making them ideal for industrial environments or remote PLC inputs.

    ❯

    Yes. The proximity sensor supports both M12 connector and terminal wiring. The M12 connector allows quick installation and replacement, while terminal connection offers flexible wiring for fixed setups.

    ❯

    What objects can this analog inductive proximity sensor detect?
