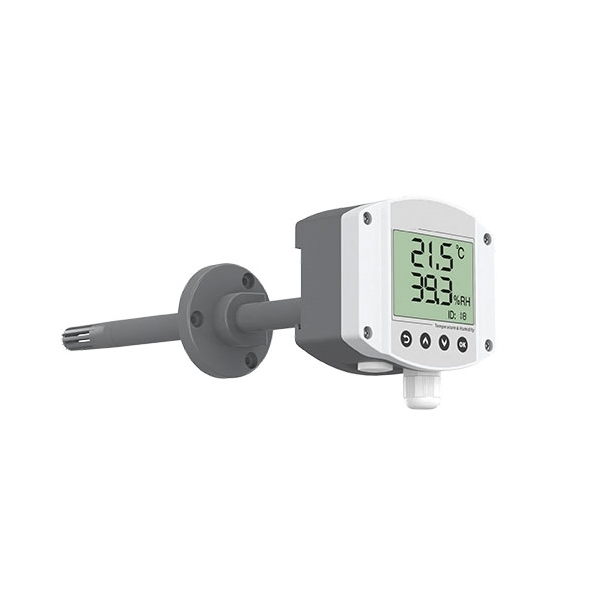

Digital Temperature and Humidity Sensor for Duct

Name: Digital Temperature and Humidity Sensor for Duct
Brand: Such.com
SKU: SUCH-TH-DGT
Price: 159.99 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-TH-DGT

$159.99

● Output signal RS485/4-20mA/0-5V/0-10V ● Humidity range 0%RH~100%RH ● Temperature range -40°C~+80°C ● Accurate temperature and humidity for duct

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Digital temperature and humidity sensor for duct provides reliable monitoring for poultry environments. It measures humidity from 0-100%RH and temperature from -40°C to +80°C with multiple outputs (RS485, 4-20mA, 0-5V, 0-10V). The humidity sensor ensures stable performance with EMC anti-interference components and an industrial-grade chip. It features a clear LCD display, dual AC/DC power supply, and easy parameter setup via 485 configuration software. A silicone sealing ring, adjustable flange, and three-proof circuit board enhance durability and accuracy, while the screwless terminal design makes installation fast and convenient.

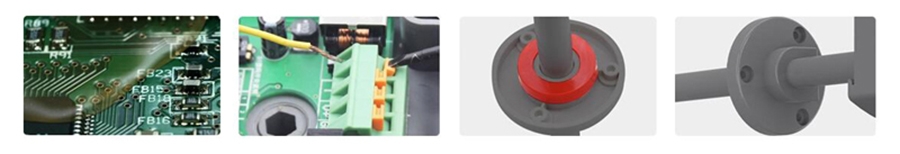

Feature

Digital temperature and humidity sensor feature

High Accuracy Measurement Unit: Digital temperature and humidity sensor ensures precise temperature and humidity readings with minimal drift and high stability over time.
Strong Anti-Interference Performance: Uses EMC anti-interference components and an industrial-grade processing chip, providing stable operation even in strong electromagnetic environments.
LCD Display: Real-time temperature and humidity data displayed clearly on the LCD screen for easy monitoring.
Dual Power Supply Modes: SUCH temp & humidity sensor supports both AC and DC power supply for flexible installation in different environments.
Free Configuration Software: Comes with “485 Parameter Configuration” software for computer connection, allowing flexible sensor parameter adjustments.
Silicone Sealing Ring: Provides airtight sealing between the sensor and ventilation pipe, reducing air leakage and improving measurement accuracy.
Adjustable Flange Plate: The adjustable flange design allows easy control of insertion depth and secure installation with adjustable side screws.
Three-Proof Circuit Board Treatment: The circuit board is treated with moisture-proof, salt-fog-proof, and mold-proof coating, ensuring durability and long-term reliability.
Screwless Terminal Connection: Features an advanced screwless terminal design, making wiring faster and more convenient, especially in high or hard-to-reach places.

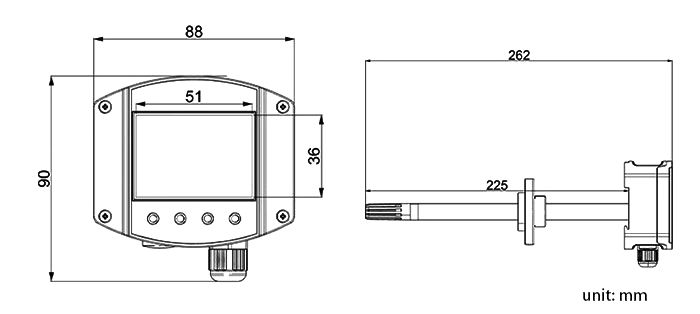

Dimension

Digital temperature and humidity sensor size

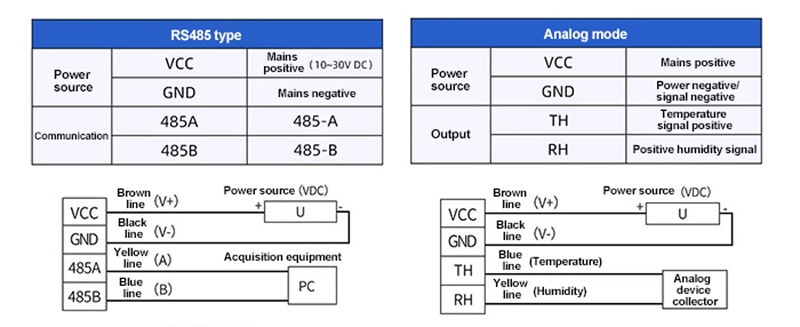

Wiring

Digital temperature and humidity sensor wring

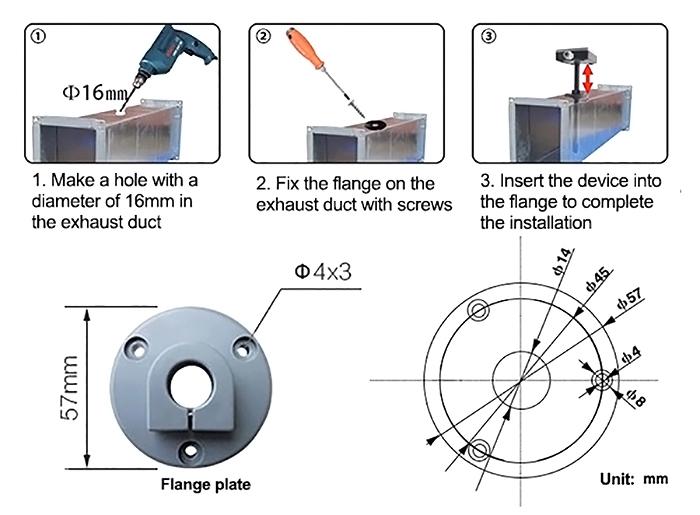

Installation Note

Digital temperature and humidity sensor installation

Specs

Power Supply	DC12~36V/AC24V (±20%) or DC15~36V/AC24V (±20%)
Output Signal	RS485 (ModBus protocols)/4-20mA/0-5V/0-10V
Maximum Power Consumption	0.1W/1.5W
Accuracy ( Humidity )	±3%RH (60%RH, 25°C)
Accuracy (Temperature)	±0.2°C (25°C)
Humidity Range	0%RH~100%RH
Temperature Range	Default: -40°C~+80°C
Transmitter Circuit Operating Temperature and Humidity	-20°C~+60°C, 0%RH~99.9%RH (non-condensing)
Probe Operating Temperature	Default: -40°C~+80°C
Probe Operating Humidity	0%RH~100%RH
Long Term Stability (Humidity)	≤0.25%RH/y
Long Term Stability (Temperature)	≤0.03°C/y
Response Time (Temperature)	≤25s (1m/s wind speed)
Response Time (Humidity)	≤8s (1m/s wind speed)
Maximum Allowable Air Velocity	16m/s
Load Capacity (Current Output)	0/≤600Ω
Load Capacity (Voltage Output)	0/Output resistance ≤1kΩ
Electromagnetic Compatibility Rating	Electromagnetic compatibility, test and measurement techniques, immunity test to electrically fast transient pulse groups, level 4
	Electromagnetic compatibility, test and measurement techniques, surge (impulse) immunity test level 4
	Electromagnetic compatibility, test and measurement techniques, electrostatic discharge immunity test level 4
	Electromagnetic compatibility, test and measurement techniques, immunity test to magnetic fields at work frequency, class 5
	Electromagnetic compatibility, test and measurement techniques, immunity test to voltage transients, short-time interruptions and voltage variations class 3

PDF computing Digital Temperature and Humidity Sensor User Manual

Application

HVAC Systems

Ventilation Duct

Laboratory Climate Control Cabinet

FAQ

Q1: What should be done if the readings fluctuate abnormally? ❯

Check for unstable power supply, poor grounding, or excessive electromagnetic interference. If using RS485, verify that the communication address and baud rate are configured correctly.

Q2: How to handle condensation or moisture accumulation on the probe? ❯

If condensation occurs, allow the sensor to dry naturally in a well-ventilated area. Avoid wiping or using heat sources to prevent damage to the sensing element.

Q3: Can the sensor be used in cold storage or refrigeration rooms? ❯

Yes. The wide operating temperature range (-40°C to +80°C) makes it suitable for cold storage, refrigeration monitoring, and other low-temperature environments.
