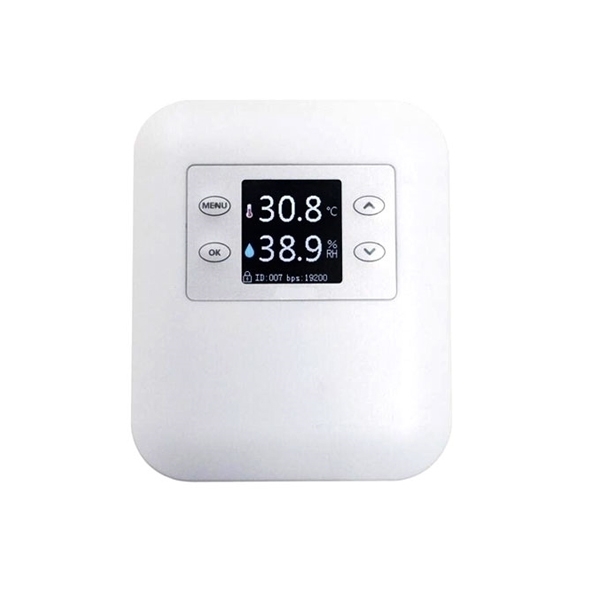

Temperature Humidity Sensor with Alarm, RS485

Temperature humidity sensor with alarm, is an advanced digital transmitter designed for precise environmental monitoring. It features a high-accuracy temperature and humidity sensor with strong anti-interference and long-term stability. Supporting RS485 output with the MODBUS RTU protocol, it ensures reliable data communication over distances up to 1000 meters. SUCH temp and humidity sensor includes a built-in alarm function for high and low temperature or humidity alerts and a high-definition TFT color display for real-time data visualization. With a wide measuring range of -40~80°C and 0~99.9% RH, powered by DC 9-36V or USB 5V, this humidity sensor is ideal for industrial sites, HVAC systems, smart buildings, laboratories, and other environmental monitoring applications.

Feature

• High Measurement Accuracy: Alarm temperature humidity sensor equipped with a high-quality digital temperature and humidity sensor, it ensures precise readings, excellent anti-interference capability, and long-term stability for consistent performance.
• Built-in Alarm Function: Features an internal alarm module that provides high and low temperature or humidity alerts, allowing users to monitor environmental changes in real time.
• RS485 Communication Output: Supports RS485 signal transmission with the standard MODBUS RTU protocol, ensuring reliable and flexible data communication.
• Long-Distance Transmission: Designed for stable signal transmission over distances up to 1000 meters, suitable for large-scale industrial monitoring systems.
• High-Definition TFT Display: The bright TFT color screen provides clear and intuitive visualization of temperature and humidity readings.
• Multi-Device Networking: Supports networking of up to 254 devices, enabling integration into multi-point temperature and humidity monitoring systems.
• Wide Application Range: Ideal for industrial workshops, power rooms, communication rooms, HVAC systems, intelligent buildings, museums, archives, and offices, offering a complete environmental monitoring solution.

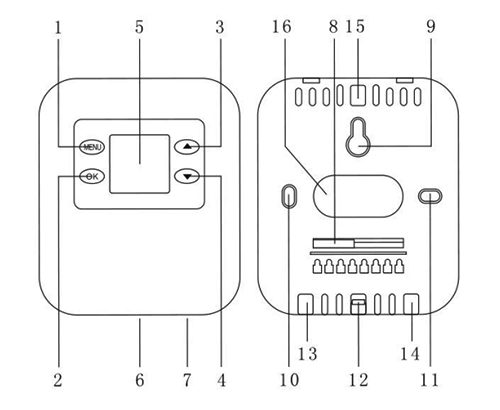

Detail

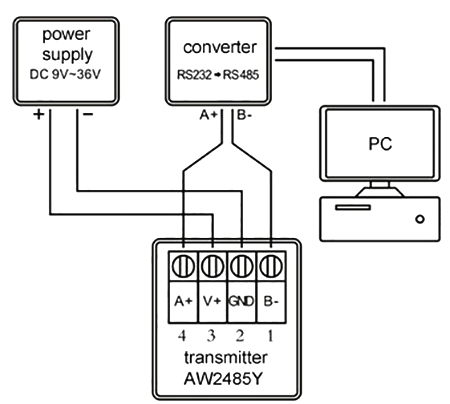

Wiring
