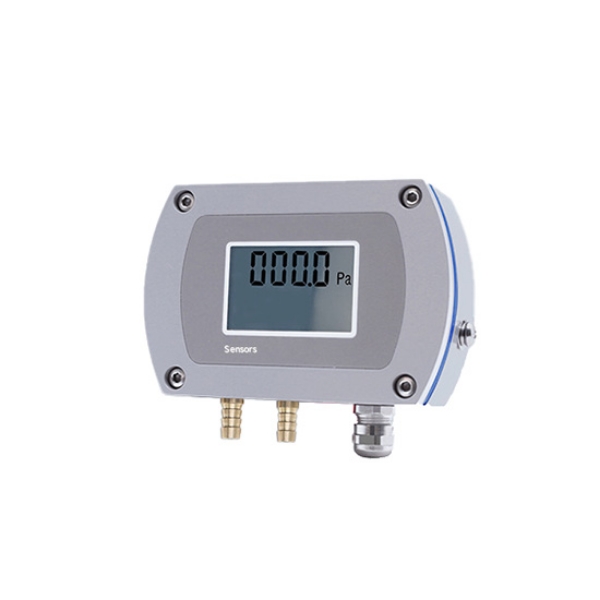

Explosion-proof Micro Differential Pressure Sensor with Display

SKU: SUCH-DPS-CCY30

$137.95

● Measuring range: 0–1 kPa to 100 kPa (selectable) ● Output signal 4–20mA/RS485/0–5VDC/0–10VDC/1–5VDC ● Power supply 9–36 VDC/12–36 VDC/12–24 VDC (intrinsically safe) ● Protection level IP65, CE certification

Measuring Range *
Connection Method *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Explosion Proof *
Output Signal *
Output Signal *
Output Signal *
Function *
Function *
Function *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH micro differential pressure sensor is available with or without a display and supports standard, intrinsically safe, and dust intrinsically safe explosion-proof grades. Its measurement range covers 0-1kPa to 100kPa. The explosion-proof differential pressure sensor offers output signals of 4-20mA, RS485, 0-5VDC, 0-10VDC, and 1-5VDC. Its power supply voltage is selectable from 9-36VDC, 12-36VDC, or 12-24VDC (intrinsically safe). An internal air damper effectively suppresses spikes caused by pulsed pressure, ensuring stable and reliable measurement data. It is suitable for HVAC, cleanrooms, industrial process control, and environments with gas or dust explosion hazards.

Feature

Sealing design: New sealing groove with upgraded gasket for stronger protection.
Zero adjustment: Convenient button for easy self-calibration.
Air damping: Built-in device to suppress pressure spikes and improve stability.
Mounting design: Rear hidden holes for easier installation and a more elegant appearance.

Dimension (Unit: mm)

Explosion proof differential pressure sensor size

Wiring Diagram

The oval represents the shield cable. All marked grounding points must be effectively grounded. Shielded twisted-pair signal cable is recommended. To prevent ground loops, the shield is grounded at one end, insulated and floating at the transmitter end, and grounded at the control cabinet end.
The transmitter housing is grounded by default, so field equipment must be effectively grounded. If grounding is not possible, ensure that the marked grounding points are effectively grounded.

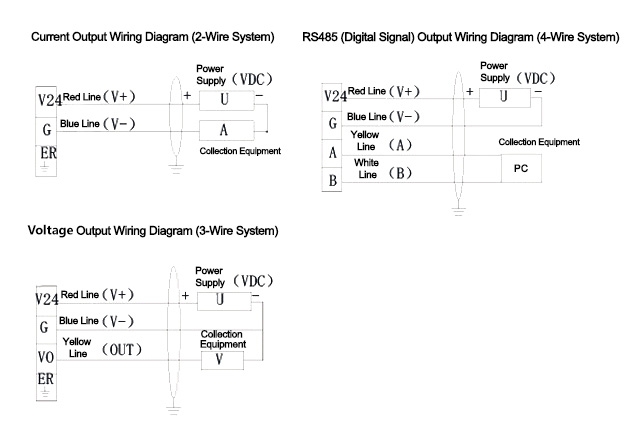

Explosion proof differential pressure sensor wirings

Use Case

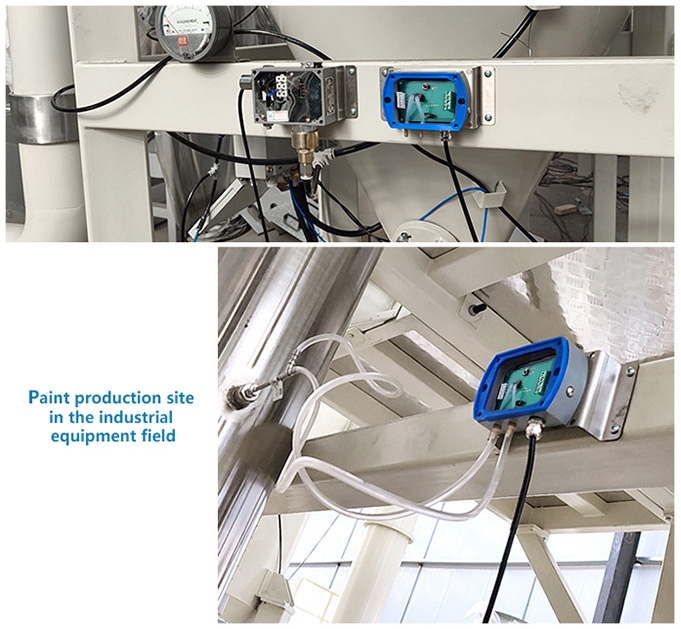

Explosion proof differential pressure sensor case

Specs

Measuring Medium	Gas (compatible with contact materials)
Measuring Range	0-1kPa-100kPa
Output Signal	4-20mA, RS485, 0-5VDC, 0-10VDC, 1-5VDC
Power Supply	9~36VDC, 12~36VDC, 12~24VDC (Intrinsically Safe)
Pressure Mode	Differential Pressure
Medium Temperature	-40-100°C
Accuracy Level	0.5%FS or 0.25%FS (range ≥1kPa), 1%FS or 0.5%FS (range <1kPa)
Temperature Compensation	-10-60°C
On-time	20ms
Response Frequency	Analog signal output ≤20Hz, digital signal output ≤5Hz
Stability	±0.3%FS/year (range ≥1kPa), ±0.5%FS/year (range <1kPa)
Temperature Drift	±0.03%FS/°C (within temperature compensation range)
Protection Level	IP65 Note: The above protection level is achieved when electrical connections are complete.
Durability	1x10⁶ cycles (number of cycles from lower to upper range limit)
Weight	No display: 380g; With display: 400g
Resolution	Analog output: 0.01% FS; digital output: 0.05% FS
Certification	CE

Output Signal and Power Supply

Power Supply	9~36VDC	12~36VDC	12~24VDC (Intrinsically Safe)
4-20mA	√	×	√
RS485	√	×	×
0-10VDC	×	√	×
0-5VDC	√	×	×
1-5VDC	√	×	×

Application

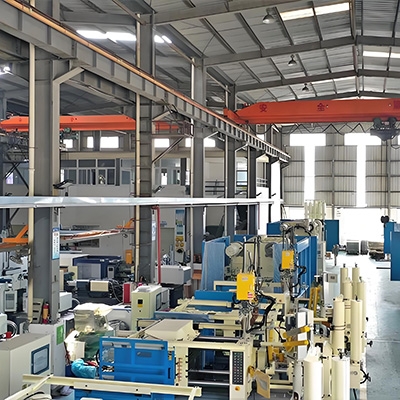

Workshop Equipment

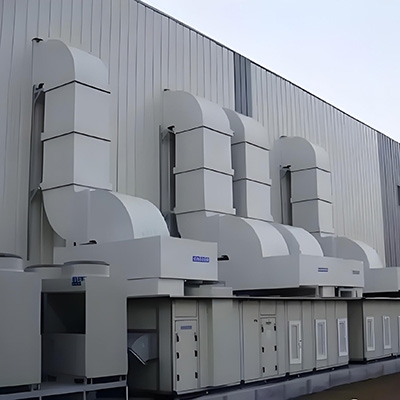

Ventilation System

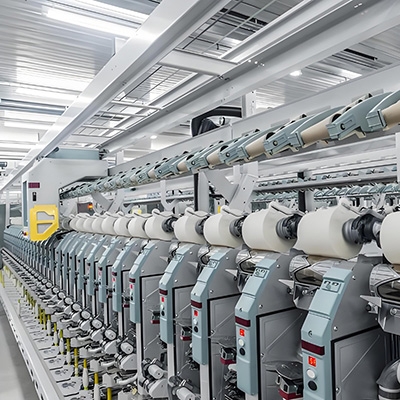

Textile Industry

FAQ

Q1: What explosion-proof options are available? ❯

The differential pressure sensor is available in three versions: Standard (non-explosion-proof), Intrinsically Safe (Ex i), and Dust Intrinsically Safe (Ex iD).

Q2: How is stability ensured in fluctuating pressure environments? ❯

The differential pressure sensor has a built-in air damping device to suppress pressure spikes and improve overall stability.

Q3: Is the explosion-proof differential pressure sensor suitable for grain processing or flour mills? ❯

Yes, the Dust Intrinsically Safe (Ex iD) model is designed for combustible dust environments like grain processing, flour mills, and feed plants.
