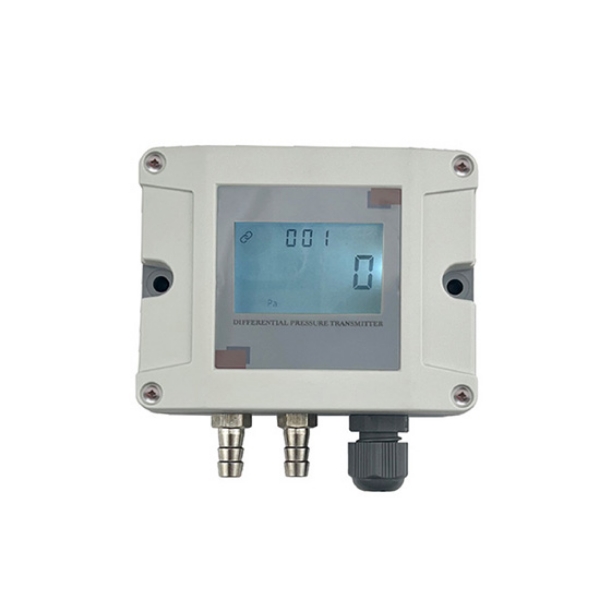

Smart Micro Differential Pressure Transmitter, 4-20mA

Smart micro differential pressure transmitter is widely used for air or neutral gas detection. Utilizing a MEMS micro-pressure core and digital temperature compensation technology, it boasts high accuracy of ±1%FS and a sensitive response. SUCH micro differential pressure transmitter supports multiple signal outputs, including 0-10V, 4-20mA, and RS485, and features an LCD backlight display. Its range covers -1000Pa to +100kPa. It is easy to install and offers strong anti-interference capabilities. It is widely used in HVAC, cleanrooms, building automation, and environmental monitoring.

Feature

• Strong Stability: Long-term output reliability and excellent anti-interference capabilities.
• Diversified Signals: Supports multiple output modes, including 0-10VDC, 4-20mA, and RS485.
• LCD Backlight Display: Clear and intuitive digital display for easy on-site reading.
• Digital Pressure Acquisition and Compensation: Digital pressure acquisition and temperature compensation ensure precise measurements.
• High-Precision Sensor: Built-in MEMS micro-pressure sensor delivers high sensitivity and superior performance.

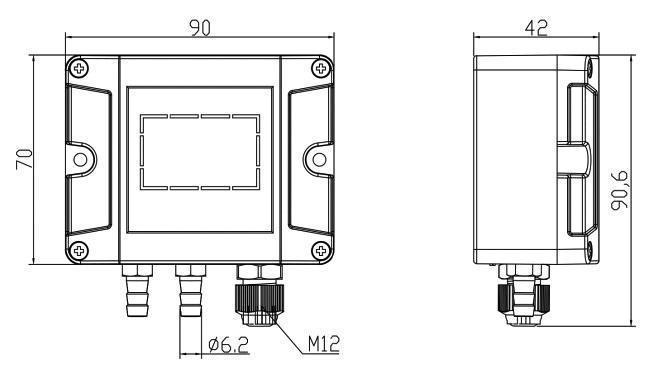

Dimension (Unit: mm)

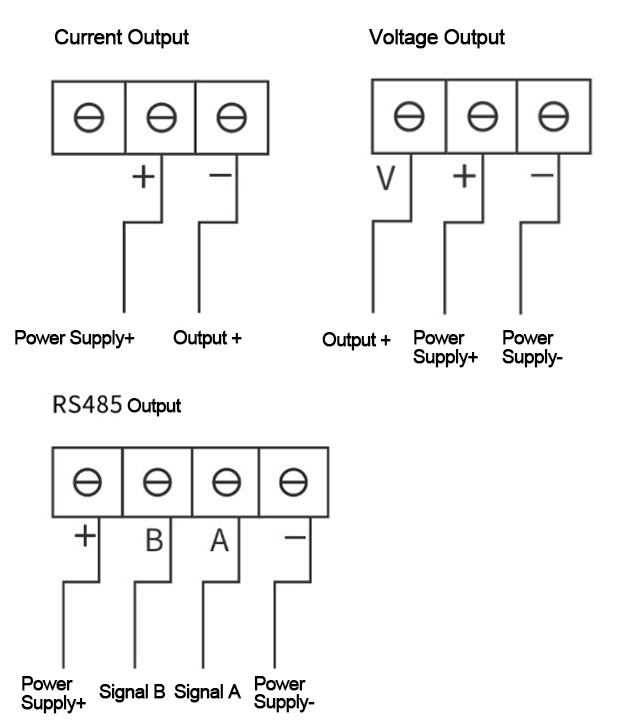

Electrical Connection
