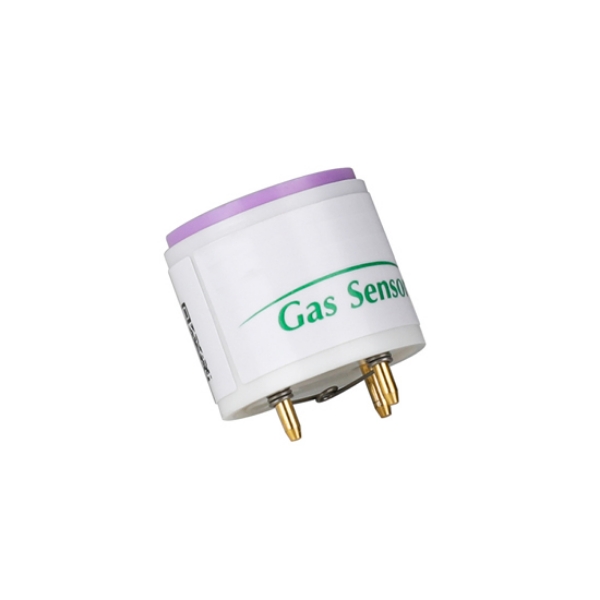

Electrochemical Hydrogen Fluoride (HF) Gas Sensor, 0-10ppm

High-quality hydrogen fluoride gas sensors employ an advanced three-electrode detection principle with a detection range of 0–10 ppm and sensitivity as high as -400±100 nA/ppm, ensuring rapid capture of gas leaks or trace HF. With a resolution of 0.1ppm, the electrochemical three-electrode structure ensures measurement stability and accuracy, featuring minimal zero drift for long-term reliable operation in harsh environments.

Feature

• High-Sensitivity Detection: Employing electrochemical three-electrode technology, it exhibits high responsiveness to hydrogen fluoride gas. The detection range spans 0~10ppm with a resolution of 0.1ppm, making it suitable for trace monitoring.
• Zero drift is less than 0.1ppm, with repeatability error and long-term stability both exceeding ±2%/month, ensuring data reliability.
• The HF gas sensor achieves T90 response within ≤120 seconds, with a linear range extending to 50ppm, meeting diverse concentration scenarios.
• High environmental adaptability allows normal operation across multiple temperature conditions, suitable for industrial and laboratory use.

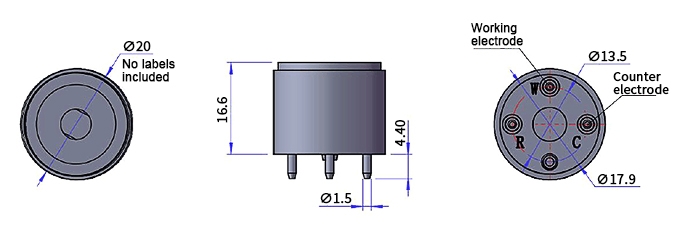

Dimension (unit: mm)

Cross Interference

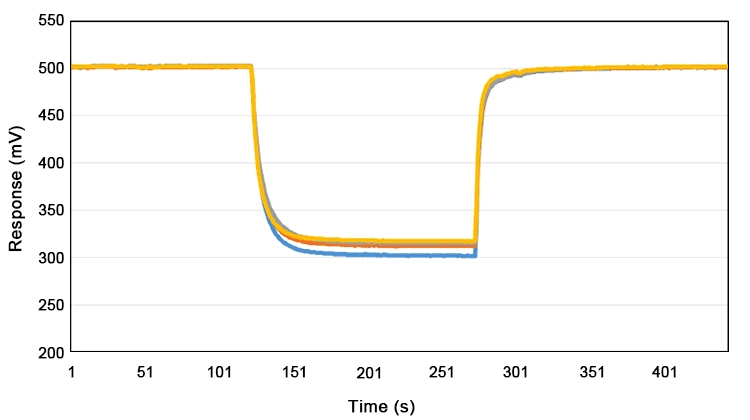

Response Recovery Curve

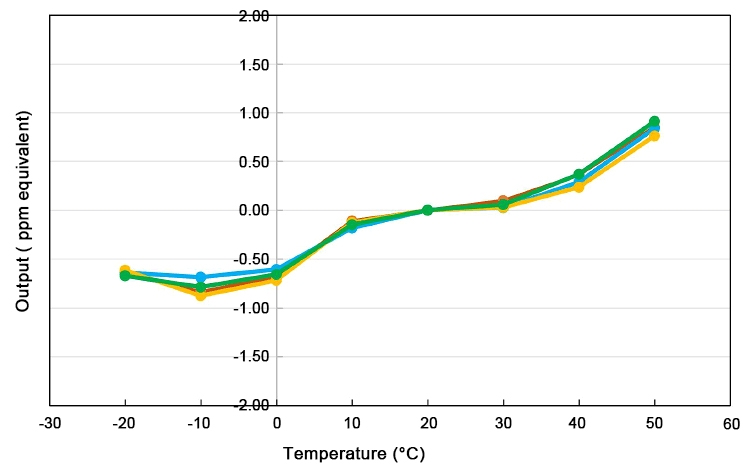

Baseline Temperature Dependency Curve
