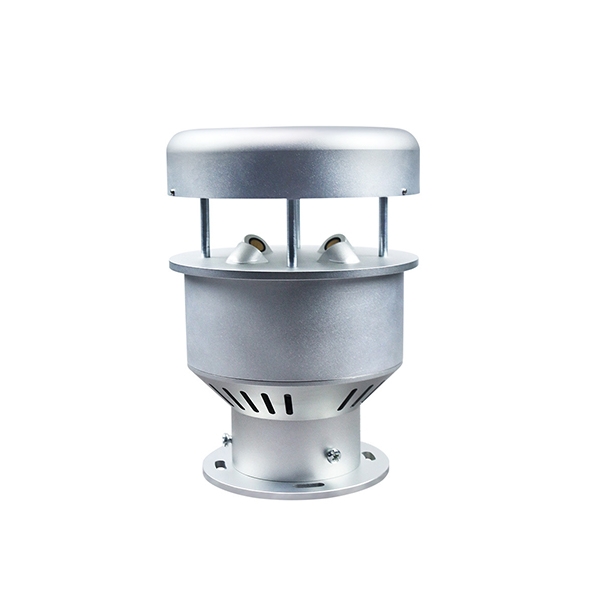

Industrial Ultrasonic Anemometer, Wind Speed Sensor, RS485

Industrial ultrasonic anemometers utilize ultrasonic principles, detecting the time or frequency difference of sound wave pulses propagating through the air to accurately measure wind speed and direction. SUCH industrial anemometer is lightweight, has no moving mechanical parts, is robust and durable, and requires no maintenance or on-site calibration. It is suitable for various applications including greenhouses, environmental monitoring, weather stations, ships, docks, and aquaculture. Supporting RS485 interface and MODBUS communication protocol, with a baud rate of 9600bps and power consumption as low as 120mA, it can operate stably within a range of -20~80℃ and 0～95%RH, providing reliable measurement capabilities for wind speed from 0~32.4m/s and wind direction from 0~359°.

Note: Wind sensors can be customized with parameters and functions according to different customer needs and application areas. This price is for reference only. Please contact customer service for specific customization details.

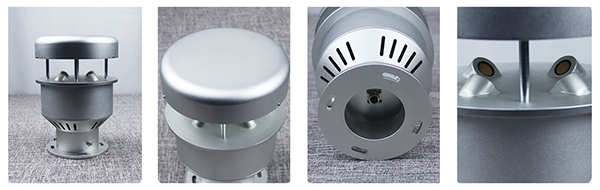

Feature

• Aluminum alloy protective housing: Robust and durable structure, effectively resisting harsh environments such as salt spray, suitable for long-term outdoor use.
• Omnidirectional measurement without angle limitations: Can simultaneously measure monitoring data such as wind speed and direction.
• Integrated sensor design: No mechanical displacement parts, significantly reducing the probability of component damage and improving equipment reliability and lifespan.
• Simple and beautiful appearance: All signal cable interfaces are built-in, with a delicate and neat appearance and high overall aesthetic appeal.

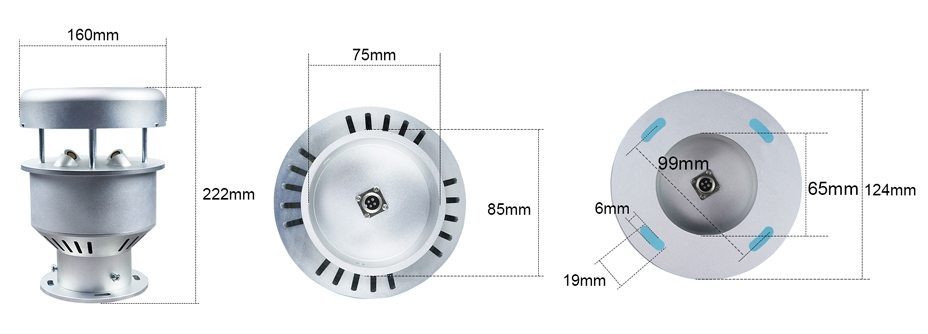

Dimension (Unit: mm)

Wiring Instruction
