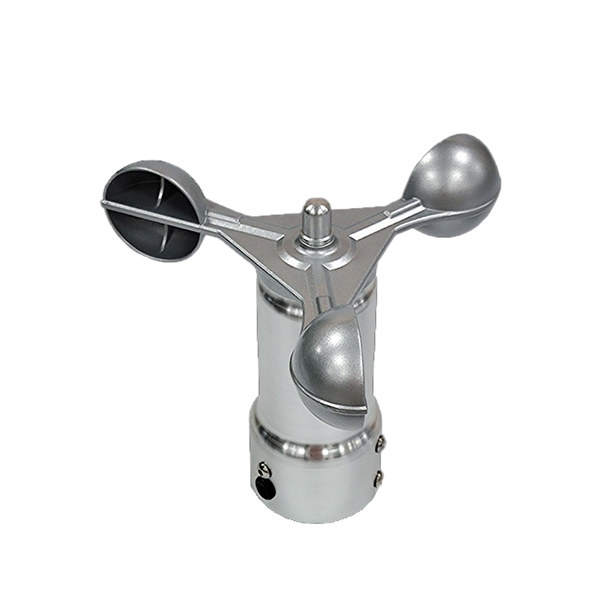

Heated Mechanical Cup Anemometer, Wind Speed Sensor, 0~100m/s

Heated three-cup anemometer employs a classic three-cup structure, enabling real-time wind speed measurement and outputting a linear signal. Internally, it features a heating element and a special sealed bearing. The housing is made of a specially processed all-metal material, providing UV resistance, corrosion resistance, and extreme weather resistance. Mechanical anemometer can operate stably in harsh environments such as dusty, high-humidity, high-salt-spray, extremely cold, and stormy conditions. SUCH three-cup anemometer is suitable for wind power equipment optimization, cableway and chairlift equipment monitoring, as well as meteorological stations and environmental monitoring. It has a measurement range of 0~70 m/s (current/voltage output) or 0~100 m/s (RS485), an accuracy of ±(0.5+0.02V) m/s, a resolution of 0.1 m/s, and an IP65 protection rating.

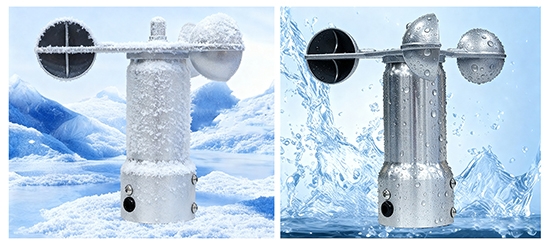

Feature

• High protection rating: Effectively resists the effects of extreme weather such as dusty, high-humidity, high-salt-spray, extreme cold, storms, and hail, maintaining stable operation even under harsh climatic conditions.

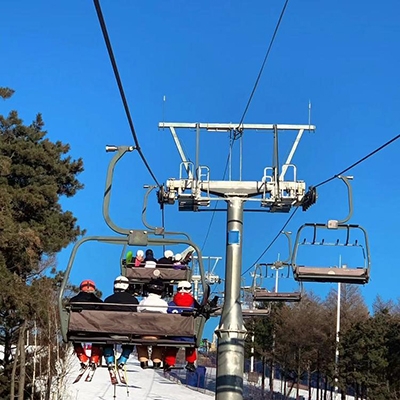

• Aluminum Alloy Housing: The high-strength aluminum alloy housing is robust and durable, suitable for long-term monitoring in applications such as cranes, chairlifts, ski lifts, and cable cars.
• Waterproof Aviation Connector: Utilizing a waterproof and dustproof aviation connector, the connection is reliable, has strong anti-interference capabilities, and facilitates easier maintenance.

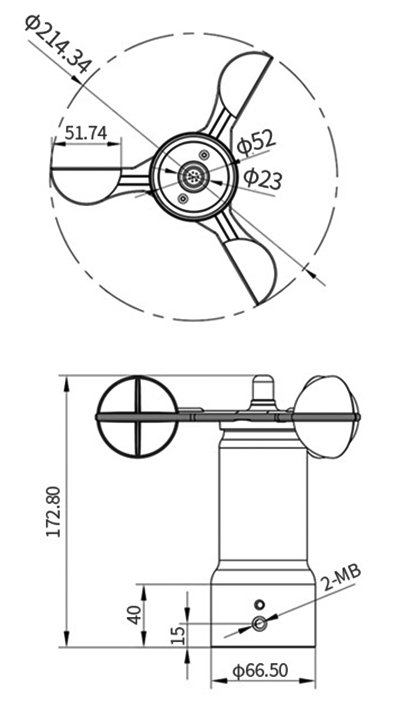

Dimension (Unit: mm)

Wiring Diagram

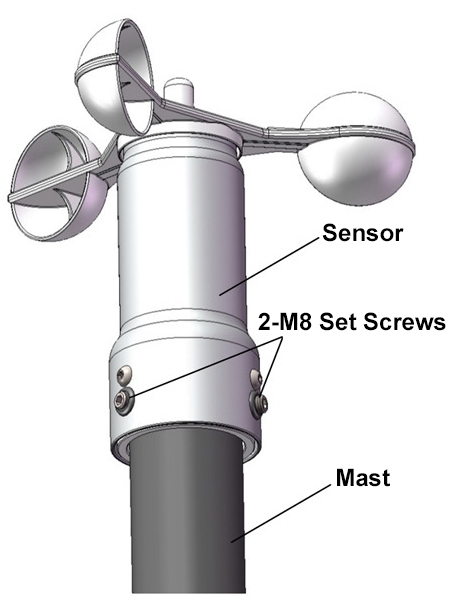

Detail

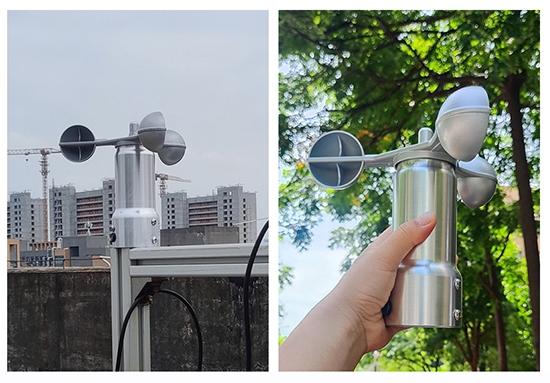

Use Case
