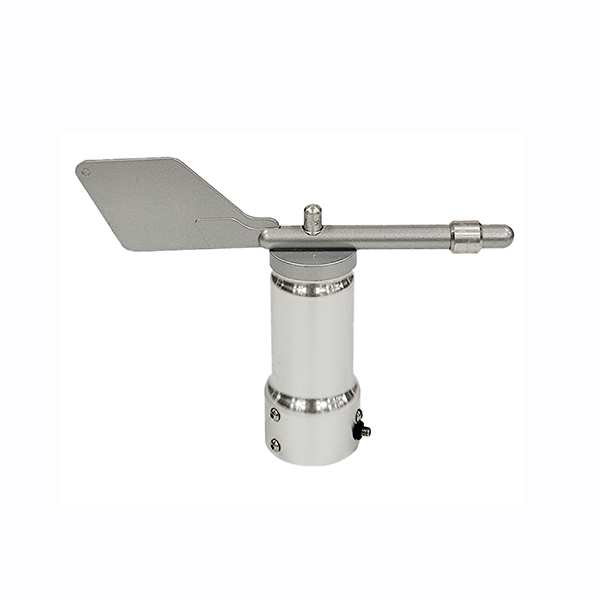

Heated Wind Vane Sensor, RS485 Output, 0~359°

Heated wind direction sensor can measure wind direction in real time and output a stable linear signal. The wind direction blades have built-in heating components and a special sealed bearing design, maintaining sensitivity and reliability in extreme environments such as low temperatures and freezing conditions. The all-metal body undergoes a special process, providing excellent UV and corrosion resistance, and can withstand harsh weather conditions such as dust, high humidity, high salt spray, extreme cold, storms, and hail. SUCH wind vane sensor features a 0~359° measurement range, ±3° accuracy, 1° resolution, and IP65 protection rating, making it suitable for applications such as wind power optimization, crane and cableway monitoring, ski lifts, meteorological and environmental monitoring stations, and research institutions.

Feature

• High Protection: Built to withstand dust, high humidity, salt spray, extreme cold, storms, and hail, ensuring stable operation even under harsh weather conditions.
• High-Strength Aluminum Alloy Housing: Durable aluminum alloy construction provides long service life and is well-suited for demanding applications such as cranes, mountain chairlifts, ski lifts, and cableway monitoring.
• Waterproof Aviation Connector: Features a waterproof and dustproof aviation plug with stable connection, strong anti-interference performance, and easy maintenance for reliable long-term use.

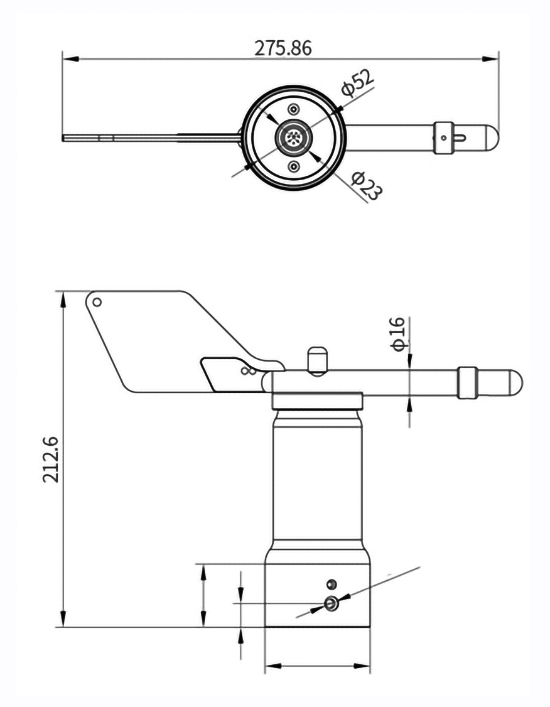

Dimension (Unit: mm)

Wiring Diagram

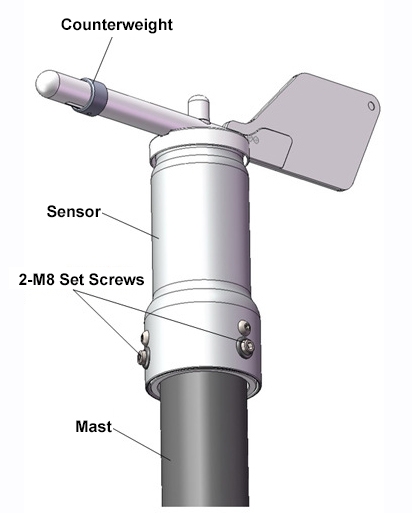

Detail

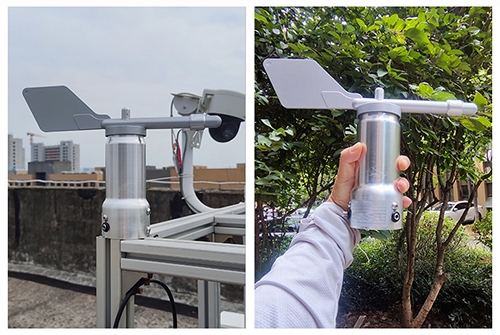

Use Case
