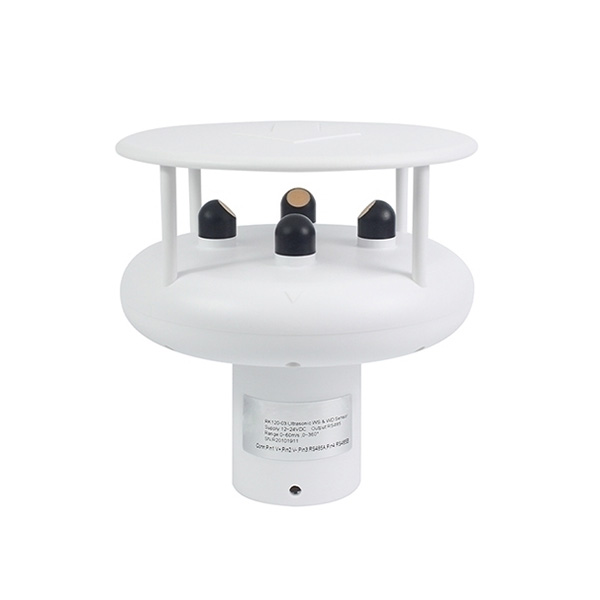

Ultrasonic Anemometer Sensor for Wind Speed, 60m/s

Ultrasonic anemometer features a fully digital design, eliminating mechanical wear. It can quickly and accurately measure wind speeds of 0-60 m/s or 0-45 m/s and wind direction of 0–360°, with a resolution of up to 0.01 m/s. SUCH ultrasonic anemometer sensor supports multiple output methods including RS232, RS485, 4-20 mA, and 0-5 V, and operates on a DC 12-24V power supply. The wind sensor housing is made of ASA material and has an IP66 protection rating, allowing for long-term stable operation in environments ranging from -40 to 80°C. It is widely used in weather stations, environmental monitoring, marine observation, airports, ports, and industrial and agricultural applications.

Feature

• Built-in signal processing unit: It can output multiple corresponding signals according to user needs, offering strong adaptability.
• Compact structure, no mechanical parts: Lightweight, high strength, accurate and stable measurement, and low maintenance.
• Adaptable to complex climatic environments: The surface is treated with anti-corrosion coating, providing strong anti-interference performance, and equipped with automatic heating and anti-freezing functions.

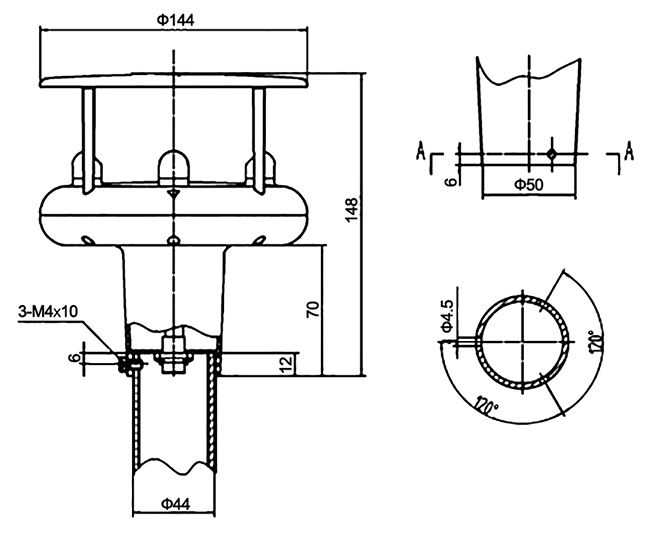

Dimension (Unit: mm)

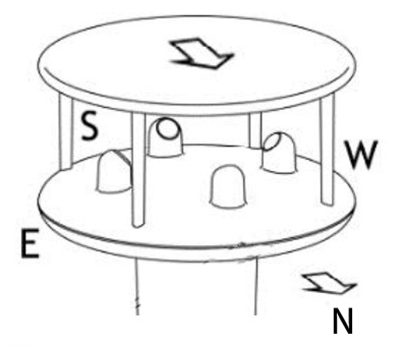

Installation Diagram

There is rotary adjustable mounting holes at the bottom of the ultrasonic anemometer.

When installing the wind sensor, make sure the indicator on anemometer comply with the geographic north.
