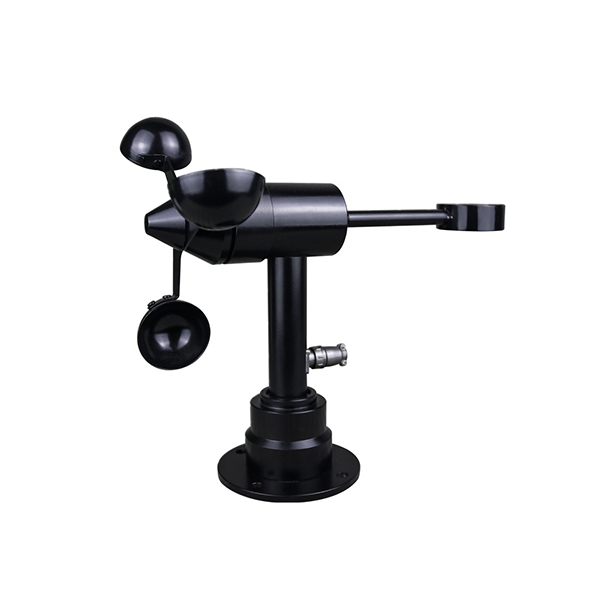

Crane Anemometer Sensor for Weather Monitoring, 0.3~60m/s

Factory price crane anemometer (pendulum type) is a wind speed monitoring device for tracked cranes, truck cranes, and other equipment operating outdoors in environments with swaying and bumps. It has a range of 0.3~60 m/s and can be customized, with multiple output methods such as 4-20mA/1-5V/Pulse/RS485. SUCH pendulum type wind speed sensor can start up to wind speeds as low as 0.3 m/s and achieve an accuracy of ±5%. It can work stably under harsh conditions of -20℃ to 80℃ and humidity ≤95%, effectively ensuring the safe operation of lifting equipment in complex environments.

Note: Wind sensors can be customized with parameters and functions according to different customer needs and application areas. This price is for reference only. Please contact customer service for specific customization details.

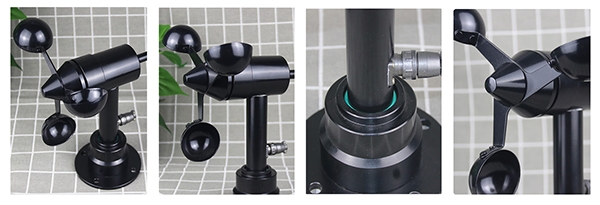

Feature

• Aluminum alloy powder-coated housing: Surface powder coating provides excellent corrosion resistance and high-temperature resistance.
• High-quality bearings: Low resistance, low starting wind speed, and sensitive rotation.
• Reasonable structural design: High precision, aesthetically pleasing, easy installation, flexible pendulum swing, effectively maintaining the horizontal rotation of the wind cup.
• High precision and wide measuring range: High measurement accuracy, large measuring range, and excellent long-term stability.
• Excellent signal performance: Good data signal linearity, long transmission distance, and strong resistance to external interference.

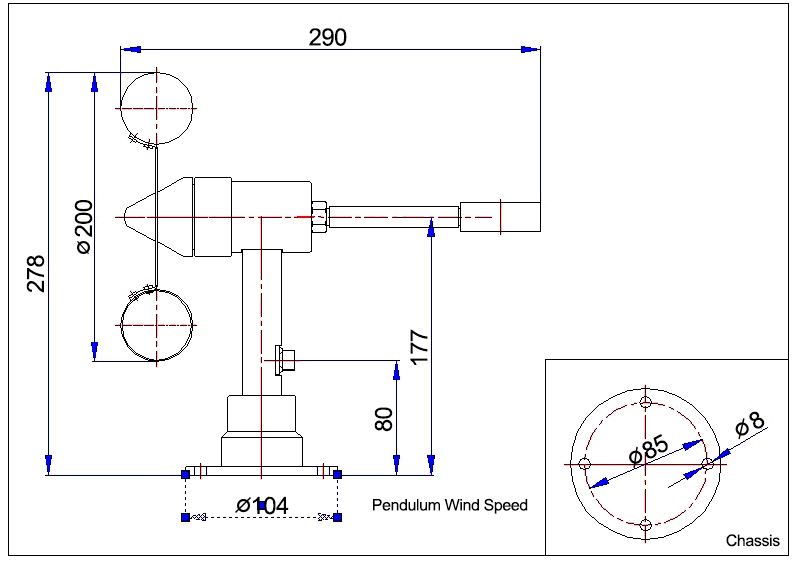

Dimension (Unit: mm)

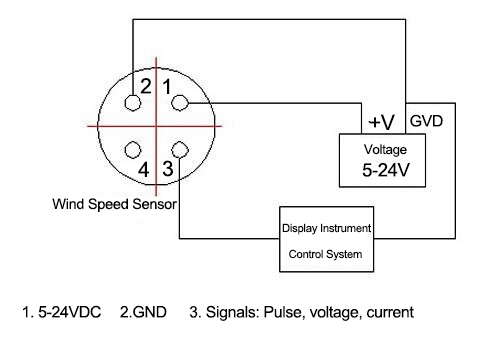

Wiring Diagram
