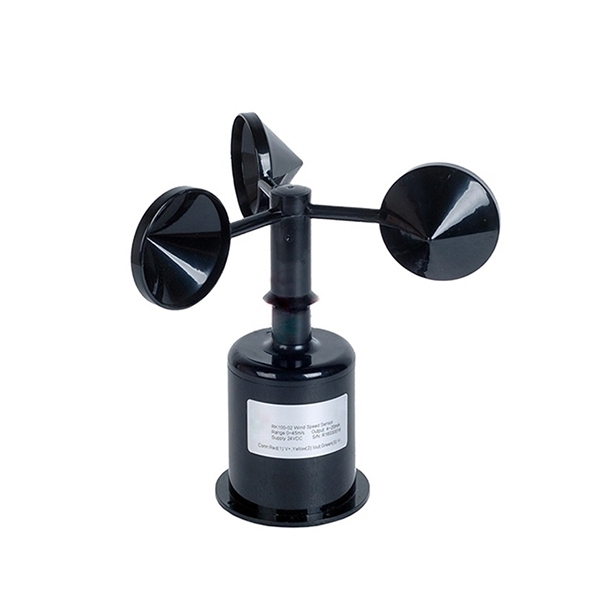

Three Cup Anemometer Sensor for Measuring Wind Speed

Three-cup anemometer can measure wind speeds from 0 to 45 m/s, with a maximum wind speed of 50 m/s. It offers multiple output signals, including pulse, 4-20mA, 0-5V, and RS-485, and is powered by DC 5-24V or 12-24V. SUCH wind sensor utilizes electromagnetic induction, and its output signal is linearly related to the horizontal wind speed. It features high measurement accuracy, sensitive response, robust construction, and a wide operating temperature range (-40 to +50℃), making it widely used in meteorology, oceanography, environmental monitoring, airports, ports, laboratories, and industrial and agricultural fields.

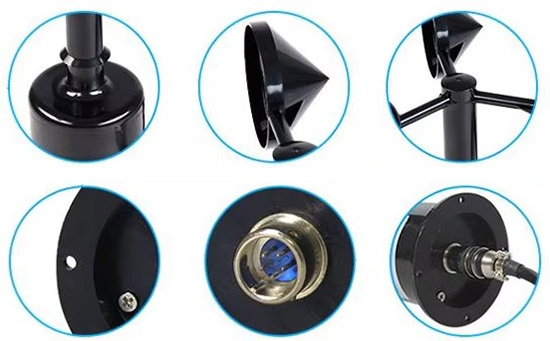

Feature

• High-sensitivity 3-cup design for accurate wind speed measurement.
• Carbon fiber wind cups with high strength and low starting threshold.
• Built-in signal processing unit, integrated and waterproof (IP65) structure.
• Flange installation with 5-pin waterproof connector and bottom wiring.
• Suitable for meteorology, marine, environmental monitoring, and industrial/agricultural applications.

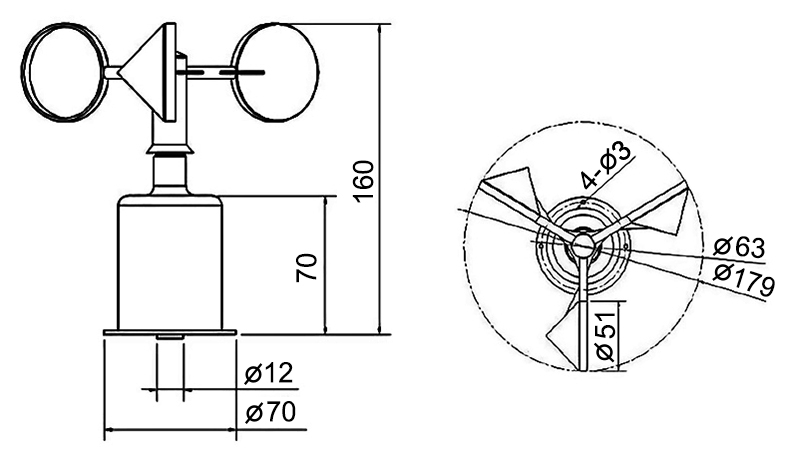

Dimension (Unit: mm)

3-Cup Anemometer Output Characteristics

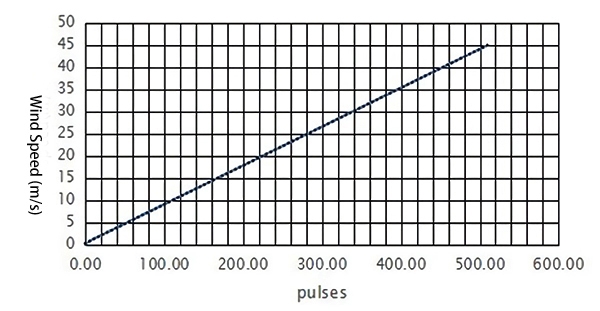

• Pulses Output

Characteristic transfer function:

F = 0, V = 0

F ≠ 0, V = 0.1 + 0.0875 × F

(where V = wind speed (m/s), F = output frequency (Hz)

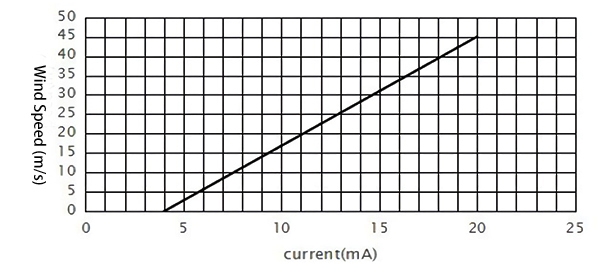

• Current Output

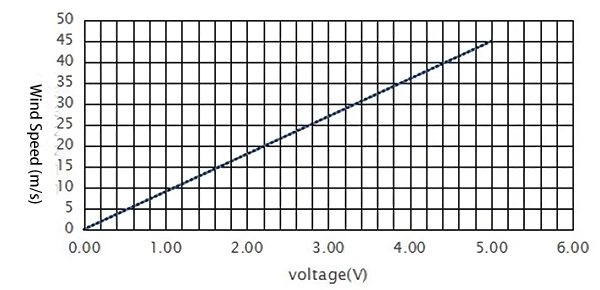

• Voltage Output



• RS485 Output

If the transmission distance is over 100m, please add a 120Ω terminal matching resistances on the front end and back end of bus interface respectively. See the modbus communication protocol specification.
