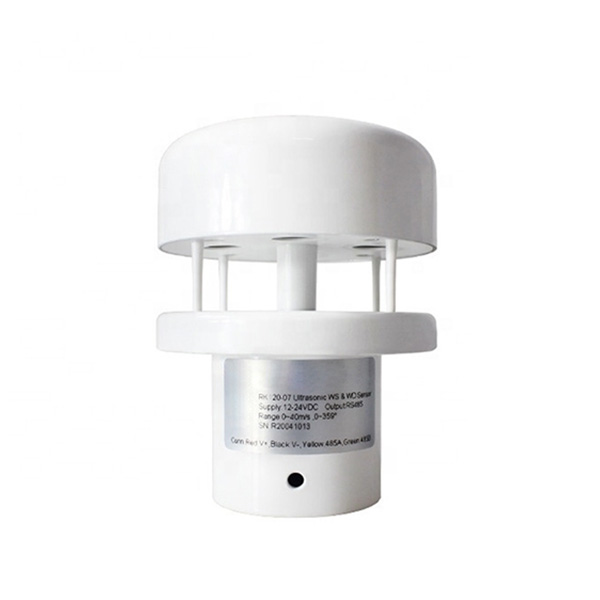

Ultrasonic Wind Speed and Direction Sensor, 40m/s

Ultrasonic wind speed and direction sensor for sale online. Utilizing the ultrasonic time-of-flight principle, it can measure wind speed from 0 to 40 m/s and wind direction from 0 to 360° with an accuracy of ±3%. SUCH anemometer sensor is compact, small in size, has no mechanical parts, requires no maintenance, and is easy to install. It supports multiple signal outputs including 4-20mA, RS232, RS485, and SDI-12, and is powered by DC 12-24V with an IP65 protection rating. Its low-power design makes it particularly suitable for solar or battery-powered environments, and it can operate stably within a temperature range of -30℃ to +60℃, making it suitable for various outdoor meteorological monitoring applications.

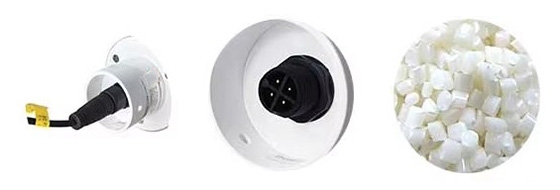

Feature

• Low power consumption: Equipped with a low-power chip, the sensor consumes only 0.2 W, making it ideal for solar-powered or battery-powered applications.
• Compact and lightweight design: No moving parts, featuring a high-strength structure for durable, stable performance with minimal maintenance.
• All-weather capability: Anti-corrosion surface treatment, strong anti-interference performance, and built-in automatic heating to prevent freezing, allowing operation in harsh weather conditions.
• Wide range of applications: Suitable for environmental monitoring, marine vessels, bridges and tunnels, solar and wind power generation, wind resource assessment, drilling platforms, automatic weather stations, agriculture, and more.

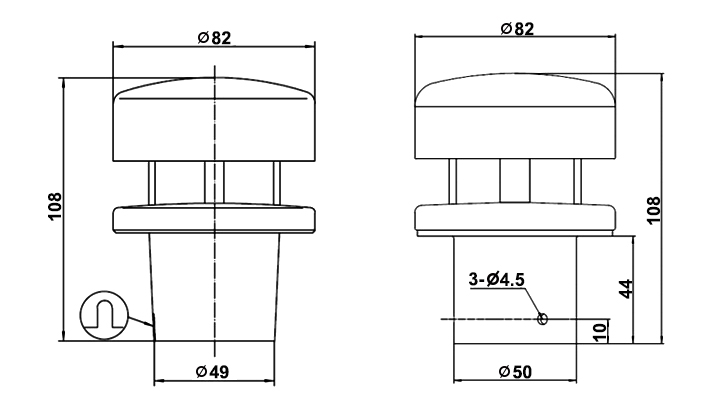

Dimension (Unit: mm)

Installation Diagram

There is rotary adjustable mounting holes at the bottom of the ultrasonic anemometer.

When installing the wind sensor, make sure the indicator on anemometer comply with the geographic north.

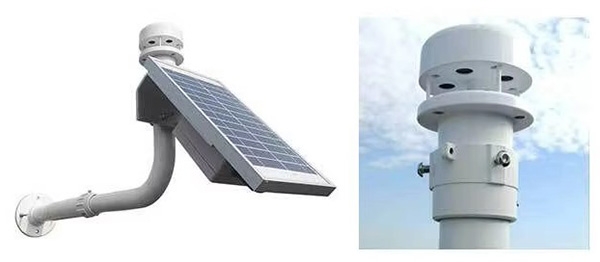

Use Case
