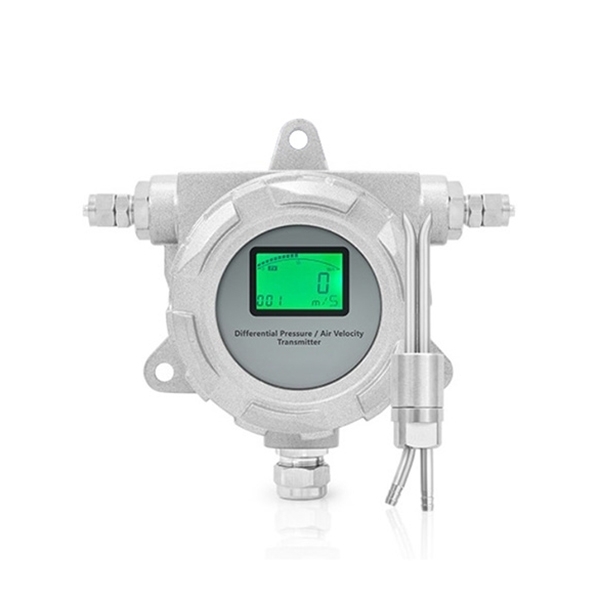

Explosion Proof Wind Speed Sensor, 0~30m/s

Explosion-proof wind speed sensor can be used for measuring air or neutral gas velocity and complies with the EX db IIC T6 Gb explosion-proof standard. It supports 4-20 mA, 0-10 VDC, and RS485 outputs, features an IP65 protection rating and an LCD digital display, and is widely used in petroleum, chemical, mining, and gas transportation industries. SUCH wind speed sensor converts gas flow velocity into an electrical signal for transmission to control systems, and its wind speed range can be easily adjusted on site using the zero-point calibration button.

Feature

• High-precision MEMS sensing core: Employs a high-precision MEMS micro-pressure core, ensuring high measurement accuracy and a wide operating temperature range.
• LCD digital display: Equipped with a high-definition LCD digital display for easy real-time viewing of wind speed data.
• Adjustable range & zero-point button: Provides a field zero-point button and adjustable wind speed range to meet diverse application needs.
• High stability & long service life: High stability, long service life, and reduced maintenance costs.
• IP65 protective housing: Features an IP65-rated protective housing, providing excellent dust and water resistance, suitable for harsh industrial environments.

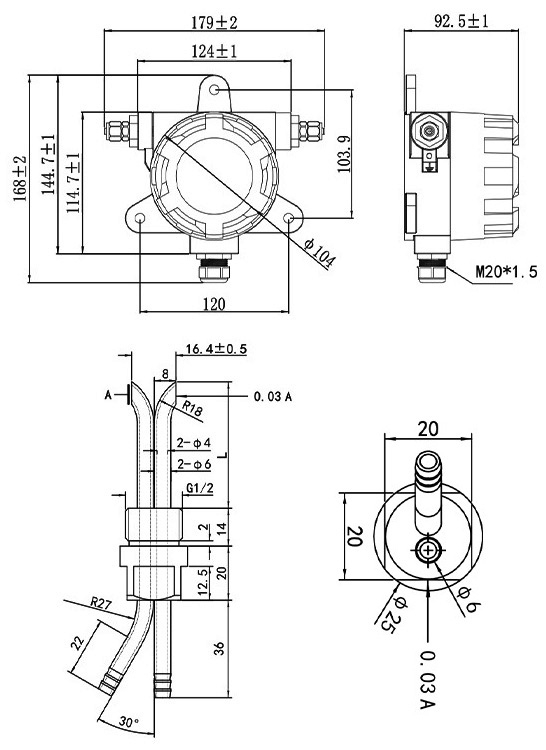

Dimension (Unit: mm)

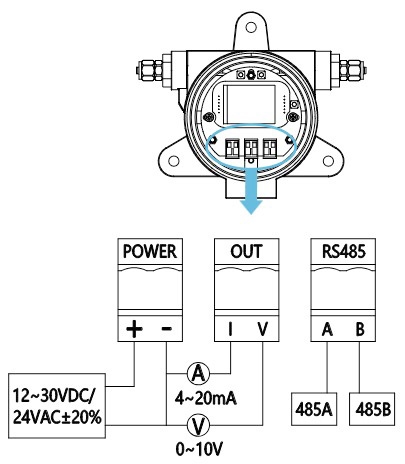

Wiring Diagram

Note: Wiring should be done by qualified technicians. When wiring, the transmitter must stop supplying power.

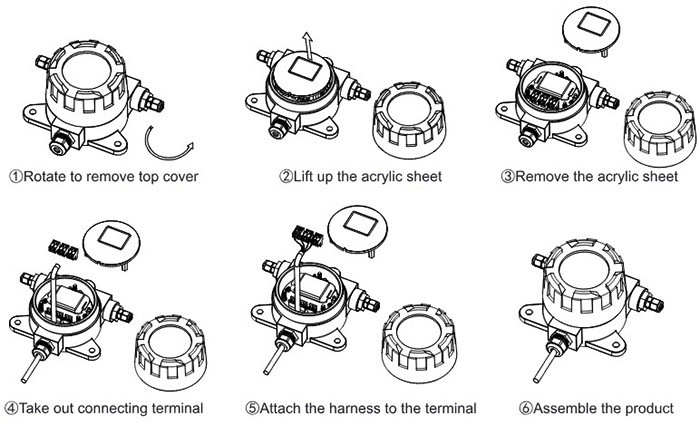

Installation and Wiring Steps

Note: Wiring wire diameter D must meet: 7mm≤D≤12mm

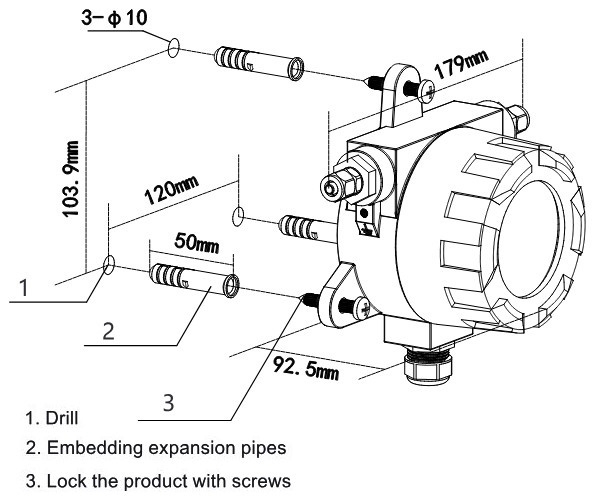

Installation Diagram
