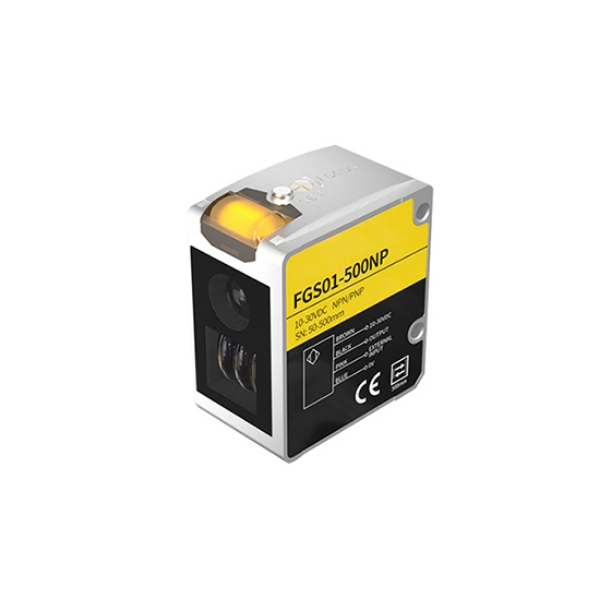

Long Distance Color Sensor, 30-70mm, 50-500mm

Industrial color sensors feature high sensitivity and long-distance detection, supporting two detection ranges: 30-70mm and 50-500mm. Equipped with a high-brightness white LED light source, they accurately identify color differences and color mark positions on various targets. With a response time as fast as 200µs and support for NPN/PNP and NO/NC switching, they flexibly adapt to multiple industrial control systems.

Feature

• Long distance color sensors offer detection ranges of 30-70mm and 50-500mm with selectable specifications and response times as fast as 200μs.
• Adjustable spot size ensures stable detection despite distance variations and angular tilts, accommodating fluctuations within the same workpiece with optional tuning.
• Multiple detection modes with adjustable calibration to accommodate color variations between different workpieces.
• Accurate detection even with minimal light intensity changes or slight color differences, unaffected by workpiece material or tilt angle.
• Equipped with a large indicator light visible from multiple angles, enabling instant confirmation of the color sensor's ON/OFF status.

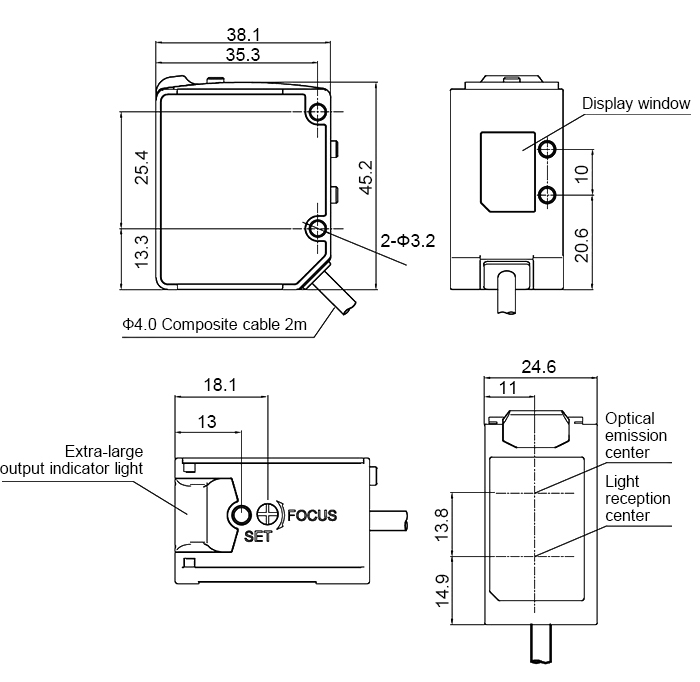

Dimension (unit: mm)

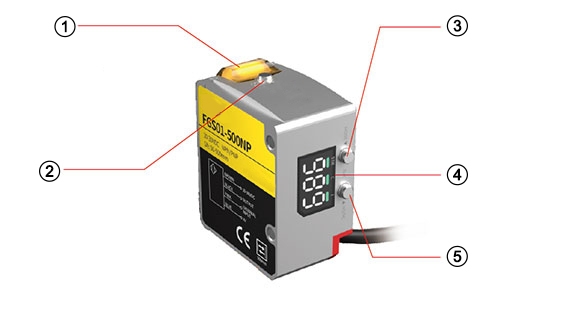

Panel Instruction

1. Indicator Lights: Orange: Output ON; Off: Output OFF; Red (Flashing): Error
2. SET Button: Operation methods vary depending on sensitivity adjustment method
3. [▼] Button: Change setting value in under 1s; Press for 3 seconds or longer to enter settings screen
4. Mode: STB: Green light on when light is available; C: Green light on in C/C+I mode; I: Green light on when C+I/Super I mode is active
5. [▲] Button: Press for 1 second or less to change setting value; Press for 3 seconds or longer to switch NO/NC

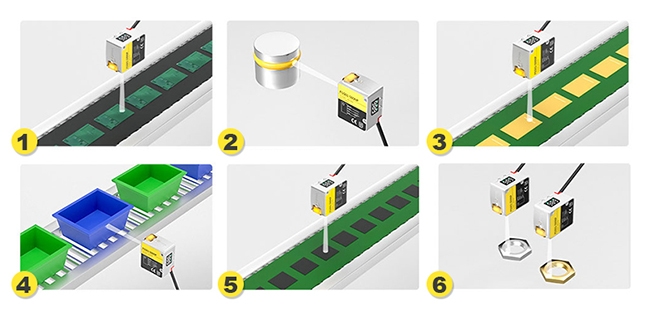

Usage Cases

1. Presence of Hand-Engraved Markings: Residual characters or unstable hand-engraved markings caused by fluctuations can be reliably detected by adding tuning via Master.
2. Component Assembly Verification: Assembly confirmation with minimal height differences can be accurately detected based on color changes.
3. Adhesive Detection: Presence of liquids with minimal light intensity variation can be precisely detected through color changes.
4. Detection of Conveyor Box Color: Short-term stoppages caused by aging, contamination, or individual variations can be mitigated by adding tuning using the Master.
5. Thin Sheet Presence: Thin workpieces can be stably detected and are less susceptible to displacement.
6. Metal Color Discrimination: Workpieces with minimal light intensity differences, such as gold and silver, can be accurately detected.

Wiring Guide

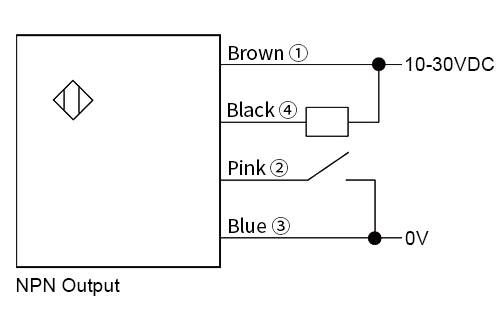

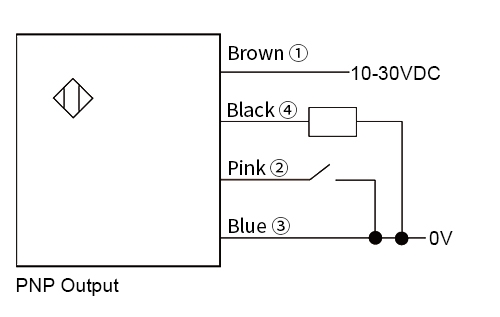

Wiring Diagram
