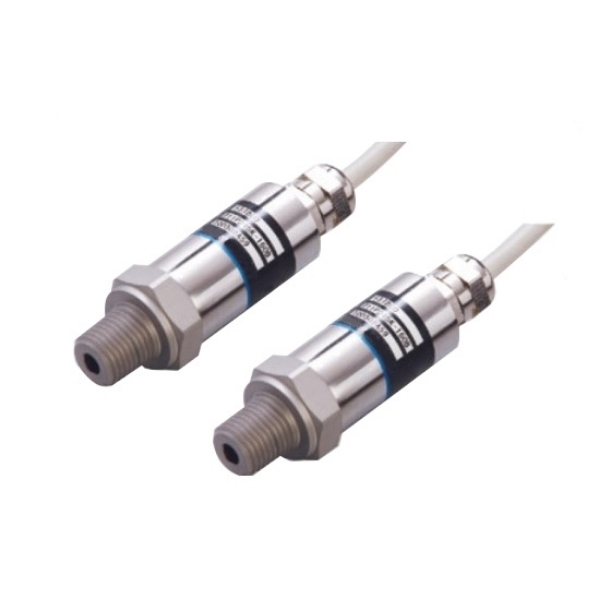

Low Pressure Transmitter, Stainless Steel, -1~6 bar

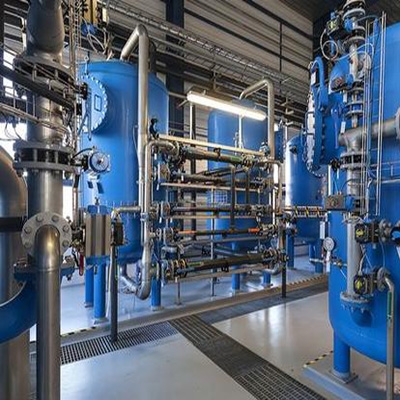

Low-pressure transmitter is suitable for measuring pressure in the -1 to 6 bar (-100 to 600 kPa) range and supports multiple output modes: 4-20 mA, 0.5-4.5 VDC, 0-5 VDC, and 0-10 VDC. SUCH low-pressure sensor features an IP65 high protection rating and multiple interface options, including M20*1.5, G1/4, and NPT1/4. The pressure chamber is made of stainless steel, making it reliable and durable. It is widely used in industrial process control, machinery manufacturing, hydraulic and pneumatic systems, water treatment, and pumping stations, enabling real-time monitoring and improving efficiency and safety.

Feature

• It is easy to install and adaptable to a variety of application environments.
• Built-in surge protection and reverse polarity protection ensure circuit safety and stability.
• It features efficient lightning protection and effectively resists RF and electromagnetic interference
• It utilizes digital temperature compensation technology to ensure stable operation over a wide temperature range.
• The stainless-steel construction provides excellent corrosion resistance and media compatibility.
• It offers high accuracy and high-frequency response, maintaining stable performance even after long-term use.

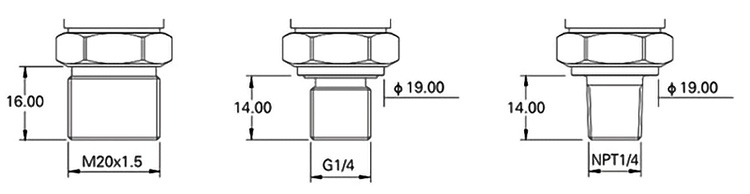

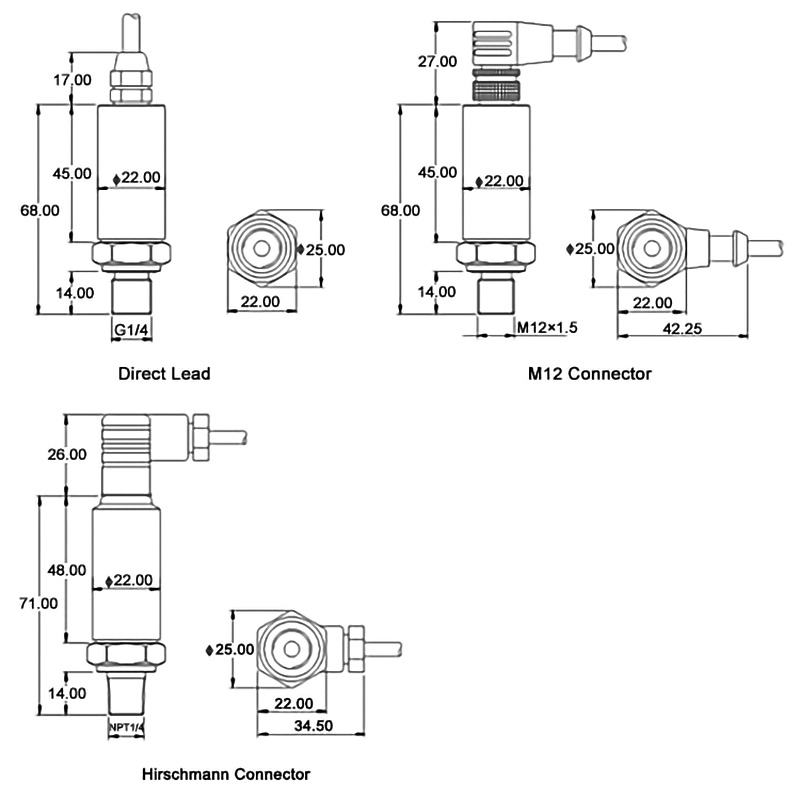

Dimensions (Unit: mm)

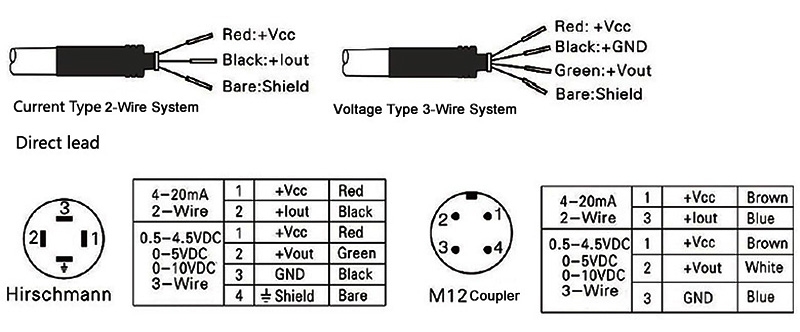

Wiring Diagram
