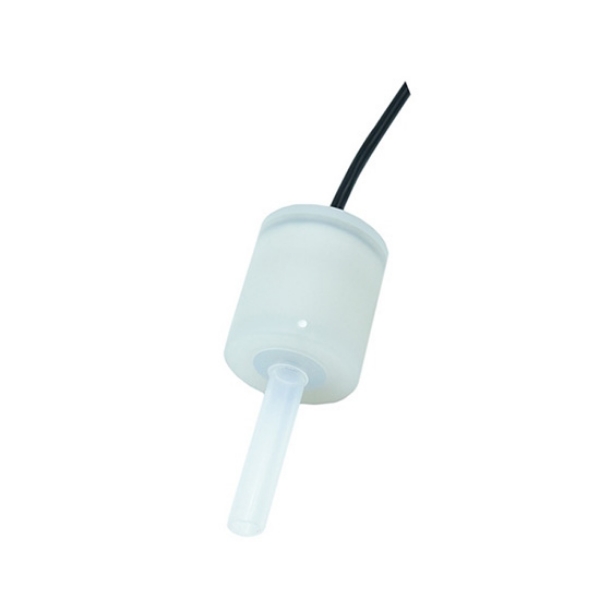

Anti-corrosion Pressure Transmitter for Corrosive Liquid

SKU: SUCH-PRES-PA708

$906.47

● Measuring range -100 to 300kPa (customizable) ● 4-20mA output signal (customizable) ● Accuracy 0.5% FS (customizable) ● Operating temperature -10℃~85℃

Measuring Range *
Output Signal *
Power Supply *
Electrical Connection *
Thread of Pressure Connection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Anti-corrosion pressure transmitter measures the pressure of corrosive gases and liquids. It offers a -100~300 kPa range (customizable), a standard 4-20mA output (customizable), and 0.5%FS accuracy. Available in a variety of corrosion-resistant materials, including PP, PVDF, PTFE, PFA, and FFKM, and features a waterproof, breathable cable. SUCH pressure sensor is corrosion-resistant, moisture-proof, leak-proof, tensile-resistant, and durable, and can operate in environments ranging from -10℃ to 85℃. It supports a variety of electrical connections and threaded connector types, allowing for flexible customization of the range, output, and connection method.

Feature

Waterproof and breathable cable, featuring excellent corrosion resistance, moisture resistance, leak resistance, and tensile strength, is durable and reliable.
A variety of corrosion-resistant materials are available, suitable for a variety of corrosive media.
The threaded connection design allows for easy installation and can be flexibly customized according to user needs.

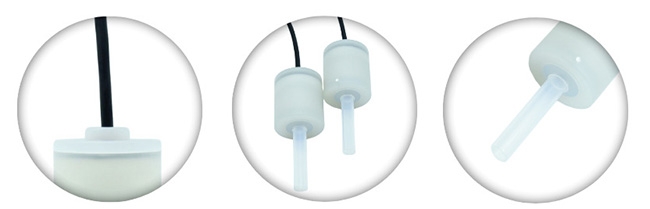

Anti corrosion pressure transmitter feature

Dimension (Unit: mm)

Anti corrosion pressure transmitter dimensions

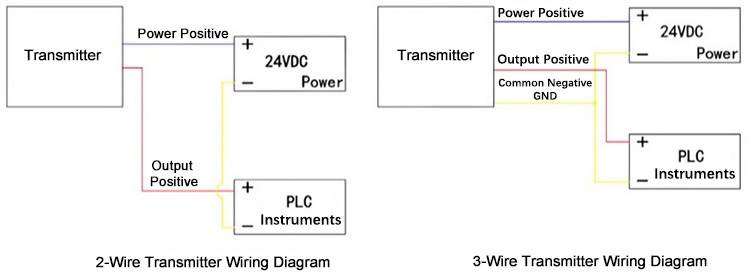

Wiring Diagram

Anti corrosion pressure transmitter wiring diagram

Specs

Range	-100~300kPa (other ranges please contact us)
Accuracy	0.5%FS (customizable)
Output	4-20mA (default), 0-5V, 1-5V, 0-10V and other customized
Power supply	5VDC, 24VDC, 9-36VDC (optional)
Process connection	G1/2, 1/2NPT, M20*1.5 (customizable)
Electrical connection	Large Hirschmann connector, direct lead (optional)
Load capacity	Current type: R=(U-8V)/0.02Ω
Temperature compensation	0~75℃
Operating temperature	-10~85℃
Safe overload	150%
Ultimate overload	200%
Temperature drift	0.02%FS/℃
Long-term stability	0.2%FS/year
Wetted material	PP, PVDF, PTFE, PFA, FFKM

Application

Electroplating Technique

Pharmaceutical Industry

Semiconductor Industry

FAQ

Q1: Can the range of the anti-corrosion pressure transmitter be customized? ❯

The standard range is -100 to 300 kPa, and other ranges can be customized upon request.

Q2: What media can the anti-corrosion pressure transmitter measure? ❯

It is compatible with corrosive gases, liquids, and steam, and is widely applicable to complex media in industries such as chemical, petroleum, and pharmaceuticals.

Q3: What is the protective performance of the corrosion-resistant pressure transmitter? ❯

It features a sealed structure and waterproof, breathable cable, making it waterproof, moisture-proof, and leak-proof, making it suitable for harsh environments.
