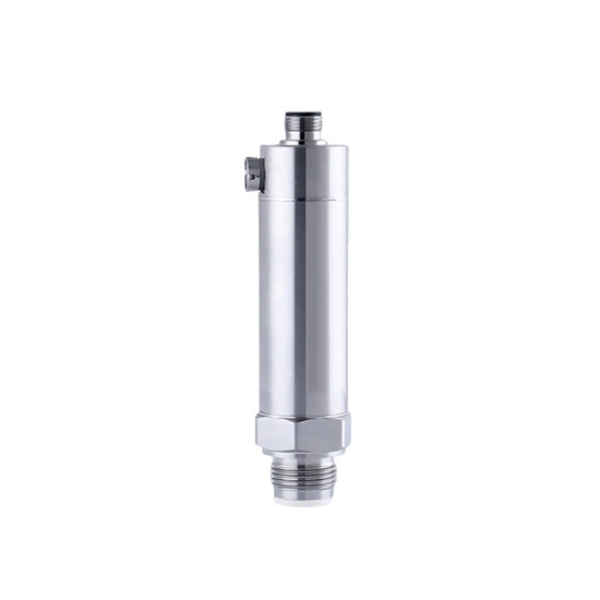

Sanitary Pressure Transmitter, Flush Diaphragm

Factory price sanitary pressure transmitter for sale online. Suitable for food safety and medical applications, the transmitter offers a range of 0.1~0~4 MPa. Made of 316L stainless steel with silicone and nitrile rubber seals, they offer high accuracy, corrosion resistance, and durability. SUCH pressure transmitter supports RS485, 4-20mA, 1-5V, 0-5V, and 0-10V outputs, withstand vibrations up to 10g, shocks up to 500g/ms, and are short-circuit and reverse polarity protected. They are suitable for media temperatures between -40℃ and 85℃.

Feature

• The sanitary pressure transmitter boasts an IP69K rating for long-term stable operation in extreme environments.
• It features a built-in high-performance smart chip and supports a wide range of power supply voltages, ensuring reliable operation.
• The transmitter's compact design makes it easy to clean and install, making it suitable for applications with limited space.
• The frequency cutoff design provides strong anti-interference and lightning protection, ensuring stable data transmission. The sophisticated circuit design features current limiting, voltage limiting, and reverse polarity protection, enhancing safety and durability.
• The transducer's high accuracy and fast response make it suitable for applications requiring stringent real-time data.

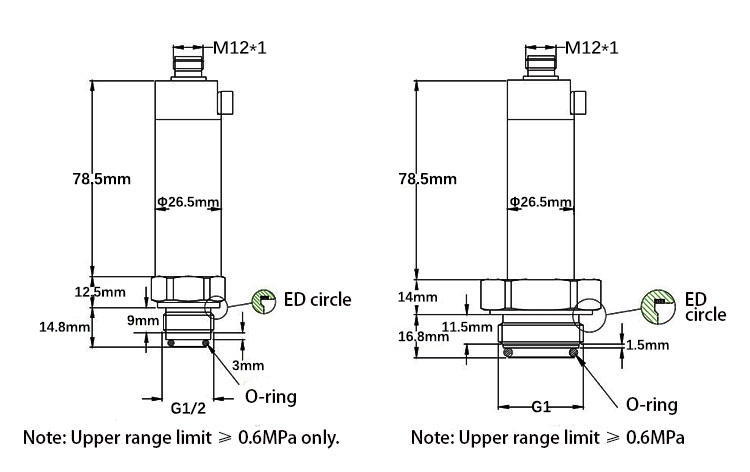

Dimension (Unit: mm)

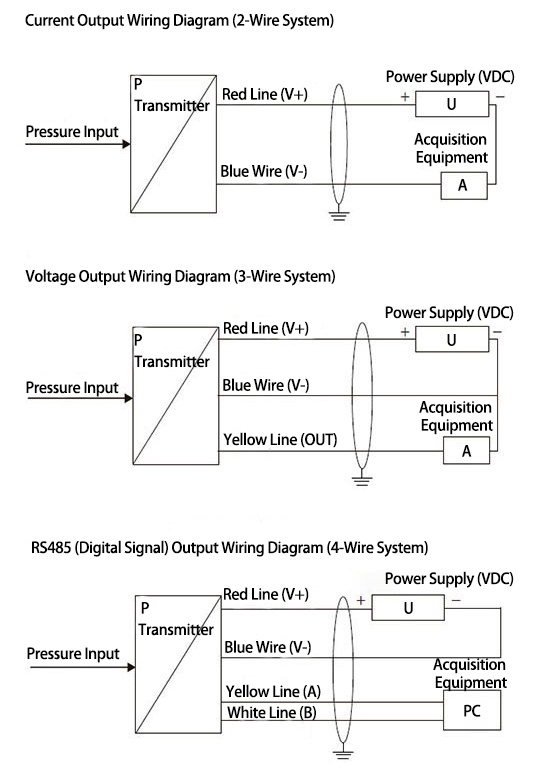

Wiring Diagram

Note:

Circles represent shielded wires, and all marked grounding points must be effectively grounded. It is recommended to use shielded twisted signal cable. In order to avoid ground loops, the shielding layer uses a single-ended ground, in the pressure transmitter end of the insulation floating ground, and in the control terminal ground.

The transmitter shell is grounded by default, so the field equipment needs to be effectively grounded, if the field equipment can not be grounded, it is necessary to make the indicated grounding point effectively grounded.
