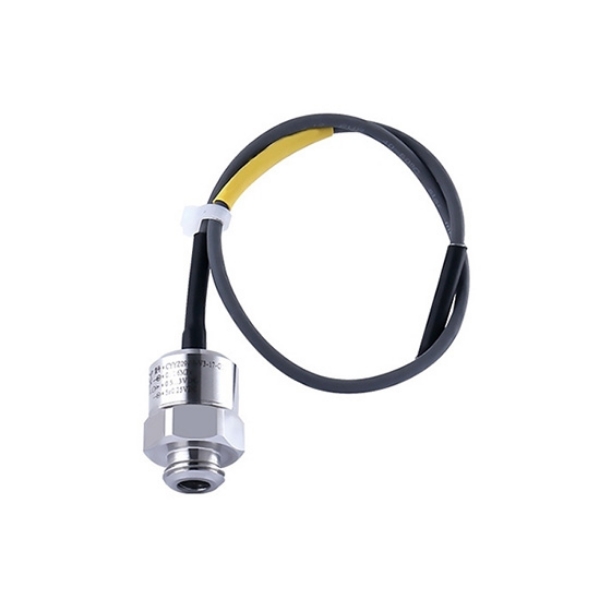

Miniature Pressure Sensor for Liquid/Air, 0-2.5/4/6/10MPa

SKU: SUCH-PRES-CYZ96

$235.18

● Measurement range 0-2.5/4/6/10 MPa ● Output signal 0.5-3 VDC ● Temperature compensation range -40℃ to +85℃ ● 304 stainless steel housing, IP66 rating

Measuring Range *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Miniature pressure sensor utilizes a high-precision diffused silicon core and built-in amplifier circuitry, outputting a standard 0.5-3VDC analog signal. Its measuring range covers 0-2.5/4/6/10MPa, with an accuracy of up to 0.25%FS. SUCH micro pressure sensor also features temperature compensation and a 20Hz fast response capability. Its compact structure, combined with its IP66 protection rating and 500g/1ms shock resistance, ensures its stability and reliability in dusty, humid, and dynamic environments, making it widely applicable to industrial equipment and engineering machinery.

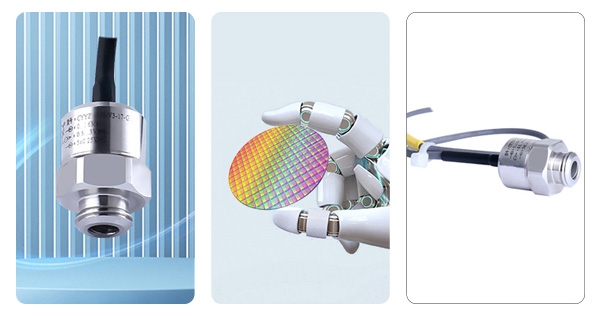

Feature

The 304 stainless steel housing is corrosion-resistant and suitable for long-term use in harsh environments.
Imported chips minimize temperature drift, ensuring more stable and reliable sensor output.
It supports a wide temperature compensation range of -40°C to 85°C, meeting diverse operating conditions.
A built-in intelligent temperature compensation algorithm effectively corrects signal drift to ensure measurement accuracy.

Miniature pressure sensor feature

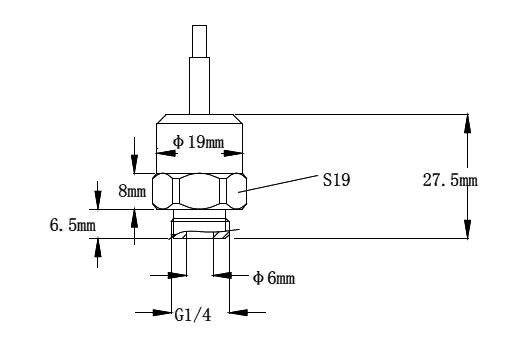

Dimension (Unit: mm)

Miniature pressure sensor dimension

Wiring Diagram

Miniature pressure sensor wiring

Specs

Measuring Media	Liquid or gas (compatible with contact material)
Pressure Range	0-2.5/4/6/10MPa (optional)
Pressure Type	Sealing Pressure (Zeroed at absolute pressure 101.3kPa)
Output Signal	0.5~3VDC
Power Supply Range	5 (±0.25)VDC
Medium Temperature	-40~85°C
Connection Time	20ms
Response Frequency	Analog signal output ≤20Hz
Accuracy Class	0.25%FS (including repeatability≤0.02%FS, hysteresis≤0.02%FS)
Accuracy Class	Reference conditions temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH
Temperature Compensation	-40~85°C
Stability	±0.2%FS/year
Temperature Drift	±0.01%FS/°C
Protection Class	IP66
Maximum Power	≤0.008Us (W) Note: Us = supply voltage.
Load Characteristics	Voltage type >10kQ
Resolutions	0.02%FS
Ambient Temperature	-40~85℃ (no condensation and no dew)
Diaphragm	316L stainless steel (in contact with the measured medium)
Process Connection	304 stainless steel (in contact with the measured medium)
Enclosure	304 stainless steel
Cable	Φ 3.2 polyurethane shielded cable
Vibration Resistance	10g (20-2000Hz)
Shock Resistance	500g/1ms
Reverse Polarity Protection	No damage, but not operational
Insulation Resistance	>100MΩ, 500VDC
Dielectric Strength	500VAC
Durability	1*10⁶ cycles (lower range to upper range cycles)
Net Weight	≈30g, cable ≈15g/m
