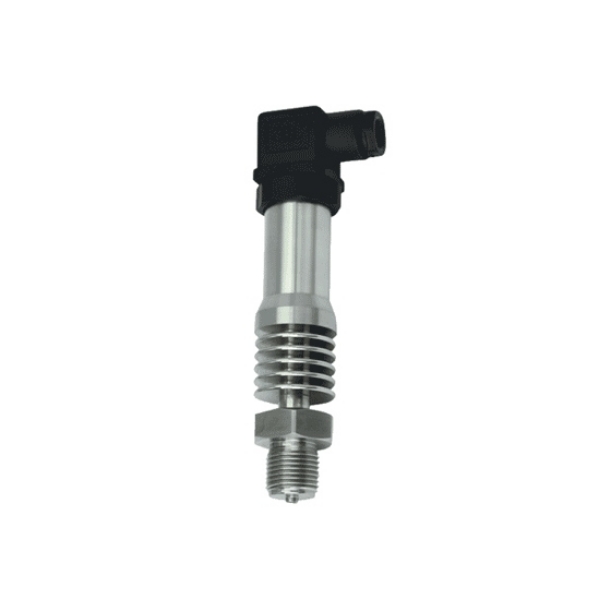

High Temperature Pressure Transducer, Stainless Steel

SKU: SUCH-PRES-PT25

$214.36

● Pressure range 0-60MPa (optional) ● Output signal options 4-20mA/0-5V/1-5V/0-10V/RS485 ● Power supply DC 12V/DC 24V ● High temperature of -20℃~350℃

Measuring Range *
Power Supply *
Output Signal *
Electrical Connection *
Thread of Pressure Connection *
Quantity of Cooling Fins *
Pressure Type *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH high-temperature pressure transducer for sale online. The high-temperature stainless steel pressure sensor utilizes a high-temperature-resistant sensor and heat sink design, ensuring long-term stable operation in environments ranging from -20℃ to 350℃. It has a measurement range of 0~60 MPa and supports multiple signal outputs, including 4-20mA, 0-5V, 1-5V, 0-10V, and RS485. It operates with a DC 12V/24V power supply and is constructed from 304 stainless steel (316L optional). It is widely used for measuring and controlling steam, fuel oil, and high-temperature liquid pressures.

Feature

High accuracy and wide measuring range for diverse applications.
Efficient heat dissipation design, resistant to medium-high temperature media.
Multiple interfaces and output options for strong compatibility and flexible use.

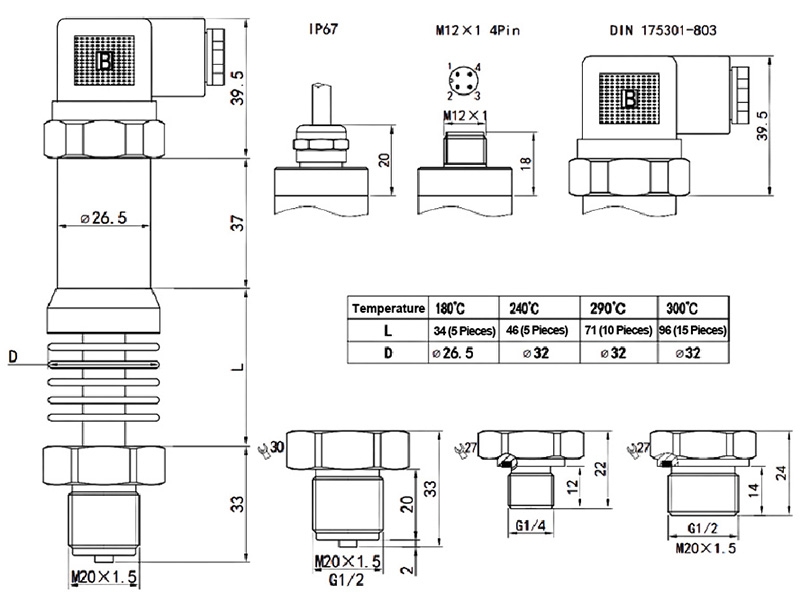

Dimension (Unit: mm)

High temperature pressure transducer dimension

Wiring Diagram

High temperature pressure transducer wiring diagram

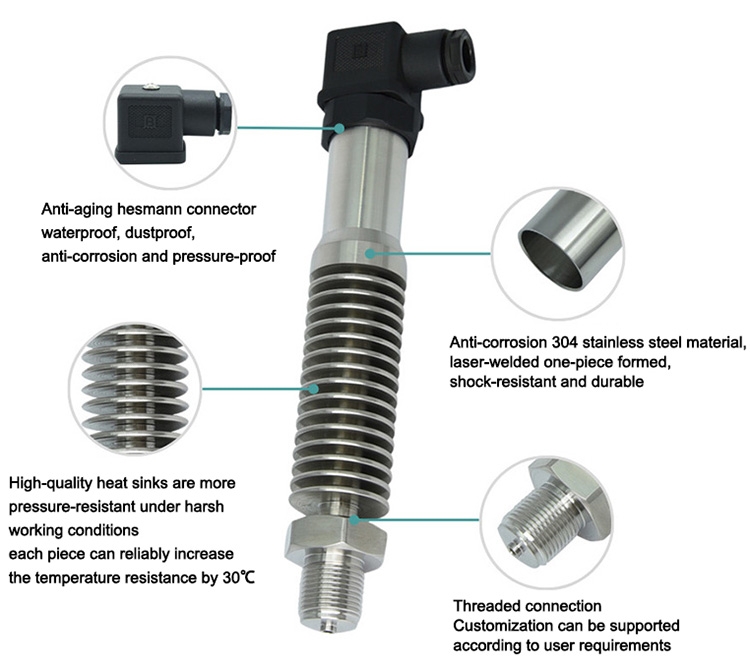

Detail

High temperature pressure transducer detail

Specs

Pressure Range (Optional)	0-60MPa
Accuracy	0.25%FS, 0.5%FS
Output Signal(Optional)	4-20mA, 0-5V, 1-5V, 0-10V, RS485
Power Supply (Optional)	DC 12V, DC 24V
Process Connector (Optional)	G1/4, G1/2, 1/4NPT, 1/2NPT, M20*1.5
Electrical Connector (Optional)	DIN Connector Type, M12 Circular Connector Type, Direct Lead Wire Type
Loading Capacity	Current Type: R=(U-8V)/0.02
Temperature Compensation	0-100℃
Working Temperature	-20-150℃, -20-350℃
Safety Overload	150%
Extreme Overload	200%
Temperature Drift	0.02%FS/℃
Long Term Stability	0.2%FS/year
Hold Liquid Material	304 SS (Default), 316L SS (Contact Us)

Application

Boiler Pressure Control

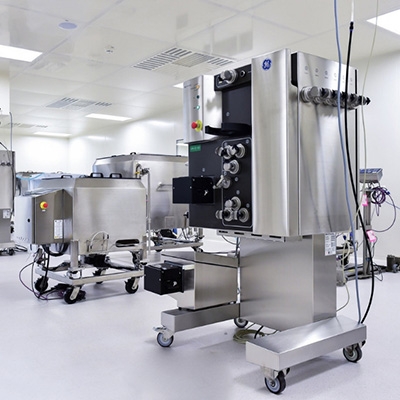

Steam Pressure Measurement

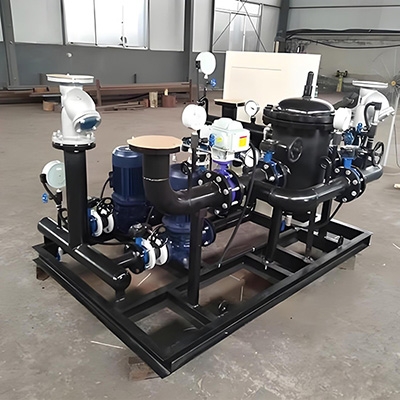

Thermal Power Unit

FAQ

Q1: What is the operating temperature range of this pressure transducer? ❯

The sensor can operate stably in high-temperature environments ranging from -20°C to 350°C.

Q2: What material is this high-temperature pressure transducer made of? ❯

Default material is 304 stainless steel, but 316L stainless steel can be customized upon request.

Q3: What applications are suitable for this pressure transducer? ❯

Widely used in medium and high temperature pressure measurement and control fields such as steam, fuel oil, and high temperature liquids.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Felix | Date: 4/30/2026 2:12 AM

Handles the heat way better than expected

Was a bit skeptical about using this on our 150°C steam lines, but so far so good. This High Temperature Pressure Transducer is a beast. The stainless steel housing isn’t just for show—it’s actually holding up against the constant heat cycles. Connected the 4-20mA to our PLC and the signal is clean as a whistle, no weird jitter during pressure spikes. Honestly, for this price, it saved my budget compared to the big-brand transducers.
