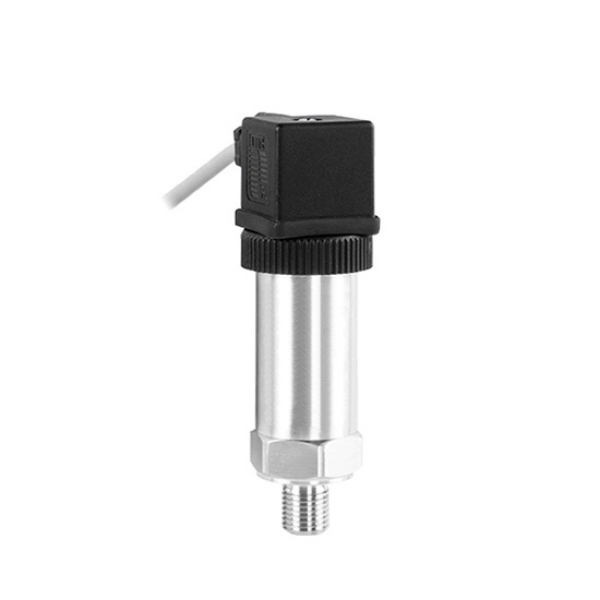

Pressure Transmitter for Hydraulic/Air/Oil, 4-20mA/0-10V/RS485

SKU: SUCH-PRES-P300

$121.16

● Measuring range -0.1~100 MPa (-1~1000 bar/-14~14503 psi) ● Media temperature -40~+60℃ (-40~+140℉) ● Output signal options 4-20mA/0-5V/1-5V/0-10V/ RS485 ● Protection rating IP65, response time <10ms

Measuring Range *
Output Signal *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Power Supply *
Pressure Type *
Electrical Connection *
Thread of Pressure Connection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The pressure transmitter utilizes a high-performance silicon piezoresistive core and offers selectable output signals: 4-20mA, 0-5V, 1-5V, 0-10V, and RS485. The sensor's measurement range covers -0.1~100MPa (-1~1000bar/-14~14503psi). Its media temperature range is -40 to +60°C (-40 to +140°F), making it suitable for a wide range of pressure measurement applications, including air, water, and oil. SUCH sensor achieves IP65 protection and offers flexible electrical connection options, including DIN connectors, direct cable, or M12 circular connectors, to meet diverse operating requirements.

Feature

Strong Anti-Interference Performance: The digital circuit board design offers excellent resistance to electromagnetic interference. The damping design resists transient shocks and effectively prevents overload damage.
Gas-Guided Design: The gas-guiding structure ensures a more stable zero point, ensuring more accurate and reliable measurement results.
High Precision and Long Life: The sensor has high precision, stable performance in long-term use, and longer service life.

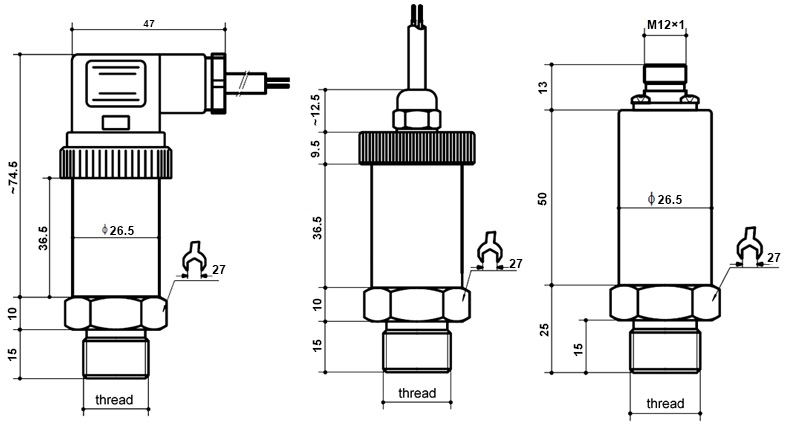

Dimension (Unit: mm)

Pressure transmitter for hydraulic air oil dimension

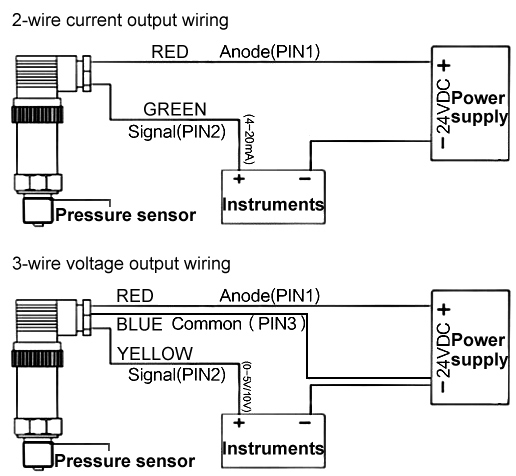

Wiring Diagram

Pressure transmitter for hydraulic air oil wiring

Specs

Measuring Range	-0.1~100MPa (-1~1000bar/-14~14503psi)
Output Signal	4-20mA, 0-5V, 1-5V, 0-10V, RS485
Accuracy	±0.5%FS, ±0.3%FS, ±1%FS (when output signal is 0-5V or 0-10V)
Power Supply	DC 12V, DC 24V, DC 12-36V
Electrical Connection	DIN connector type, direct lead wire type, M12 circular connector type
Thread of Pressure Connection	G1/4, G1/2, 1/4NPT, 1/2NPT, M141.5, M201.5
Measuring Medium	Air, water, oil (non-explosion proof area)
Pressure Type	Gauge pressure (standard), contact us for absolute pressure, sealed pressure type (note that the measuring range for these two types must ≤1MPa)
Zero temperature drift	±0.03%FS/℃
Sensitivity temperature drift	±0.03%FS/℃
Long term stability	≤0.2%FS/year
Overload pressure	200%FS
Frequency response (-3dB)	5kHz~650kHz
Response time	＜10ms
Operating temperature	-40~+80℃ (-40~+176℉)
Medium temperature	-40~+60℃ (-40~+140℉)
Protection Class	IP65

Measuring Range Conversion Table

Unit	kPa	MPa	bar	psi
Measuring range	0~5	0~0.005	0~0.05	0~0.7
	0~10	0~0.01	0~0.1	0~1.5
	0~20	0~0.02	0~0.2	0~3
	0~50	0~0.05	0~0.5	0~7
	0~100	0~0.1	0~1	0~14
	-100~0	-0.1~0	-1~0	-14~0
	-100~100	-0.1~0.1	-1~1	-14~14
	0~600	0~0.6	0~6	0~87
	0~1000	0~1	0~10	0~145
	0~1600	0~1.6	0~16	0~232
	0~2500	0~2.5	0~25	0~362
	0~6000	0~6	0~60	0~870
	0~10000	0~10	0~100	0~1450
	0~20000	0~20	0~200	0~2900
	0~30000	0~30	0~300	0~4351
	0~40000	0~40	0~400	0~5801
	0~50000	0~50	0~500	0~7252
	0~60000	0~60	0~600	0~8702
	0~100000	0~100	0~1000	0~14503

Application

Energy Management

Machinery Manufacturing

Medical Equipment

FAQ

Q1: What is the stability of a pressure sensor? ❯

The ability of a pressure sensor to maintain consistent performance over a period of use is called stability.

Q2: What factors affect the long-term stability of a pressure sensor? ❯

In addition to the sensor's structural design, this primarily depends on the operating environment, such as temperature, humidity, electromagnetic interference, vibration, and media characteristics.

Q3: Why should the operating environment be considered when selecting a pressure sensor? ❯

Different environments have different effects on sensors. It is important to select the appropriate model based on the actual operating conditions or implement protective measures to minimize environmental impacts to ensure long-term stability.
