Digital Pressure Transmitter for Hydraulic/Oil/Air

SKU: SUCH-PRES-PX300

$175.21

● Power supply options DC 12V, DC 24V, or DC 12-36V ● Output signal options 4-20mA/0-5V/1-5V/0-10V/RS485 ● Measuring range -0.1~100MPa (-1~1000bar/-14~14503psi) ● Frequency response 5kHz to 650kHz, IP65 protection rating

Measuring Range *
Power Supply *
Output Signal *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Electrical Connection *
Electrical Connection *
Electrical Connection *
Electrical Connection *
Electrical Connection *
Thread of Pressure Connection *
Pressure Type *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH digital pressure transmitter features a backlit LCD display and supports DC12V, 24V, and DC12-36V power supplies. It can output currents of 4-20mA, voltages of 0-5V/1-5V/0-10V, and RS485 signals. Compact and lightweight, it offers excellent vibration and shock resistance. The pressure sensor measurement range covers -0.1 to 100MPa (-1 to 1000bar/-14 to 14503psi), operating temperature ranges from -40°C to +60°C, frequency response from 5kHz to 650kHz, and IP65 protection, making it suitable for pressure measurement in a variety of working conditions, including hydraulic, oil, and pneumatic pressure.

Feature

Precise measurement: Built-in temperature compensation ensures stable and reliable operation in a variety of environments.
Rugged and durable: The integrated cast steel construction is vibration- and shock-resistant, making it suitable for harsh operating conditions.
High-grade protection: IP65 protection ensures effective dust and water resistance, extending its service life.
Integrated display: High-definition LCD screen provides intuitive readings, eliminating the need for an external display and facilitating on-site monitoring and operation.

Dimension (Unit: mm)

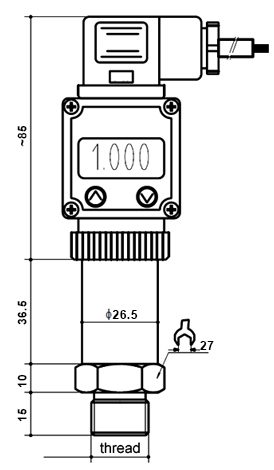

Digital pressure transmitter dimension

Wiring Diagram

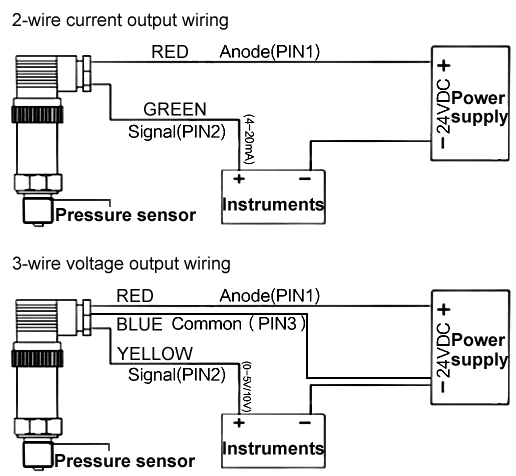

Digital pressure transmitter wiring diagram

Digital pressure transmitter RS485 output wiring diagram

Note: For the output signal RS485, it is only a 485 communication protocol, if you need the data to be received from the PC through the RS485 port, then the PC used should be a PC for industrial application, which can support 485 communication function (such as touch screen HMI upper computer, etc.), A USB to 485 communication interface is also needed to connect the sensor to the PC.

Specs

Weight	0.4kg
Measuring range *	-0.1~100MPa (-1~1000bar/-14~14503psi)
Pressure type*	Gauge pressure (standard), contact us for absolute pressure, sealed pressure type (note that the measuring range for these two types must ≤1MPa)
Measure medium	Hydraulic, steam, air, high-temperature liquid (non-explosion proof area)
Power supply *	DC 12V, DC 24V, DC 12-36V
Output signal *	2 wire: 4-20mA, 0-20mA
	3 wire: 0-5V, 1-5V, 0-10V
	RS485
Accuracy *	±0.5%FS, ±0.3%FS, ±1%FS (when output signal is 0-5V or 0-10V)
Zero temperature drift	±0.03%FS/℃
Sensitivity temperature drift	±0.03%FS/℃
Long term stability	≤0.2%FS/year
Overload pressure	200%FS
Frequency response (-3dB)	5kHz~650kHz
Electrical connection *	DIN connector type, M12 circular connector type, direct lead wire type
Thread of pressure connection *	G1/4, G1/2, 1/4NPT, 1/2NPT, M141.5, M201.5
Response time	＜10ms
Operating temperature	-40~+80℃ (-40~+176℉)
Medium temperature	-40~+60℃ (-40~+140℉)
Material	Housing: 304 stainless steel
	Fill fluid: silicon oil
	Pressure port: 304 stainless steel, or 316L stainless steel (customizable)
	Separating diaphragm: 304 stainless steel, or 316L stainless steel (customizable)
	Sealing: FKM (medium temperature ≤ +200℃/+392℉), EPDM, NBR
Cable length	2m
Protection class	IP65

Note: 1. * denotes optional parameters, you can select every parameter in drop-down lists to finish your order. 2. Pressure sensor designed without LCD screen for 2 wire 0-20mA, 3 wire 0-5V, 1-5V, 0-10V and RS485 output signal. The direct lead wire type pressure sensor is also not equipped with an LCD screen.

Measuring Range Conversion Table

Unit	kPa	MPa	bar	psi
Measuring range	0~5	0~0.005	0~0.05	0~0.7
	0~10	0~0.01	0~0.1	0~1.5
	0~20	0~0.02	0~0.2	0~3
	0~50	0~0.05	0~0.5	0~7
	0~100	0~0.1	0~1	0~14
	-100~0	-0.1~0	-1~0	-14~0
	-100~100	-0.1~0.1	-1~1	-14~14
	0~600	0~0.6	0~6	0~87
	0~1000	0~1	0~10	0~145
	0~1600	0~1.6	0~16	0~232
	0~2500	0~2.5	0~25	0~362
	0~6000	0~6	0~60	0~870
	0~10000	0~10	0~100	0~1450
	0~20000	0~20	0~200	0~2900
	0~30000	0~30	0~300	0~4351
	0~40000	0~40	0~400	0~5801
	0~50000	0~50	0~500	0~7252
	0~60000	0~60	0~600	0~8702
	0~100000	0~100	0~1000	0~14503

Application

Industrial Production Tank

Hydraulic Equipment

Exhaust Gas Treatment

FAQ

Q1: What signal outputs does this pressure transmitter support? ❯

It supports current signals (4-20mA/0-20mA), voltage signals (0-5V/1-5V/0-10V), and RS485 digital signals, meeting the needs of various control systems.

Q2: Is a higher sensitivity for a pressure sensor always better? ❯

Not necessarily. Within the sensor's linear range, high sensitivity facilitates signal processing, but excessively high sensitivity can amplify external noise, affecting measurement accuracy. Therefore, a sensor with a high signal-to-noise ratio should be selected.

Q3: How should I choose a pressure sensor in a high-noise environment? ❯

We recommend choosing a digital pressure sensor with a high signal-to-noise ratio and strong anti-interference capabilities to prevent irrelevant external signals from influencing the measurement results.
