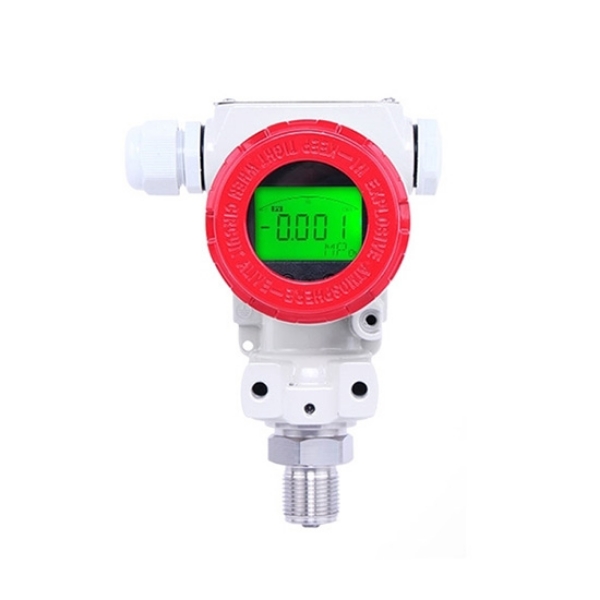

Pressure Sensor with Digital Display, 10/100/3000/5000 PSI

SKU: SUCH-PRES-PX400

$198.63

● Measuring range -0.1~60MPa (-1~600bar/-14~8702psi) ● Output signal 4-20mA or RS485 ● Power supply DC 12V/24V/12-36V ● Frequency response: 5kHz-650kHz, response time <10ms

Measuring Range *
Power Supply *
Output Signal *
Accuracy *
Thread of Pressure Connection *
Pressure Type *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High-precision digital pressure sensor boasts an accuracy of up to ±0.5% FS, a medium temperature range of -40°C to +60°C (-40°C to +140°F), and a selectable range of -0.1 to 60 MPa (-1 to 600 bar / -14 to 8702 psi). It is suitable for measuring pressure in media such as gas, water, and oil. SUCH digital pressure transducer supports 4-20mA or RS485 signal output and operates from a DC 12V, DC 24V, or DC 12-36V power supply. With a response time of less than 10ms and a frequency response range of 5kHz to 650kHz, pressure signal transmission is fast, stable, and accurate.

Feature

High-definition LCD panel: Equipped with a high-definition LCD, the sensor provides clear and intuitive readings, enabling easy on-site monitoring.
Convenient operation: Equipped with buttons and quick zero adjustment, the sensor is more efficient.
Exquisitely machined threads: Precision-molded, one-piece design ensures tight and secure connections for safer use.
Tightly waterproof connector: Highly protective design effectively resists moisture and external environmental interference.
High-quality pressure core: built-in high-performance chip, response speed <10ms, more accurate measurement.

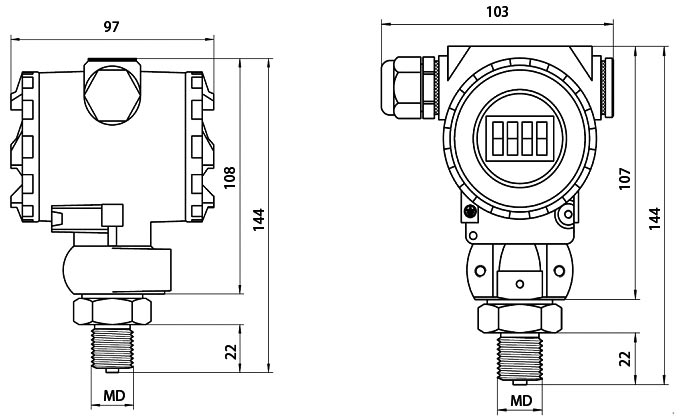

Dimension (Unit: mm)

Digital pressure sensor dimension

Wiring Diagram

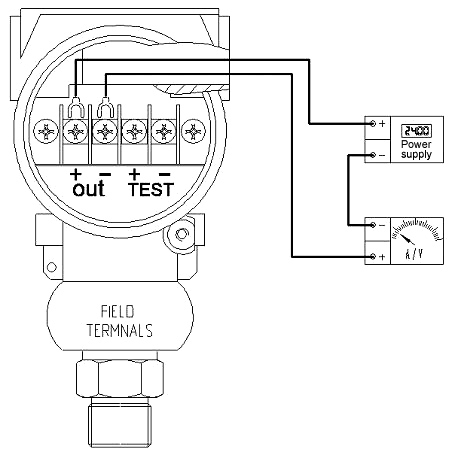

Digital pressure sensor wiring drawing

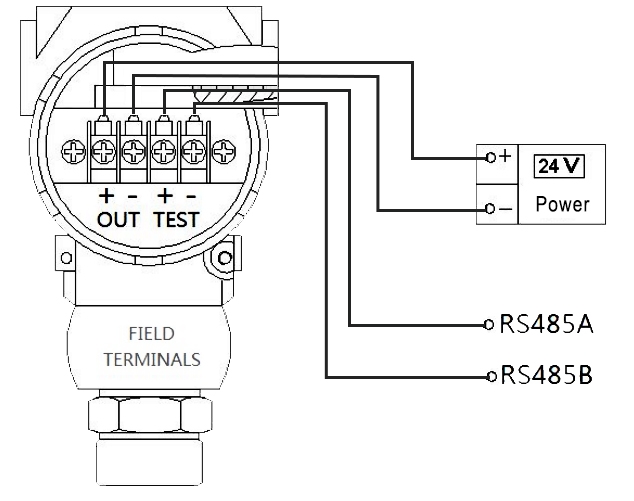

Digital pressure sensor rs485 output wiring

Note: For the output signal RS485, it is only a 485 communication protocol, if you need the data to be received from the PC through the RS485 port, then the PC used should be a PC for industrial application, which can support 485 communication function (such as touch screen HMI upper computer, etc.), A USB to 485 communication interface is also needed to connect the sensor to the PC.

Specs

Weight	1.6kg
Measuring range *	-0.1~60MPa (-1~600bar/-14~8702psi)
Pressure type	Gauge pressure (standard), contact us for absolute pressure, sealed pressure type (note that the measuring range for these two types must ≤1MPa)
Measure medium	Air, water, oil
Power supply *	DC 12V, DC 24V, DC 12-36V
Output signal *	4-20mA, RS485
Accuracy *	±0.5%FS, ±0.3%FS
Zero temperature drift	±0.03%FS/℃
Sensitivity temperature drift	±0.03%FS/℃
Long term stability	≤0.2%FS/year
Overload pressure	200%FS
Frequency response (-3dB)	5kHz~650kHz
Thread of pressure connection *	G1/4, G1/2, 1/4NPT, 1/2NPT, M141.5, M201.5
Response time	＜10ms
Operating temperature	-40~+80℃ (-40~+176℉)
Medium temperature	-40~+60℃ (-40~+140℉)
Material	Housing: 304 stainless steel
	Fill fluid: silicon oil
	Pressure port: 304 stainless steel, or 316L stainless steel (customizable)
	Separating diaphragm: 304 stainless steel, or 316L stainless steel (customizable)
Protection class	IP65

Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.

Measuring Range Conversion Table

Unit	kPa	MPa	bar	psi
Measuring range	0~5	0~0.005	0~0.05	0~0.7
	0~10	0~0.01	0~0.1	0~1.5
	0~20	0~0.02	0~0.2	0~3
	0~50	0~0.05	0~0.5	0~7
	0~100	0~0.1	0~1	0~14
	-100~0	-0.1~0	-1~0	-14~0
	-100~100	-0.1~0.1	-1~1	-14~14
	0~600	0~0.6	0~6	0~87
	0~1000	0~1	0~10	0~145
	0~1600	0~1.6	0~16	0~232
	0~2500	0~2.5	0~25	0~362
	0~6000	0~6	0~60	0~870
	0~10000	0~10	0~100	0~1450
	0~20000	0~20	0~200	0~2900
	0~30000	0~30	0~300	0~4351
	0~40000	0~40	0~400	0~5801
	0~50000	0~50	0~500	0~7252
	0~60000	0~60	0~600	0~8702
	0~100000	0~100	0~1000	0~14503

Application

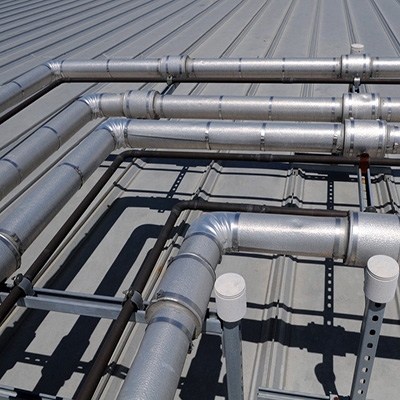

Industrial Pipeline Monitoring

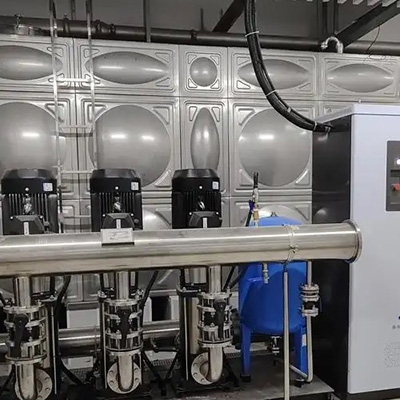

Water Pressure Monitoring

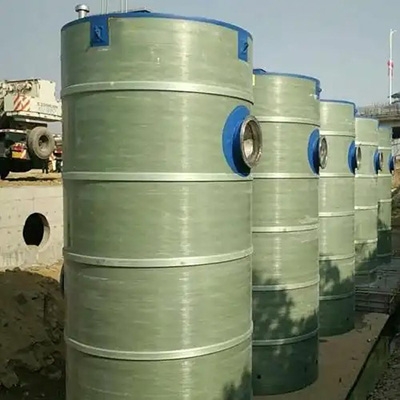

Pump Station

FAQ

Q1: Can this digital pressure transmitter directly display pressure values? ❯

Yes. It features a high-definition LCD panel, providing clear and intuitive readings without the need for an external monitor, making it ideal for industrial field monitoring.

Q2: What output signals and power supply methods are supported? ❯

It supports 4-20mA and RS485 output signals, and the power supply options include DC 12V, DC 24V, or DC 12-36V, providing wide compatibility.

Q3: What media can this digital pressure transmitter measure? ❯

It is suitable for measuring gauge, absolute, and sealed pressures of common fluids such as air, water, and oil.
