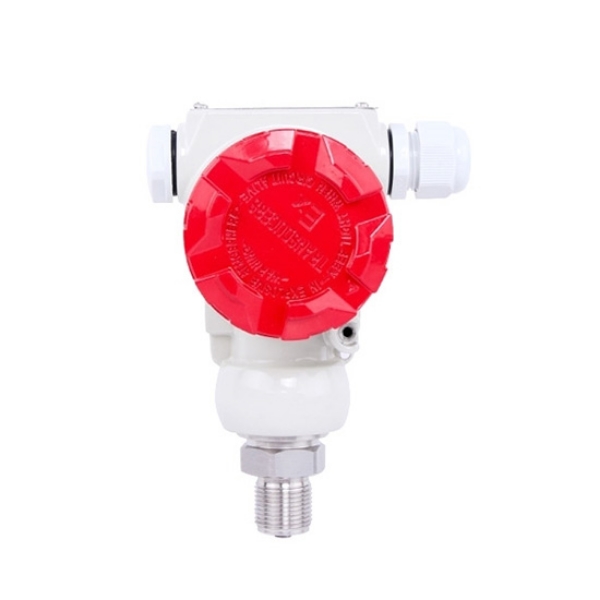

Pressure Sensor for Hydraulic/Air/Oil, 4-20mA/RS485/0-5V

SKU: SUCH-PRES-P400

$151.26

● Measuring range -0.1~60MPa (-1~600bar/-14~8702psi) ● Output signal options 4-20mA/0-5 V/1-5 V/0-10 V/RS485 ● Power supply options DC 12 V/DC 24 V/DC 12–36 V ● Overload pressure 200% FS, frequency response 5 kHz-650 kHz

Measuring Range *
Power Supply *
Output Signal *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Thread of Pressure Connection *
Pressure Type *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH pressure sensor, equipped with the 2088 probe, can withstand long-term use in humid or harsh environments. It covers a measurement range of -0.1 to 60 MPa (-1 to 600 bar/-14 to 8702 psi), operates in a medium temperature range of -40~60°C (-40~+140°F), supports multiple output signals (4-20mA, 0-5V, 1-5V, 0-10V, RS485), and accepts power supplies of DC 12 V, 24 V, and 12-36V. The pressure transducer features a 200% FS overload capacity and a 5 kHz to 650 kHz frequency response. A variety of pressure port sizes are available (G1/4, G1/2, 1/4 NPT, 1/2 NPT, M14×1.5, and M20×1.5). It is widely used in process control, chemical, petroleum, and metallurgical industries.

Feature

This effectively reduces the impact of transient pressure on the diaphragm, ensuring reliability and sensitivity.
The digital circuit board offers strong anti-interference capabilities and stable signals.
It can withstand transient pressure shocks up to twice the measuring range, preventing overload damage.

Dimension (Unit: mm)

Pressure sensor dimension

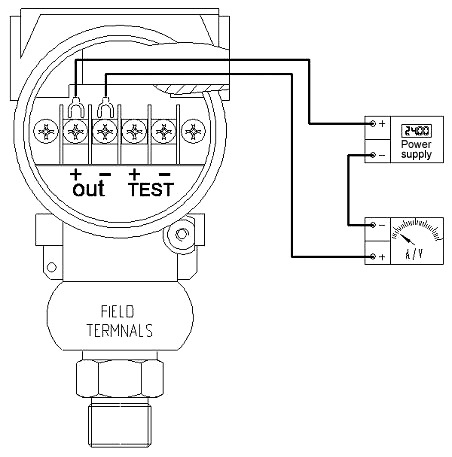

Wiring Diagram

Pressure sensor wiring drawing

Specs

Weight	1.6kg
Measuring range *	-0.1~60MPa (-1~600bar/-14~8702psi)
Pressure type	Gauge pressure (standard), contact us for absolute pressure, sealed pressure type (note that the measuring range for these two types must ≤1MPa)
Measure medium	Air, water, oil
Power supply *	DC 12V, DC 24V, DC 12-36V
Output signal *	4-20mA, 0-5V, 1-5V, 0-10V, RS485
Accuracy *	±0.5%FS, ±0.3%FS, ±1%FS (when output signal is 0-5V or 0-10V)
Zero temperature drift	±0.03%FS/℃
Sensitivity temperature drift	±0.03%FS/℃
Long term stability	≤0.2%FS/year
Overload pressure	200%FS
Frequency response (-3dB)	5kHz~650kHz
Thread of pressure connection *	G1/4, G1/2, 1/4NPT, 1/2NPT, M141.5, M201.5
Response time	＜10ms
Operating temperature	-40~+80℃ (-40~+176℉)
Medium temperature	-40~+60℃ (-40~+140℉)
Material	Housing: 304 stainless steel
	Fill fluid: silicon oil
	Pressure port: 304 stainless steel, or 316L stainless steel (customizable)
	Separating diaphragm: 304 stainless steel, or 316L stainless steel (customizable)

Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.

Measuring Range Conversion Table

Unit	kPa	MPa	bar	psi
Measuring range	0~5	0~0.005	0~0.05	0~0.7
	0~10	0~0.01	0~0.1	0~1.5
	0~20	0~0.02	0~0.2	0~3
	0~50	0~0.05	0~0.5	0~7
	0~100	0~0.1	0~1	0~14
	-100~0	-0.1~0	-1~0	-14~0
	-100~100	-0.1~0.1	-1~1	-14~14
	0~600	0~0.6	0~6	0~87
	0~1000	0~1	0~10	0~145
	0~1600	0~1.6	0~16	0~232
	0~2500	0~2.5	0~25	0~362
	0~6000	0~6	0~60	0~870
	0~10000	0~10	0~100	0~1450
	0~20000	0~20	0~200	0~2900
	0~30000	0~30	0~300	0~4351
	0~40000	0~40	0~400	0~5801
	0~50000	0~50	0~500	0~7252
	0~60000	0~60	0~600	0~8702
	0~100000	0~100	0~1000	0~14503

Application

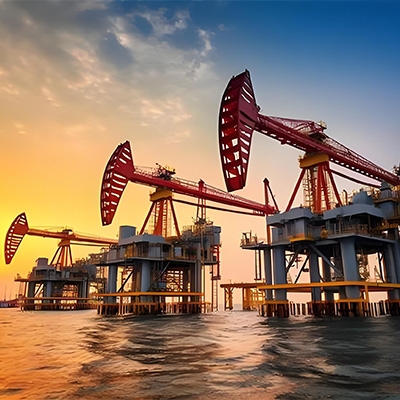

Petroleum Industry

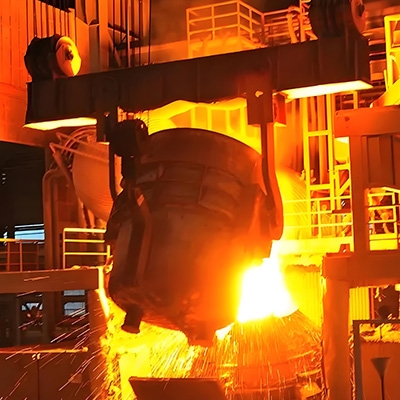

Metallurgical Industry

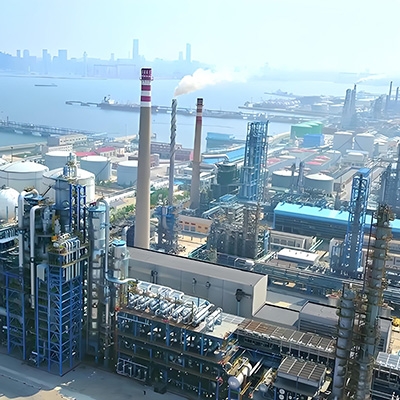

Chemical Industry

FAQ

Q1: Why is the pressure sensor output signal smaller than 4mA? ❯

When a differential pressure transducer works with an orifice plate to measure flow, blockage or severe leakage of the high-pressure line can cause the negative chamber pressure to exceed the positive chamber, resulting in an output lower than 4mA. Draining, clearing the pipes, or sealing leaks can restore normal output. Reverse connection of high/low pressure ports will also cause this issue, which can be fixed by selecting reverse output in the smart transducer’s parameter settings.

Q2: Why is the pressure sensor output unstable? ❯

Unstable output is often caused by vibration, strong electromagnetic interference, or loose wiring. Proper grounding, firm installation, and shielded cables are recommended.

Q3: How do I install the pressure port? ❯

It supports a variety of port sizes (G1/4, G1/2, 1/4NPT, 1/2NPT, M14×1.5, M20×1.5). You can select the appropriate model based on your piping needs.
