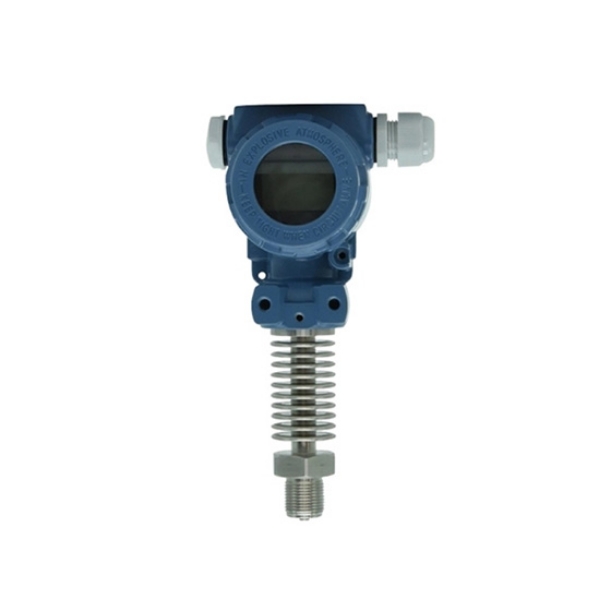

High Temperature Explosion Proof Pressure Sensor, Digital Display

Name: High Temperature Explosion Proof Pressure Sensor, Digital Display
Brand: Such.com
SKU: SUCH-PRES-PT85
Price: 267.32 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-PRES-PT85

$267.32

● Measurement range 0.1-0-60MPa (optional) ● Output signal 4-20mA/0-5V/1-5V/0-10V/RS485 ● Power supply DC 12V/24V ● Operating temperature -20℃~350℃

Measuring Range *
Accuracy *
Power Supply *
Output Signal *
Thread of Pressure Connection *
Quantity of Cooling Fins *
Pressure Type *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Explosion-proof pressure sensor is made of 304 stainless steel by default, with 316L stainless steel optional (customization required). It has a measurement range of 0.1-0-60MPa, supports output signals of 4-20mA, 0-5V, 1-5V, 0-10V, or RS485, and is powered by DC12V/24V. SUCH high temperature pressure transmitter is equipped with 5 to 15 heat sinks and can operate stably in high-temperature environments of -20℃ to 350℃ It is suitable for pressure measurement and control of media such as steam and fuel, and is widely used in petrochemical, pharmaceutical, hydraulic, and pneumatic systems.

Feature

Heat dissipation design, withstands medium and high temperatures, with a wide operating range.
Multiple interface options, with diverse output signals, flexible installation, and high cost performance.
Explosion-proof, reliable and durable, with excellent resistance to shock and vibration.

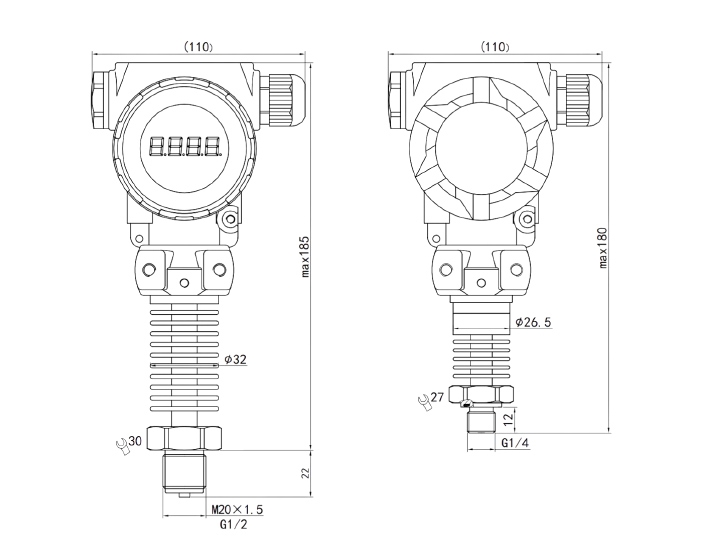

Dimension (Unit: mm)

Explosion proof pressure sensor dimension

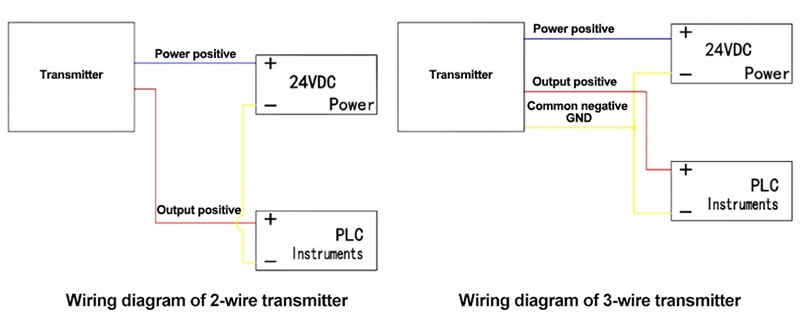

Wiring Diagram

High temperature pressure transducer wiring diagram

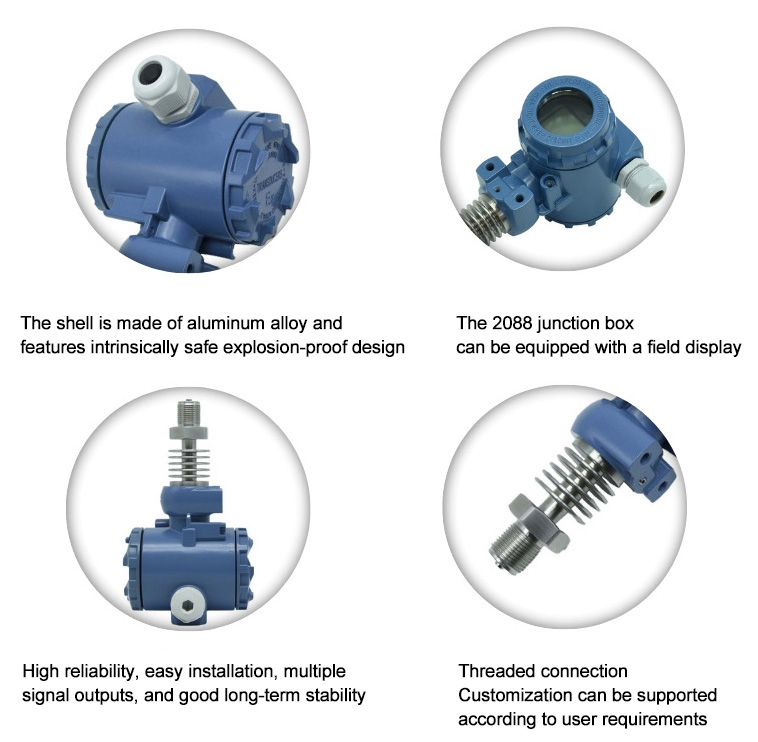

Detail

Explosion proof pressure sensor detail

Specs

Pressure Range (Optional)	0.1-0-60MPa
Accuracy	0.25%FS, 0.5%FS
Output Signal (Optional)	4-20mA, HART, RS485
Power Supply (Optional)	DC 12V, DC 24V
Process Connector (Optional)	4-20mA, 0-5V, 1-5V, 0-10V, RS485
Electrical Connector	2088 Junction Box
Loading Capacity	Current Type: R=(U-8V)/0.02Ω
Temperature Compensation	0-85℃
Working Temperature	-20-150℃, -20-350℃
Safety Overload	150%
Extreme Overload	200%
Temperature Drift	0.02%FS/℃
Long Term Stability	0.2%FS/year
Hold Liquid Material	304 SS (Default), 316L SS (Contact Us)

Application

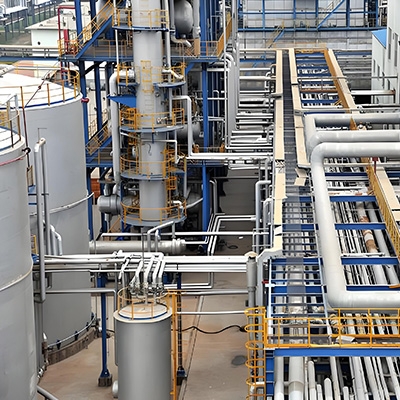

Petrochemical

Pharmaceutical

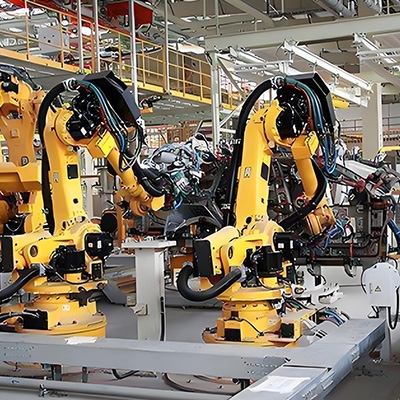

Construction Machinery

FAQ

Q1: What are the applications for explosion-proof pressure sensors? ❯

They are widely used in applications requiring high-temperature and high-pressure measurement and control, such as those in petrochemical, pharmaceutical, hydraulic, and pneumatic systems.

Q2: What are the power supply requirements for explosion-proof pressure sensors? ❯

The sensor supports either DC 12V or DC 24V power supply, which can be selected based on site conditions.

Q3: Does the sensor support custom heat sink structures? ❯

The sensor is equipped with 5 to 15 heat sinks, which can be customized based on the operating environment and temperature requirements.
