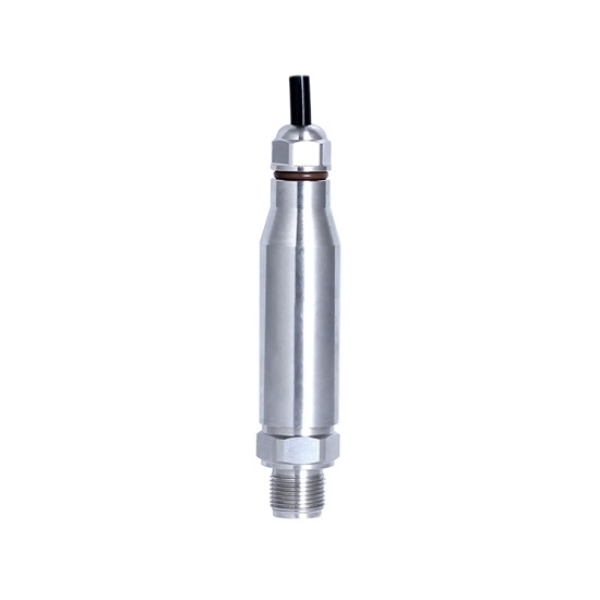

Waterproof Pressure Sensor for Hydraulic/Air, 2 Wire/4 Wire

Name: Waterproof Pressure Sensor for Hydraulic/Air, 2 Wire/4 Wire
Brand: Such.com
SKU: SUCH-PRES-CYYZ31A
Price: 226.57 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-PRES-CYYZ31A

$226.57

● Measuring range 0.001~60 MPa (optional) ● Accuracy 0.25% FS or 0.5% FS ● Signal output RS485/4-20 mA ● Connection M20, G1/4, G1/2, IP68 protection class

Measuring Range *
Output Signal *
Thread of Pressure Connection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH high-precision waterproof pressure sensor boasts an IP68 rating, covers a range of 0.001 to 60 MPa, and boasts an accuracy of up to 0.25% FS. It supports RS485 and 4-20 mA signal outputs and offers a variety of interface options, including M20, G1/4, and G1/2. Built-in temperature compensation allows for operating temperatures from -40°C to 85°C, and supports 1×10^8 pressure cycles. Combining high precision, durability, and reliability, it is widely applicable to industrial control and environmental monitoring applications.

Feature

The sensor utilizes isolation diaphragm technology and an integrated chip design to enhance measurement accuracy, stability, and shock resistance.
It supports multiple power inputs, making it easy to install and suitable for a variety of applications.
An interceptor design effectively resists electromagnetic interference, ensuring stable and reliable signal transmission.
Built-in current limiting, voltage limiting, and reverse polarity protection ensure safe operation of equipment and systems.
Excellent waterproof and lightning protection ensures long-term stable operation in harsh environments.

Dimension (Unit: mm)

Waterproof pressure sensor dimension

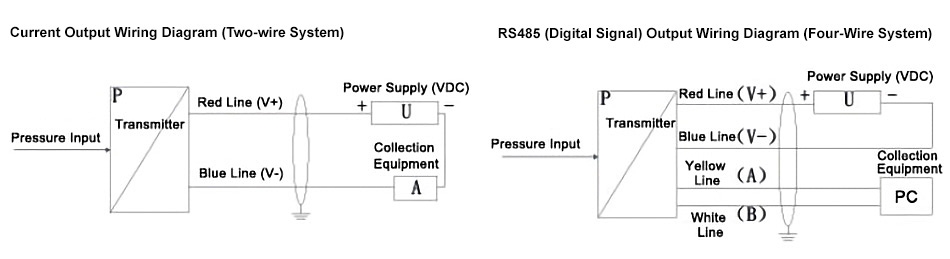

Wiring Diagram

Waterproof pressure sensor wiring diagram

Specs

Measuring Medium	Liquid or gas (compatible with contact material)
Pressure Range	0.001~60MPa (Optional)
Output Power Supply	9~36VDC
Signal Output	4-20mA (2-wire)	RS485 (4-wire)
Pressure Method	Gauge pressure
Response Time	20ms
Protection Class	IP68
Maximum Power	≤0.02Us ((W))	≤0.015Us ((W)
Temperature Compensation	-40°C~70°C
Accuracy Class	Range >100kPa: 0.25%FS
	Range <100kPa: 0.5%FS
Range	<10kPa (non-conductor, non-corrosive, non-explosive gas and humidity ≤90%RH, no condensation)
Ambient Temperature	-40°C~85°C
Ambient Humidity	0%~95%RH (no condensation and no dew)
Connection	M20*5; G1/4; G1/2 (optional)
	Note: Range ≥60MPa, thread only M20*1.5 is available, other specifications need to be customized.
Diaphragm	316L stainless steel (contact with the measured medium)
Process Connection	304 stainless steel (in contact with the measured medium)
Housings	304 stainless steel
Core Seal	0＜FS≤2.5MPa: NBR; 2.5＜FS≤100MPa: Fluoroelastomer
Cables	Range ≤1.6MPa*L03 φ7.2mm Polyurethane air-conducting shielded cable (UV protection)
	Range >1.6MPa*L01 φ5mm Polyurethane gas-conducting shielded cable (UV protection)
Vibration Resistance	10g (20~2000Hz)
Shock Resistance	500g/ms
Short Circuit Protection	Permanent
Reverse Polarity Protection	No damage, but not working
Insulation Resistance	≥100MΩ 500VDC
Dielectric Strength	500VAC
Stability	±0.1% FS/year
Temperature Drift	±0.01% FS/°C (within temperature compensation range), ±0.05% FS/°C (outside temperature compensation range)
Durability	1×10^8 cycles (number of cycles from lower range limit to upper range limit)
Net Weight	≈540g (with 4 meter connecting cable)

Application

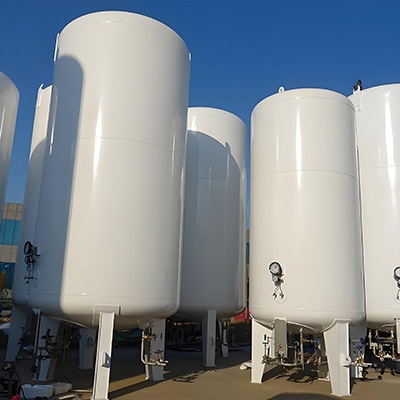

Cryogenic Storage Tank

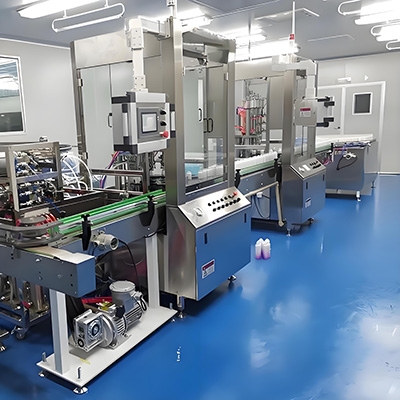

Canning and Packaging Equipment

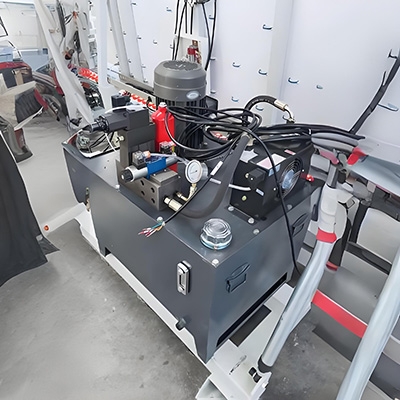

Hydraulic System

FAQ

Q1: Can the waterproof pressure sensor work in harsh environments? ❯

Yes. With IP68 waterproof protection, wide operating temperature (-40°C to 85°C), strong anti-interference design, and lightning protection, the sensor is highly reliable in demanding conditions.

Q2: What installation options are available? ❯

The sensor offers multiple thread interfaces such as M20, G1/4, and G1/2, making it compatible with different installation requirements.

Q3: How is safety ensured during operation? ❯

It is equipped with current limiting, voltage limiting, and reverse connection protection to prevent damage and ensure safe operation.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Caleb Montgomery | Date: 10/30/2026 8:34 AM

Waterproof pressure sensor was a good fit

I was replacing an older sensor and needed something that could handle a wet environment. This one looked like a good fit, so I checked the thread size and pressure range before ordering. Got it installed and wired up without much trouble. Checked the readings a few times, and everything looked good. Pretty happy with the replacement so far.
