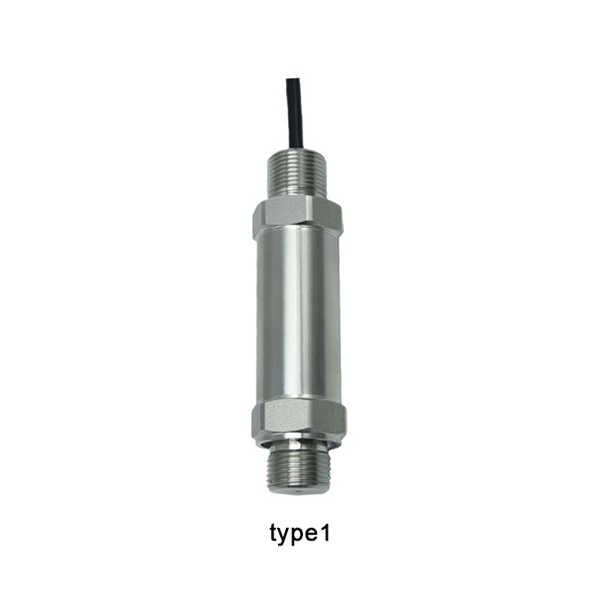

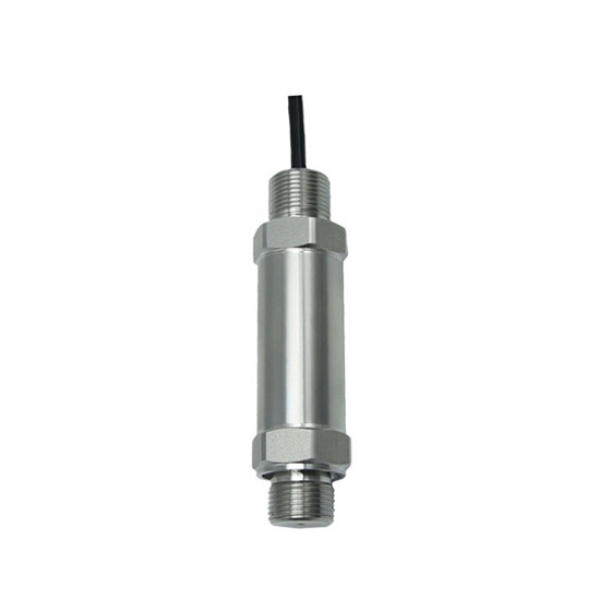

Compact Explosion-proof Pressure Transmitter, 4-20mA Output

SKU: SUCH-PRES-PT8331

$158.47

● Measurement range -0.1-0-100 MPa ● Output signal 4-20mA/0-5V/0-10V/RS485 ● Interface size M20 x 1.5 (customizable) ● Operating temperature -20℃ to 100℃

Type *
Measuring Range *
Output Signal *
Accuracy *
Thread of Pressure Connection *
Material (Liquid Contact) *
Pressure Type *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Factory price explosion-proof pressure transmitter is made entirely of stainless steel and features explosion-proof, corrosion-resistant, and impact-resistant properties. SUCH pressure transmitter has a measurement range of -0.1-0-100 MPa and supports multiple output signals: 4-20mA/0-5V/1-5V/0-10V/RS485. Its threaded interface is M20×1.5, and its electrical connection uses a waterproof socket. It is suitable for operating environments of -20℃ to 100℃ and is widely used in industrial pressure measurement and process control fields such as water pressure, air pressure, oil pressure, and hydraulic pressure.

Feature

Waterproof electrical connection is corrosion-resistant and moisture-resistant, and is durable and resistant to tensile stress.
Stainless-steel construction offers superior corrosion resistance and a long service life.
The laser-welded, one-piece design ensures excellent sealing, vibration resistance, and durability.

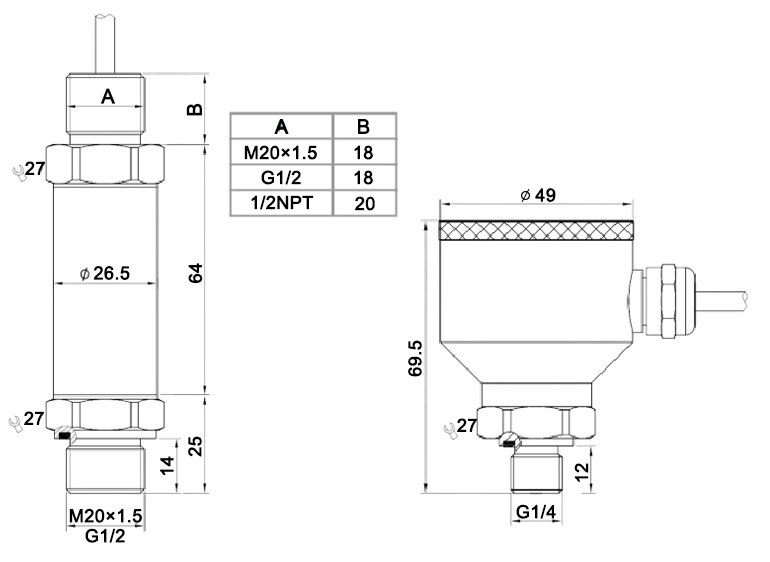

Dimension (Unit: mm)

Explosion proof pressure transmitter dimension

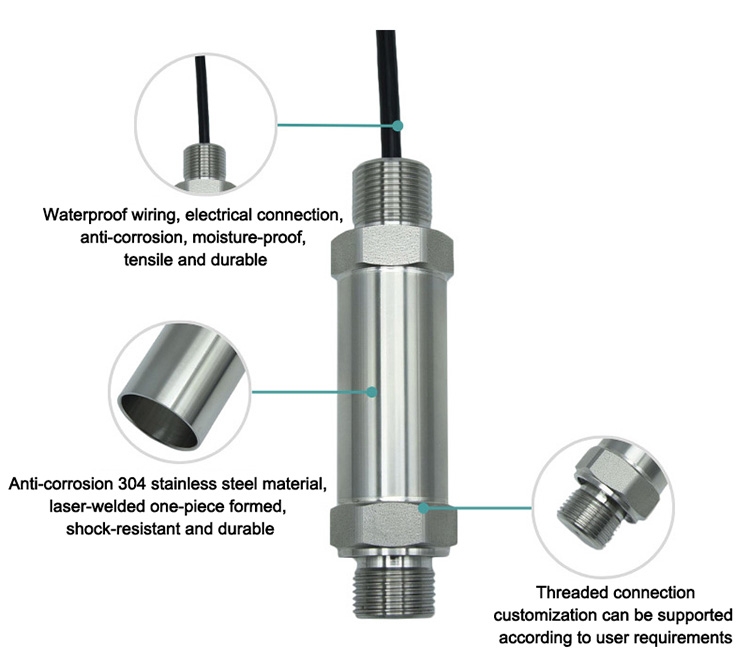

Detail

Explosion proof pressure transmitter detail

Specs

Range	-0.1-0-100MPa
Output	4-20mA (Default), 0/1-5/10V, RS485
Process Connection	M20*1.5 (Default), contact us for others.
Electrical Connection	Waterproof outlet
Accuracy	0.1%FS, 0.25%FS, 0.5%FS
Power Supply	5V DC, 24V DC, 9-36V DC
Load Capacity	Current Type: R=(U-8V)/0.02Ω
Temperature Compensation	-10-70℃
Operating Temperature	-20-100℃
Safety Overload	150%
Ultimate Overload	200%
Temperature Drift	0.02%FS/℃
Long-term Stability	0.2%FS/year
Material (Liquid Contact)	304 or 316L
Pressure Type	Gauge Pressure (Standard) or Absolute Pressure (Contact us)

Application

Water Conservancy and Hydropower

Food and Pharmaceuticals

Chemical Plant

FAQ

Q1: Can this explosion-proof pressure transmitter be used outdoors? ❯

Yes. The housing is well-sealed and made of durable materials, making it suitable for use in hazardous locations both indoors and outdoors.

Q2: What maintenance is required for this explosion-proof pressure transmitter? ❯

We recommend regularly inspecting the seals, terminals, and housing integrity to ensure continued safety and reliability.

Q3: What are the common applications for explosion-proof pressure transmitters? ❯

They are widely used in hazardous environments such as the oil and gas, chemical, metallurgy, mining, and manufacturing industries where flammable gases, vapors, or dust are present.
