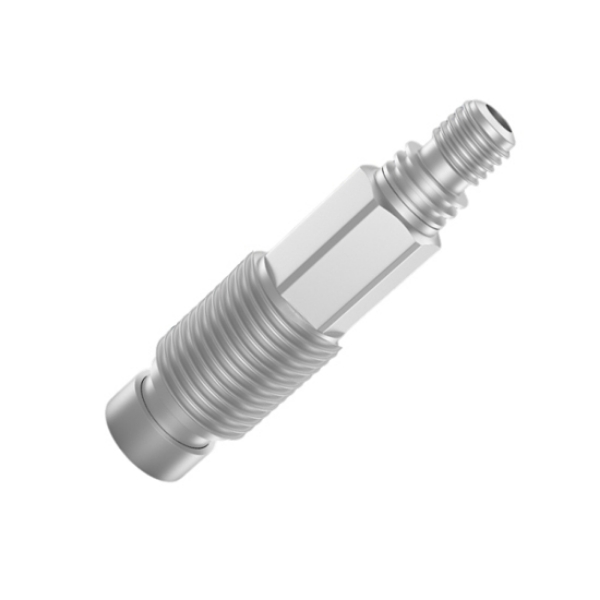

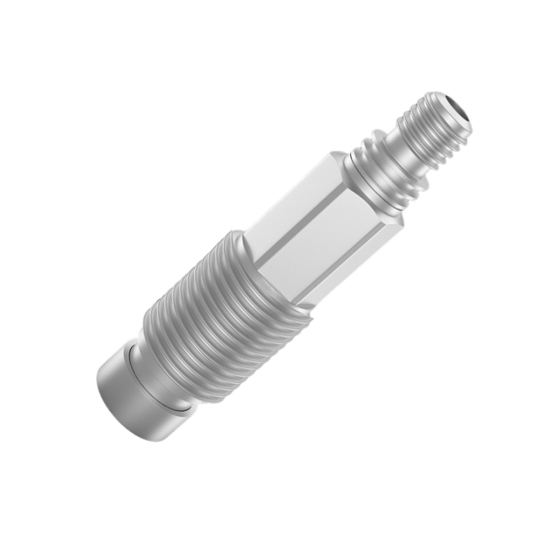

Industrial Piezoelectric Pressure Sensor, Stainless Steel

SKU: SUCH-PRES-SAYL

$533.64

● Measurement range 10/50/100/200/400/600 MPa ● Operating temperature -40℃ to +150℃ ● Overload capacity 120% ● Mounting output method: M5 or L5

Measuring Range *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High-accuracy stainless steel piezoelectric pressure sensor, made of quartz piezoelectric material, features compact size, light weight, wide frequency response, and high rigidity. SUCH piezoelectric pressure sensor operates in an ambient temperature range of -40℃ to 150℃ and is suitable for measuring pipeline and explosion pressures in the range of 10/50/100/200/400/600 MPa. It is widely used in pipeline pressure testing, explosion shock testing, and hydraulic shock monitoring.

Feature

Compact and lightweight, its stainless-steel construction is durable.
Its wide frequency response and high rigidity enable precise capture of transient pressure events.
Its stable and reliable performance makes it suitable for pipeline and explosion pressure measurements.

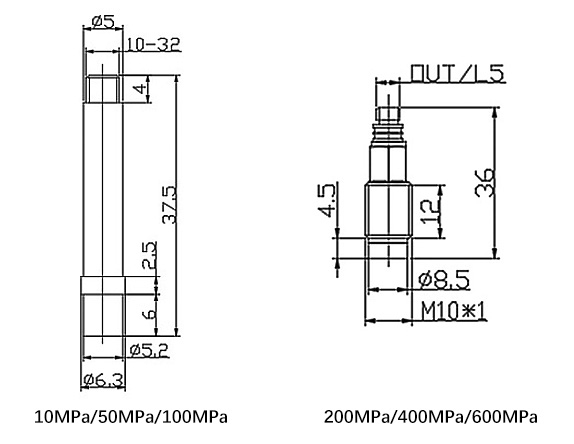

Dimension (Unit: mm)

Piezoelectric pressure sensor dimension

Specs

Measurement Range	200 MPa	400 MPa	600 MPa
Sensitivity	~30 pC/MPa		~20 pC/MPa
Frequency Response	≥200 KHz
Non-Linearity	≤1%	≤1.5%
Mounting Output Method	M5
Mounting Dimension	M10*1
Weight	20g
Operating Temperature	-40~150 ℃
Shell Material	High-Strength Stainless Steel
Rise Time	~2 uS
Piezoelectric Material	Quartz
Overload Capacity	120%
Measurement Range	10 MPa	50 MPa	100 MPa
Sensitivity	35 pC/MPa
Frequency Response	≥350 KHz		≥400 KHz
Non-Linearity	≤1%
Mounting Output Method	L5
Mounting Dimension	Tooling
Weight	about 3g
Operating Temperature	-40~150 ℃
Shell Material	High-Strength Stainless Steel
Rise Time	~2 uS
Piezoelectric Material	Quartz
Overload Capacity	120%

Application

Civil Engineering

Industrial and Energy

Automotive and Machinery

FAQ

Q1: How do piezoelectric pressure sensors work? ❯

Piezoelectric pressure sensors utilize the piezoelectric effect. When pressure is applied to a piezoelectric material, an electric charge is generated, which is converted into a voltage signal proportional to the pressure.

Q2: What types of pressure are piezoelectric pressure sensors suitable for measuring? ❯

It is best suited for dynamic pressure measurements, such as shock waves, explosion pressure, combustion process pressure, and transient pressure in pipelines. It is not suitable for long-term static pressure measurements.

Q3: What are the main advantages of piezoelectric pressure sensors? ❯

Piezoelectric pressure sensors offer fast response and high accuracy, enabling precise capture of transient pressures. They are also compact, lightweight, and rugged, offering stable and reliable performance, making them suitable for various dynamic pressure measurements.
