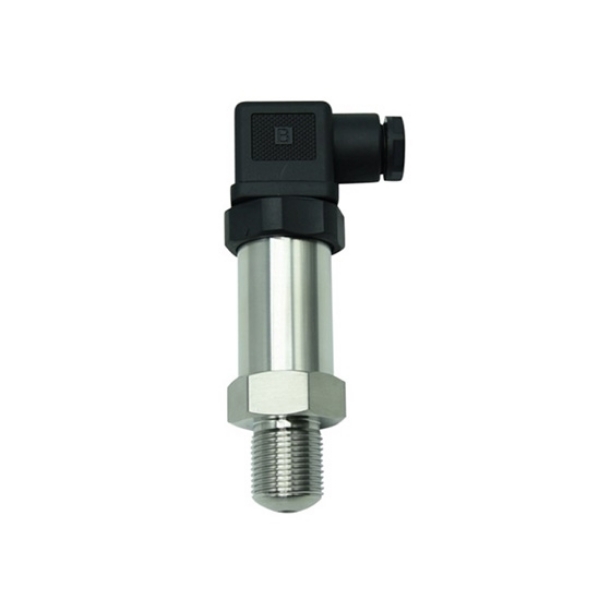

Ultra High Pressure Transmitter, 0~400~1000MPa

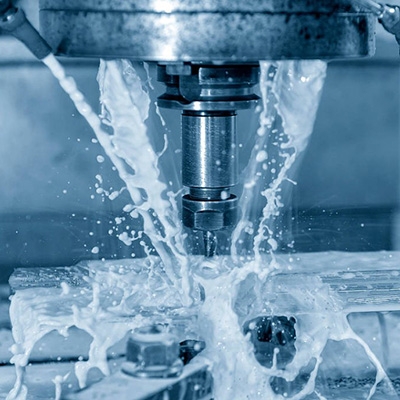

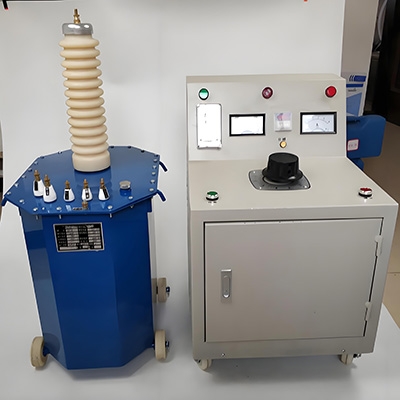

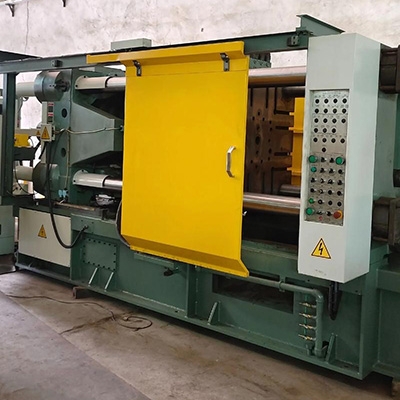

SUCH ultra-high-pressure transmitter covers a measurement range of 0~70 MPa~1000 MPa, with an accuracy of up to ±0.5% FS. It operates stably in environments ranging from -40℃ to 85℃ and supports multiple output signals: 4-20mA, 0-5V, and 0-10V. The sensor core utilizes a one-piece stainless-steel design, eliminating welds and seals to minimize leakage. It is widely used in stamping and die-casting machines, hydraulic equipment, ultra-high-pressure testing systems, and laboratories. The pressure sensor offers electrical connection options including Hirschmann connectors, aviation plugs, direct leads, and M12×1 to meet diverse application requirements.

Feature

• It offers excellent shock and vibration resistance, ensuring stable operation under high pressure and complex environments.
• The robust stainless-steel construction ensures easy installation, maintenance-free operation, and safe and reliable operation.
• Ultra-high-pressure transmitter has an accuracy of up to 0.5%FS, ensuring good stability during long-term use.
• The integrated stainless-steel design eliminates welds and seals, completely eliminating the risk of leakage.
• It can operate stably in a wide temperature range of -40℃ to 85℃ and adapt to various extreme working conditions.

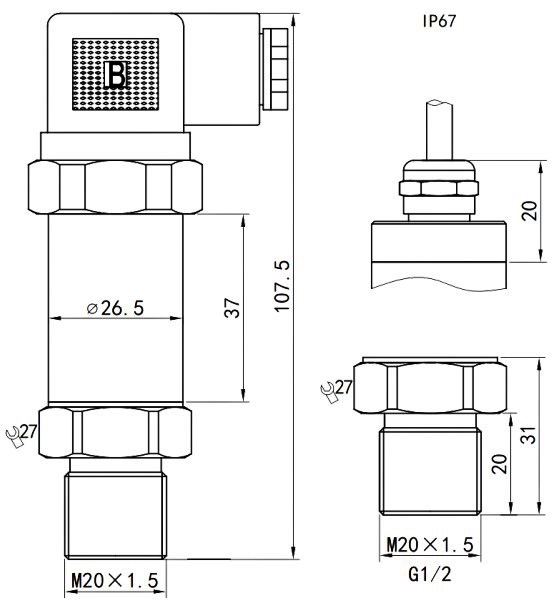

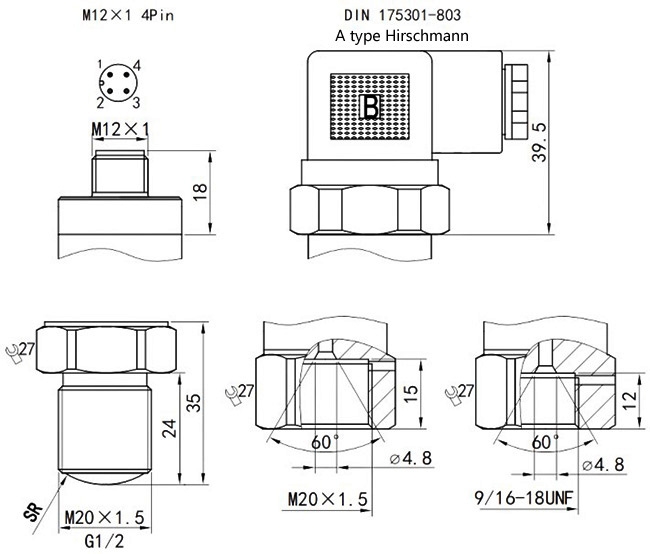

Dimension (Unit: mm)

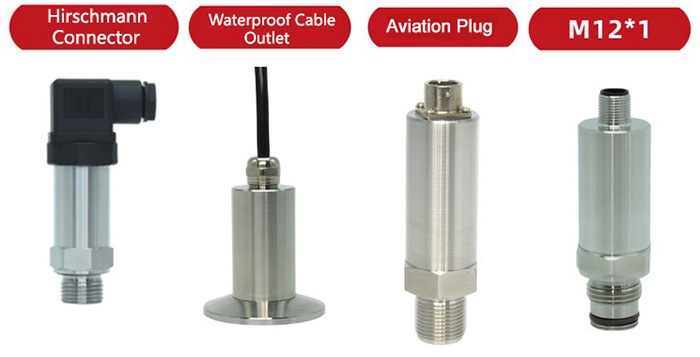

Electrical Connection

Wiring Diagram

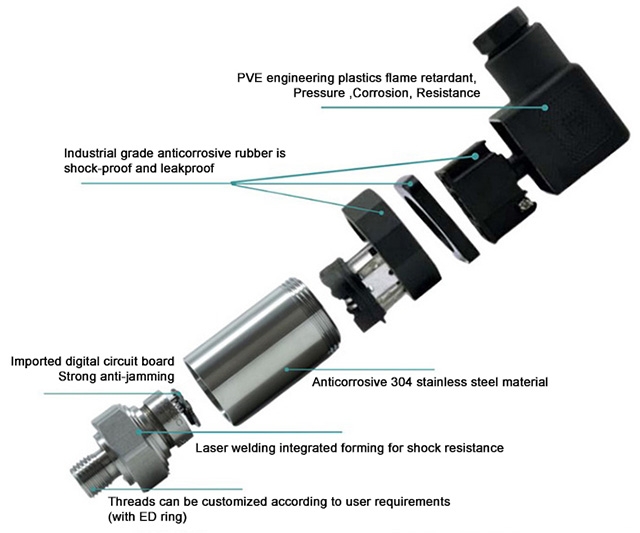

Detail
