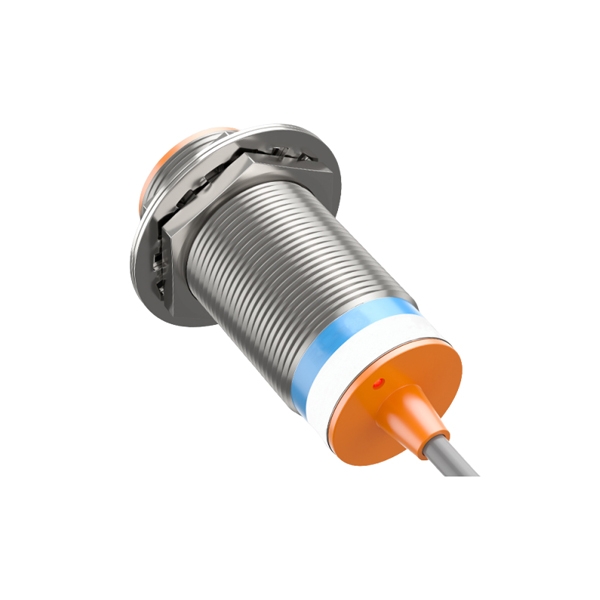

M30 Inductive Proximity Sensor, 2 Wire/NPN/PNP/3 Wire

SKU: SUCH-IPS-I30

$39.95

● M30*1.5 thread ● 10mm or 15mm detection range ● 2 Wire/3 Wire/NPN/PNP output modes ● Unshielded or shielded installation type

Specification Selection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High quality M30 inductive proximity sensor for sale online. 10mm/15mm detection distance, 2 wire/NPN/PNP/3 wire type output, shielded or unshielded installation, IP67 protection class, long service life, strong anti-interference capability, suitable for detecting magnetic metal objects in industrial applications.

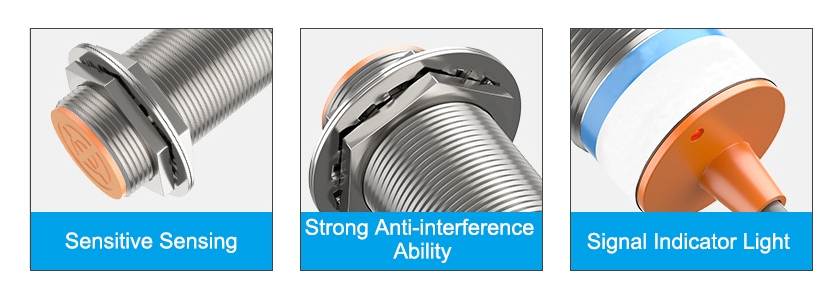

Feature

SUCH inductive proximity sensor uses an intelligent sensing chip with fast response and strong anti-interference capability to accurately detect nearby metal objects. With high repeat positioning accuracy, high switching frequency, and selectable NPN/PNP (NO/NC) output modes, it ensures stable and reliable operation in various applications.
It is equipped with a red LED indicator that clearly shows the operating state. When a metal target is detected, the indicator turns on or off according to the NO/NC mode, making on-site debugging and monitoring easier.
M30 inductive proximity switch offers vibration, dust, water, and oil resistance, supports a wide voltage range, and includes reverse polarity and short-circuit protection for direct PLC connection. Its robust construction allows it to replace small mechanical switches and limit switches while maintaining stable performance in harsh environments.

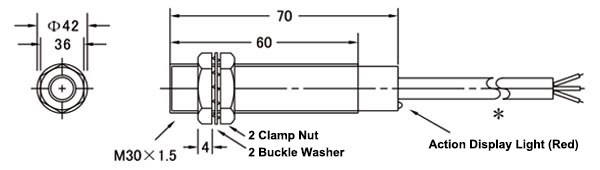

Dimension (Unit: mm)

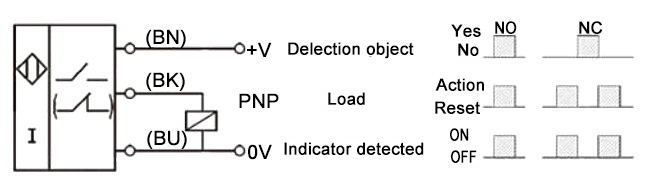

Wiring Diagram

Specs

Installation type			Shielded	Unshielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
			NO+NC	NO+NC
		PNP	NO	NO
			NC	NC
			NO+NC	NO+NC
		2 wire	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
		3 wire	NO+NC	NO+NC
Detection range			10mm±10%	15mm±10%
Setting distance			0-8mm	0-13mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 30301mm	Iron 54541mm
Response frequency			DC: 0.5kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Application

Automated Production

Machinery and Machine Tool Industry

Automotive Manufacturing

FAQ

Q1: Does this M30 inductive proximity sensor detect all types of metal equally? ❯

No. Magnetic metals (such as iron and steel) provide the longest detection distance. Non-magnetic metals (such as aluminum, copper, and stainless steel) will reduce the sensing range compared to magnetic metals, which is a normal characteristic of inductive sensors.

Q2: What is the difference between the DC (PNP/NPN) version and the AC 110–220V version? ❯

DC type (6–36V) provides NPN or PNP transistor output suitable for PLCs, controllers, and low-voltage systems. AC type (90–250V) is designed for direct connection to high-voltage AC circuits and typically uses a 2-wire switching output rather than NPN/PNP.

Q3: Can this inductive proximity sensor handle electrical noise or voltage spikes? ❯

Yes. The DC version includes reverse polarity, short-circuit, and surge protection. The AC version is designed to operate stably under common industrial power noise conditions, as long as the impulse (p-p) remains within 10% of the rated voltage.
