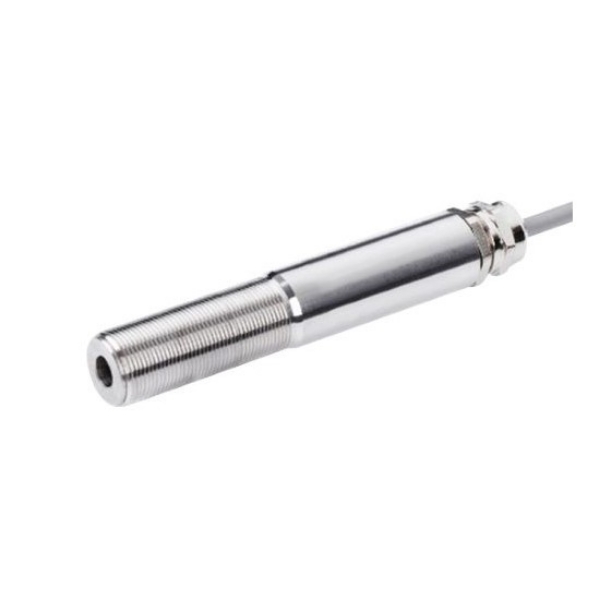

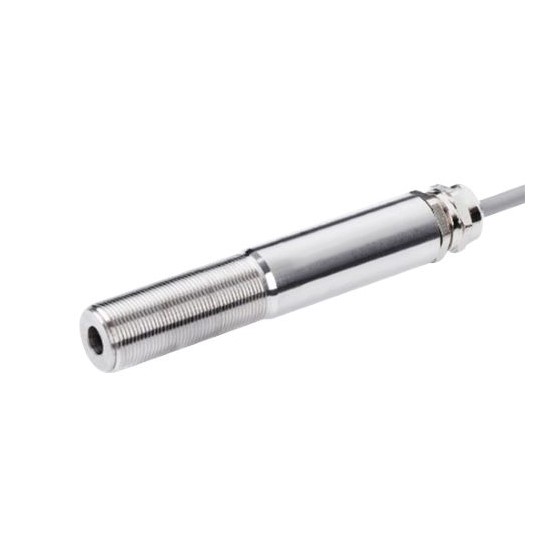

Non-contact High Temperature Infrared Sensor, PIR, 4-20mA/RS485 Output

SKU: SUCH-IRS-400A
$172.46
● Adopt infrared measurement, can measure 0~1200℃ temperature ● Passive infrared measurement, output signal 4-20mA, RS485 optional ● Accuracy ±2% or ±2.5℃, object distance ratio 20:1 ● Made of 304 stainless steel, IP65 protection grade
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

Low price non-contact high temperature infrared sensor for sale online, with 4-20mA or RS485 signal output, object distance ratio 20:1, accuracy ±2% or ±2.5 ℃. SUCH industrial non-contact high temperature IR sensor adopts infrared measurement, which can measure the temperature from 0 to 1200 ℃, is easy to assemble and has high accuracy. The infrared temperature sensor can measure temperature continuously, with a milliseconds response speed and small size, suitable for narrow working conditions.

Feature

  • High-speed processing chip: Built-in high-performance processor ensures fast signal conversion, thus outputting more stable and accurate data.
  • Stainless steel case: Made of high-quality 304 stainless steel, with excellent corrosion resistance and durability in high-temperature environments.
  • IP65 protection level: Direct lead waterproof and dustproof design, good sealing.
  • Small size: Important parts are integrated in the shell, and installation is very simple.

Non-contact high temperature infrared sensor features

Dimension (Unit:mm)

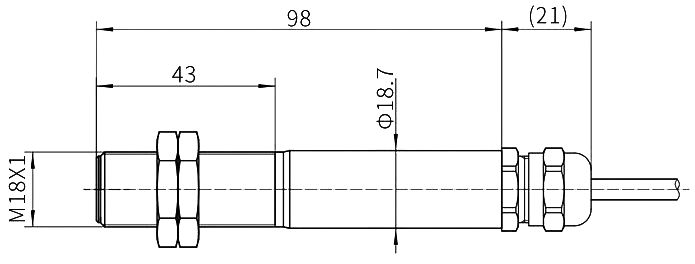

Dimensions of non-contact high temperature infrared sensor

Details

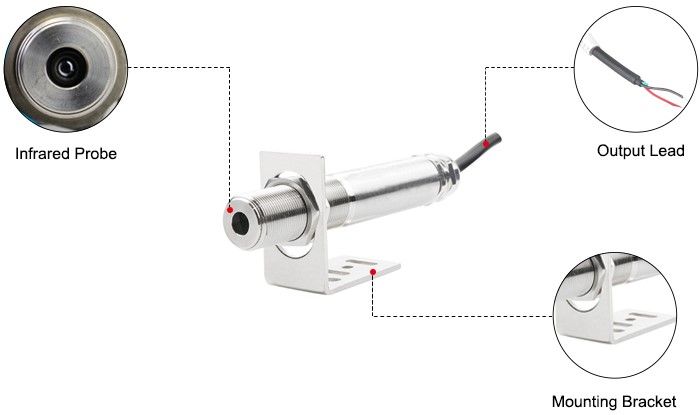

Non-contact high temperature infrared sensor details

Wiring

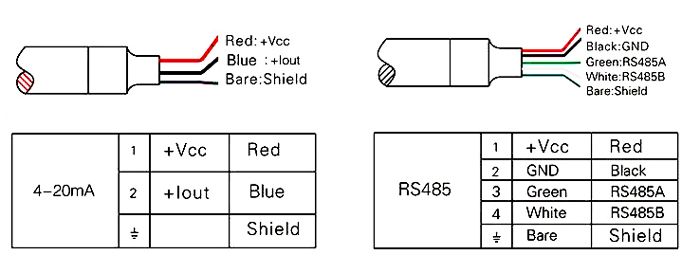

Wiring of non-contact high temperature infrared sensor

Installation

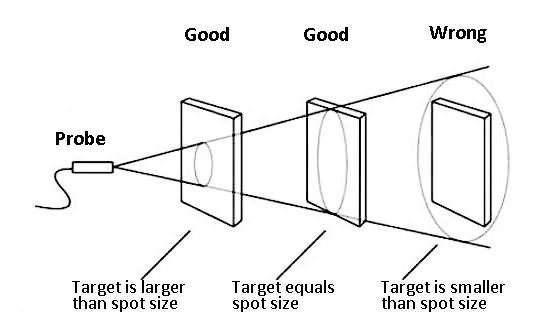

Installing the non-contact high temperature infrared sensor

  1. According to the measurement requirements and the measurement coefficient of the sensor, choose the appropriate distance and orientation, and fix the infrared temperature measurement probe and the adjustment bracket well.
  2. Adjust the measurement direction of the probe so that the measured object is roughly facing the observation site.
  3. Lock the orientation of the adjustment bracket.
Specs
Measurement Range 0 ~ 100℃, 150℃, 200℃, 300℃, 400℃, 500℃, 600℃, 800℃, 1000℃, 1200℃ (Optional)
Signal Output 4–20 mA or RS485 (Optional)
Power Supply 10~30V DC, 5~30V DC (RS485)
Accuracy ±2% of the measured value or ±2.5℃, whichever is greater
Response Wavelength 8–14ξm
Object Distance Ratio 20:1
Ambient Temperature 0~+60℃
Storage Temperature -40~+85℃
Ambient Temperature 0 ~ 60℃ (Better performance at 0 ~ 50℃)
Protection Level IP65
Shell Material 304 Stainless Steel
Response Time 300ms (95%)
Application
Flame Detection

Flame Detection

High Temperature Detection

High Temperature Detection

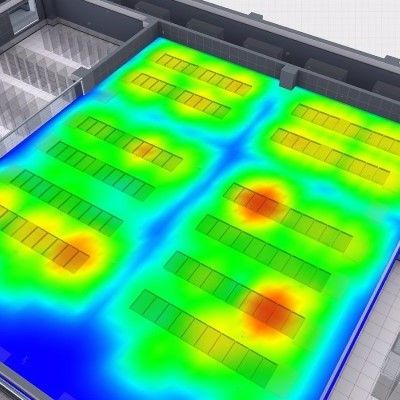

Temperature Monitoring

Temperature Monitoring

FAQ
âŊ

A non-contact high-temperature infrared sensor is a sensor that uses the infrared energy radiated by an object to measure its temperature. It is suitable for temperature measurement in environments where it cannot be touched, is in motion, or is in a dangerous high-temperature environment.

âŊ

All objects radiate infrared energy above absolute zero. Non-contact high-temperature infrared sensors detect these infrared radiations and convert them into electrical signals, and calculate the surface temperature of the object through a specific algorithm.

âŊ

Yes, the response speed of infrared sensors is usually in the millisecond level, and can be used in industrial process control scenarios that require fast temperature response.
