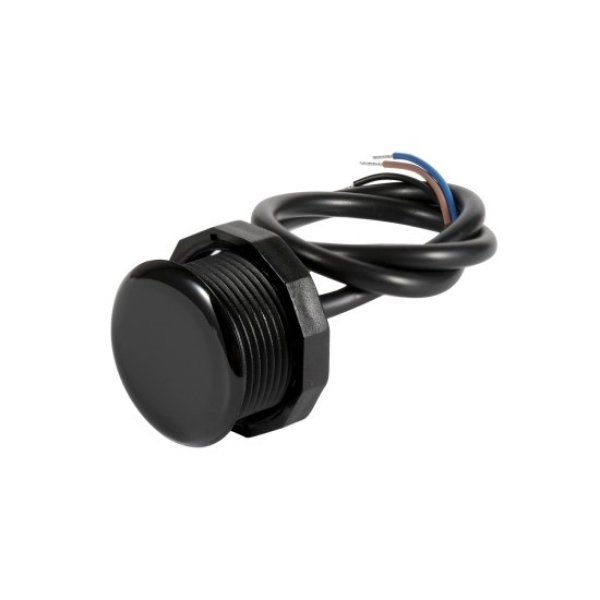

Active Infrared Sensor for Indoor/Outdoor

SKU: SUCH-IRS-KD200
$58.25
● The active infrared sensor can be used in indoor or outdoor environments ● Diffuse reflective sensing method, sensing angle 30~40° cone angle ● Input voltage DC 5V~24V, response time ≤500ms ● Adopted PC V0 fireproof material, IP67 waterproof rating
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

Reasonably priced active infrared sensor, with indoor/outdoor types to choose from. The input voltage of the active infrared sensor is 5V~24V DC, the load current is less than 3A, the sensing angle is 30~40° cone angle, and the output mode is NPN, relay NO/NC and high and low level signal optional. SUCH active infrared sensor can be used in automatic faucets, vending machines and security alarms.

Feature

  • Anti-sunlight interference: The active infrared sensor will not be triggered by mistake even under direct sunlight. It is waterproof and dustproof, has strong anti-interference ability, and can work stably both indoors and outdoors.
  • Ultra-long sensing distance: The active IR sensor for indoor/outdoor adopts the principle of infrared diffuse reflection, and the sensing distance can reach 2 meters.
  • Distance can be adjusted independently: The distance from 5 to 200CM can be adjusted independently, which is more convenient and accurate, and the sensing distance can be adjusted freely.
  • Multi-layer filter cover: Strong anti-interference ability, more stable sensing, and multi-layer filtering.

Dimension (Unit:mm)

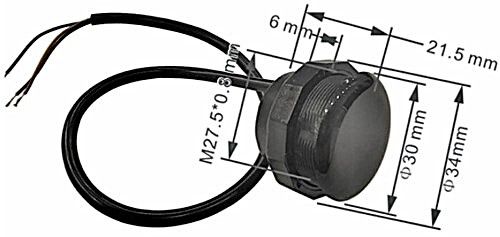

Active Infrared Sensor for Indoor/Outdoor Size

Wiring

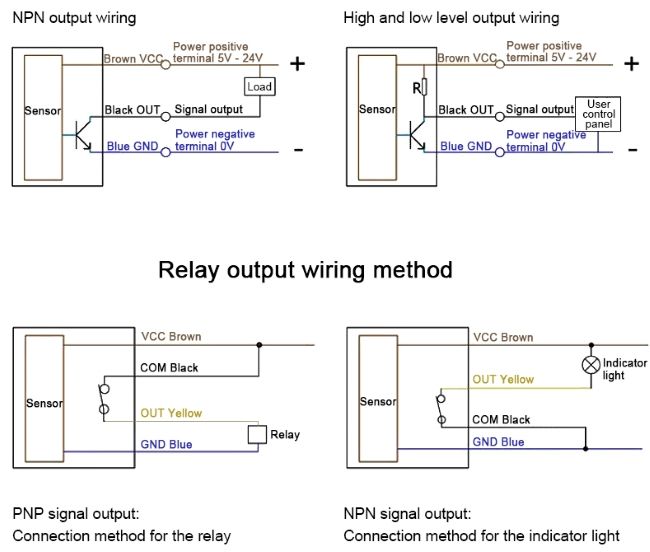

Active Infrared Sensor for Indoor/Outdoor Wiring

Sensing Range

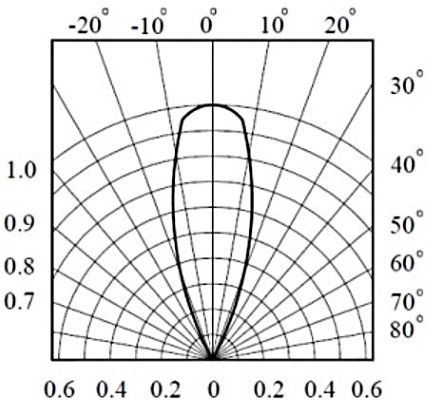

Active Infrared Sensor for Indoor/Outdoor Sensing Range

Details

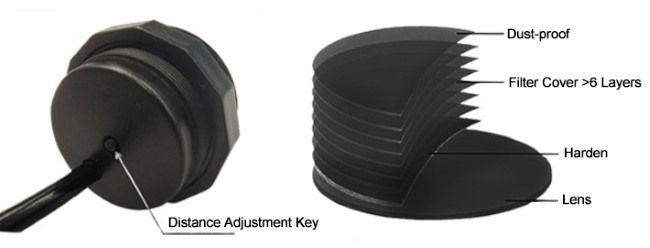

Active Infrared Sensor for Indoor/Outdoor Details

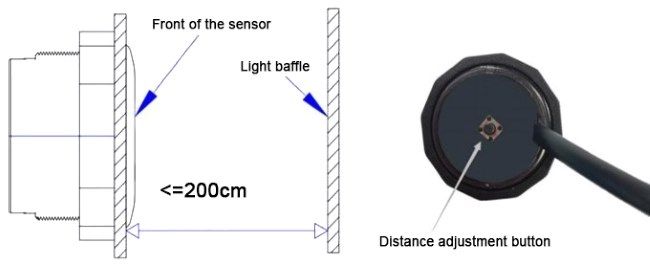

Sensing Distance Adjustment

Active Infrared Sensor for Indoor/Outdoor Sensing Distance Adjustment

  1. Power on the sensor to work properly.
  2. Place the light shield and confirm the distance.
  3. Open the sensor back cover.
  4. Press and hold the adjustment button.
  5. Wait for the indicator LED to flash quickly.
  6. The sensor enters the automatic distance adjustment mode.
  7. The LED keeps flashing, and the distance is being adjusted. Do not move the baffle.
  8. The LED indicator stops flashing and the distance adjustment is completed.

Installation Method

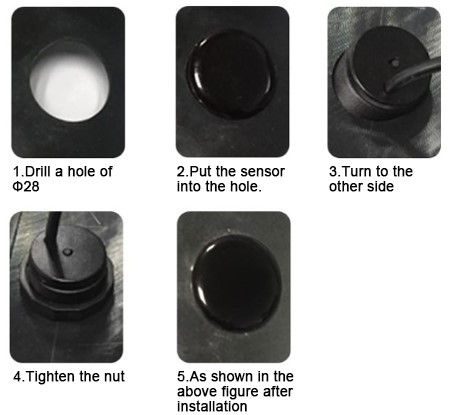

Active Infrared Sensor for Indoor/Outdoor Installation Method

Drill a hole in the panel where the sensor needs to be installed. The hole diameter is 28mm. Install the sensor into the hole from the front of the panel and tighten the nut behind the sensor.

Specs
Quiescent Current <3.5mA
Load Current <3A (relay 2A)
Output Mode NPN, relay NO/NC, high and low level signal
Working Environment Temperature -20~85℃
Sensing Angle 30~40° cone angle
Sensing Distance Indoor Type: 5cm~200cm adjustable distance (there is a certain error between the sensing distance and the color of the obstacle, light color is far, dark color is near)
Outdoor Type: Outdoor 5~150cm/direct sunlight 5~100cm/indoor 5~200cm
Sensing Accuracy Outdoor Type: outdoor ±10cm/direct sunlight ±30cm/indoor ±5cm
Sensing Mode Diffuse reflection
Response Time ≤500ms
Storage Temperature -20~85℃
Material PC V0 fireproof material
Waterproof IP67
Wire Length 30cm (±10mm)
Environmental Certification ROHS-2.0
Standard Certification CE


Model Selection

Applicable occasions Output signal
Indoor High and low level signal, positive output, power supply 5-24V
High and low level signal, negative output, power supply 5-24V
NPN normally open output, power supply 5-24V
NPN normally closed output, power supply 5-24V
Relay normally open output, power supply 5-24V
Relay normally closed output, power supply 5-24V
Indoor High and low level signal, positive output, power supply 5-24V
High and low level signal, negative output, power supply 5-24V
NPN normally open output, power supply 5-24V
NPN normally closed output, power supply 5-24V
Relay normally open output, power supply 5-24V
Relay normally closed output, power supply 5-24V
Application
Smart Trash Can

Smart Trash Can

Vending Machine

Vending Machine

Automatic Faucet

Automatic Faucet

FAQ

Check the fixation to ensure that the bracket and screws are not loose. Check whether the cable is damaged or aged. Regularly simulate occlusion to test whether the trigger is normal and reliable.

The active infrared sensor detects objects by emitting infrared light and receiving reflected signals, while the passive infrared sensor only receives infrared radiation emitted by objects in the environment and does not actively emit. Active type is suitable for close-range precision detection and has strong anti-interference ability.

The Active infrared sensor can detect transparent or black objects, but the detection effect depends on the reflectivity of the object. For low reflectivity objects, it is necessary to adjust the sensor sensitivity or use a reflective plate to assist in improving accuracy.

0.0 0
Write your own review Close
*
*
