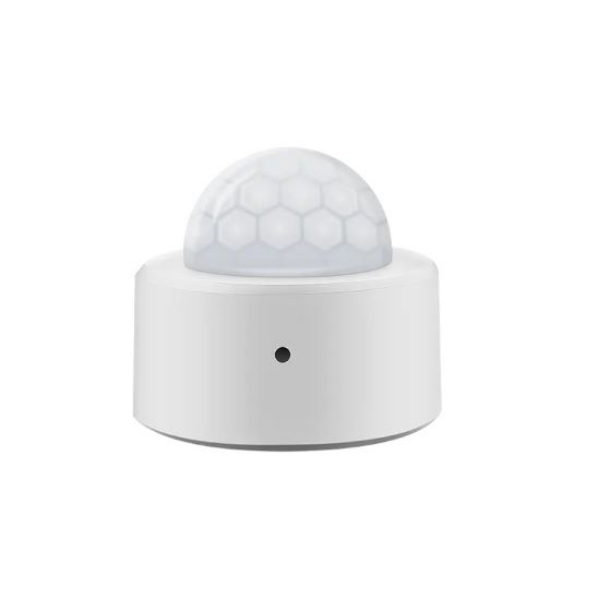

    Passive Infrared Sensor for Human Motion, 10m, 120°

    1 review(s) | Add your review
    SKU: SUCH-IRS-808WZ
    $60.47
    ● Sensing range 120°, sensing distance 5m ● Standby current ≤12uA, working voltage 3V ● Working temperature -10~45℃, working humidity 0%~99%RH ● Small size, compact structure, shell material is ABS
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Favorable price passive human motion infrared sensor for sale, sensing range 120°, sensing distance 5m, standby current ≤12uA, working voltage 3V. SUCH PIR sensor for human motion uses airflow suppression technology to avoid false alarms in complex environments, can quickly detect human motion, and avoid detection delays and omissions. If you want to use it in conjunction with other devices, you need to use it with a gateway.

    Feature

    • Highly sensitive infrared detection sensor, more accurate detection.
    • Adopt airflow suppression technology to avoid false alarms in complex environments.
    • Quickly detect human movement to avoid detection delays and omissions.
    • Extremely long standby time.
    • Support intelligent linkage with other devices.
    • Easy to install and use.

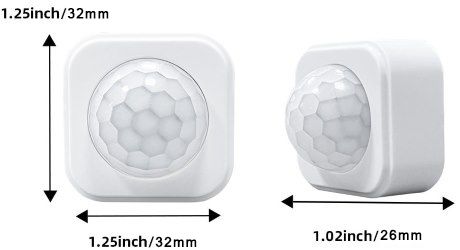

    Dimension (Unit:mm)

    Passive human motion infrared sensor size

    Specs
    Sensing Range 120°
    Sensing Distance  5m
    Standby Current ≤12uA
    Working Voltage 3V
    Material ABS
    Battery Type CR2450
    Standby Time ≥12 months
    Working Temperature -10~45℃
    Working Humidity 0%~99%RH
    Installation 3M glue paste
    Product Weight 35g
    Product Size 33*33*26mm
    Packing List Sensor x1, 3M glue x1, product manual x1
    Application
    Table

    Table

    Ceiling

    Ceiling

    Wall

    Wall

    FAQ
    ❯

    PIR (passive infrared) sensor is a sensor used to detect human or animal activities. It determines whether there is a moving target passing by by sensing the infrared radiation emitted by the human body. It is often used in security, lighting, automatic control and other fields.

    ❯

    Passive infrared sensors detect moving heat sources by receiving infrared radiation emitted by objects and do not emit signals themselves. Active infrared sensors actively emit infrared light and determine whether there is an object by receiving reflected signals.

    ❯

    No. Passive human motion infrared sensors cannot penetrate physical obstacles such as walls, glass, and metal, and there must be no obstructions within the detection range.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Eric Crawford | 6/16/2026 9:56 AM
    Reliable passive human motion infrared sensor for home security
    Came across this passive human motion infrared sensor while trying to fix a blind spot near our backyard patio door. Hooked right into our Zigbee hub setup without a fight. The 120 degree wide angle zone covers the entire entrance area easily. Range tops out around 5 or 6 meters out here, which is plenty for my setup.
