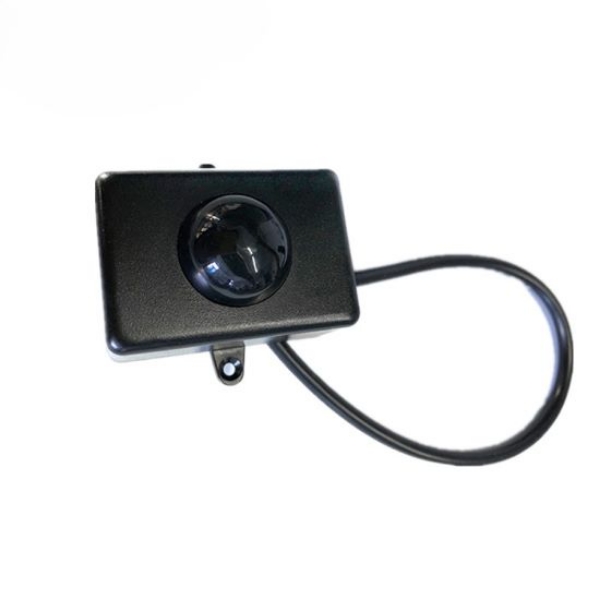

Pyroelectric Human Infrared Sensor, DC 5-12V

SKU: SUCH-IRS-003K4
$53.53
● Output types are high and low level, NPN, relay optional ● Passive infrared measurement, sensing distance within 7 meters ● Delay time 5-300s adjustable, blocking time of about 1s ● Static current less than 200uA, operating voltage range 5-12V DC
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

Factory sale pyroelectric human infrared sensor, high and low level/NPN/relay output optional, sensing angle <110° cone angle, sensing distance within seven meters. A human pyroelectric IR sensor is a passive infrared sensor used to detect the movement of a heat source, such as a human body, in a monitored area. It senses based on changes in infrared radiation emitted by an object. SUCH pyroelectric human infrared sensor is easy to install, infrared measurement, non-contact, can be used in shopping malls, smart vending machines, smart building lights and other places.

Feature

  • Fully automatic sensing: When a person enters its sensing range, it outputs a high level. When a person leaves the sensing range, it automatically delays the high level and outputs a low level.
  • Two trigger modes (jumper selectable):
    A. Non-repeatable trigger mode: After the sensing output is high, the delay time to the end of the output will automatically change from high level to low level.
    B. Repeatable trigger mode: that is, after the induction output is high, if there is a human body activity in its sensing range during the delay time period, its output will remain high until the person leaves and then delay the high level to low level (the induction module will automatically extend a delay time period after detecting each human activity and the time of the last activity is the starting point of the delay time).
  • With induction blocking time: The induction module can set a blocking time period immediately after each induction output (high level becomes low level), and the sensor does not receive any induction signal during this time period. This function can realize the interval work of "induction output time" and "blocking time", which can be applied to interval detection products. At the same time, this function can effectively suppress various interferences generated during load switching.
  • Wide operating voltage range: Default operating voltage DC 5V-12V.
  • Micro power consumption: Static current <200 microamperes.
  • Output high and low level signals/NPN/relay output: Can be easily connected with various circuits.
  • Self-adjustable: The induction delay output time is adjustable (about 5-300 seconds), and the induction distance is adjustable (within 7 meters).

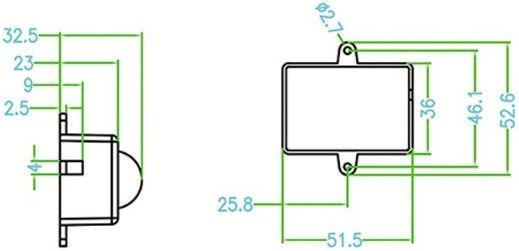

Dimension (Unit:mm)

Pyroelectric human infrared sensor size

Wiring

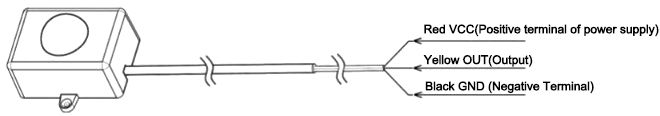

High and low level/NPN output:

Pyroelectric human infrared sensor NPN output

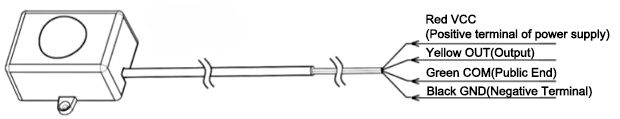

Relay output:

Pyroelectric human infrared sensor relay output

Installation

  • After the sensor is powered on, there is an initialization time of about one minute. During this period, the module will output 0-3 times at intervals and enter the normal standby state after one minute.
  • Avoid direct exposure of interference sources, such as lights to the lens on the surface of the module at close range during installation to avoid introducing interference signals and causing false operation. Avoid flowing wind in the use environment as much as possible, as wind will also interfere with the sensor.
  • Pay attention to the direction angle during installation, otherwise it will affect the sensing distance. The sensing window of the sensor should be parallel to the direction where the human body moves most, so as to achieve a better sensing effect.
  • During use, when the ambient temperature rises and approaches the surface temperature of the human body (30~32℃), the detection distance will be slightly shorter. This is a result of the influence of temperature factors.

Wall mount:

Pyroelectric human infrared sensor wall mounted

Top suction mount:

Pyroelectric human infrared sensor top suction mount

Specification
Working Voltage Range NPN/high and low level output: DC 5-12V
Relay output: DC5V/12V/24V
Quiescent Current <200uA
Output Type High and low level (high 3.3V/low 0V), NPN, relay (normally open/normally closed)
Trigger Mode L non-repeatable trigger/H repeatable trigger (default)
Delay Time Default 5s (5-300s adjustable)
Blocking Time Default about 1s
Circuit Board Dimension 32mm*24mm
Casing Size 52L*36W*23H, mounting hole Φ2.5
Lead Wire Length About 28cm
Sensing Angle <110° cone angle
Sensing Distance Within 7m
Working Temperature -20~85℃
Sensing Lens Size Diameter 23mm
Application
Smart Stairs

Smart Stairs

Smart Furniture

Smart Furniture

Vending Machine

Vending Machine

FAQ

The human body pyroelectric infrared sensor is a passive infrared sensor (PIR) that determines whether a human body is moving by detecting changes in infrared radiation emitted by the human body. Therefore, it is often used in human presence detection, lighting control, security alarm and other fields.

The sensor contains pyroelectric elements inside, which can sense human infrared radiation with a wavelength of about 8~14μm. When a human body moves within its field of view, it causes changes in infrared energy. The sensor captures this change and outputs a signal.

No. A pyroelectric human body infrared sensor can only detect temperature changes, so it will only be detected when a human body moves (causing infrared fluctuations), and it is difficult to trigger if it is stationary.
