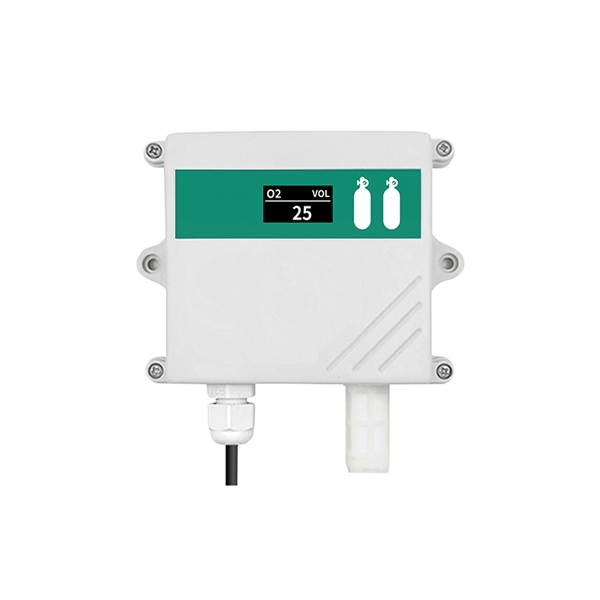

    Picture of Oxygen Gas Transmitter with Display, 0-30%Vol/0-25%Vol Picture of Oxygen Gas Transmitter with Display, 0-30%Vol/0-25%Vol

    Oxygen Gas Transmitter with Display, 0-30%Vol/0-25%Vol

    0 review(s) | Add your review
    SKU: SUCH-O2S-3002
    $117.58
    ● Detect: Oxygen (O2) ● 0-30%Vol/0-25%Vol ● RS485/4-20mA/0-5V/0-10V ● 10~30V DC/24V DC
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    This multi function oxygen transmitter supports optional RS485, 4-20mA, 0-5V, and 0-10V output signals, offering high compatibility. It features a measurement range of 0~30%/0-25% VOL, a response time under 10 seconds, and accuracy up to ±3% FS. The oxygen sensor features a wide voltage supply design (10~30V DC/24V DC), low power consumption, strong anti-interference capability.

    Feature

    Oxygen transmitter feature

    • High-density material housing with built-in waterproof seal for moisture and dust resistance, enabling the oxygen transmitter to withstand harsh on-site detection environments.
    • Standard Modbus-RTU communication protocol with optional RS485/4-20mA/0-5V interfaces. Configurable communication address and baud rate, with a maximum communication distance of 2000 meters.
    • The oxygen transmitter employs a high-sensitivity gas detection probe paired with an OLED display for direct on-site data viewing, ensuring stable signals and high accuracy.
    • Suitable for industrial and agricultural environments including factory warehouses, food storage facilities, farms, ranches, and horticultural gardens.

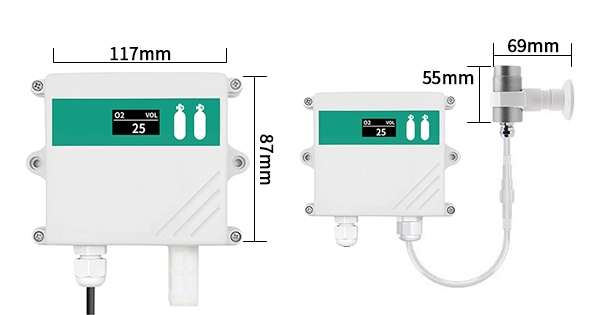

    Dimension (unit: mm)

    Oxygen transmitter dimension

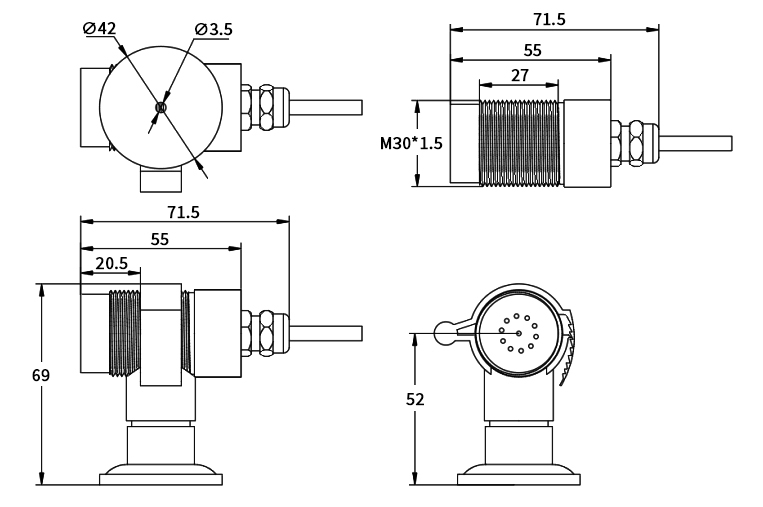

    Extension Probe

    Oxygen transmitter extension probe dimension

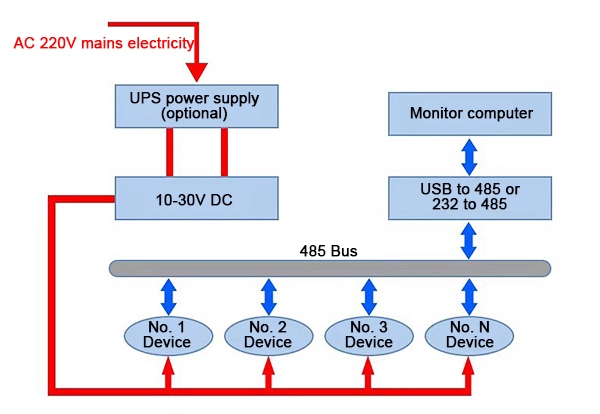

    Power Supply Diagram (RS485 Type)

    Oxygen transmitter power supply diagram

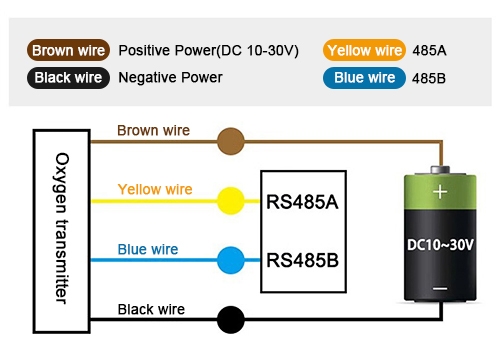

    Wiring Diagram

    Oxygen transmitter rs485 wiring diagram
    Oxygen transmitter analog wiring diagram
    Description Wire Color RS485 Output
    Power Brown Power Positive
    Black Power Negative
    Communication Yellow RS485-A
    Blue RS485-B
    Description Wire Color Analog Output
    Power Brown Power Positive
    Black Power Negative
    Communication Yellow Signal Positive
    Blue Signal Negative
    Specs
    Output Signal RS485 4-20mA 0-5V 0-10V
    Power Supply 10~30V DC 24V DC
    Range 0~30%Vol 0~25%Vol
    Power Consumption 0.12W 0.25W
    Temp Range -40°C~+80°C /
    Temp Accuracy ±0.5°C /
    Humidity Range 0 to 100% RH /
    Accuracy ±3% FS
    Resolution 0.1% VOL
    Humidity Accuracy ±3% RH
    Operating Temp -20°C~50°C
    Operating Humidity 5~95%RH (non-condensing)
    Pressure Range 90~110kPa
    Stability ≤5% signal/year
    Response Time <10s
    Warm-up Time >5min
    Zero Drift ±0.3%VOL (-20~40°C)
    Repeatability ≤1%
    Service Life ≥24 months
    Application
    Oxygen transmitter of factory warehouse

    Factory Warehouse

    Oxygen transmitter of agricultural and livestock farm

    Agricultural and Livestock Farm

    Oxygen transmitter of food storage

    Food Storage

    FAQ
    ❯

    The digital oxygen transmitter should be installed in a location free from impact, vibration, and strong electromagnetic interference, and easily accessible for maintenance. The clearance between the installation site and surrounding process pipelines or equipment should not be less than 0.5m. It is recommended to install the transmitter 0.5m to 1.0m below the release source.

    ❯

    When testing the oxygen transmitter's response to target gases, it is recommended to use corresponding gas standard substances with concentrations not exceeding the device's measurement range. Abnormal readings resulting from non-recommended testing methods are not covered. Oxygen sensors must not be used long-term in environments with oxygen concentrations below 10% VOL. Abnormal readings caused by low-oxygen environments are not covered.

    ❯

    This RS485 signal output oxygen transmitter supports multiple sensors connected to a single 485 bus. Theoretically, one bus can accommodate up to 254 RS485 sensors. Connect the other end to a PLC with an RS485 interface, link to a microcontroller via an RS485 interface chip, or use a USB-to-RS485 adapter to connect to a computer. Configure and test using the sensor configuration tool provided by our company (only one device can be connected at a time when using this configuration software).
