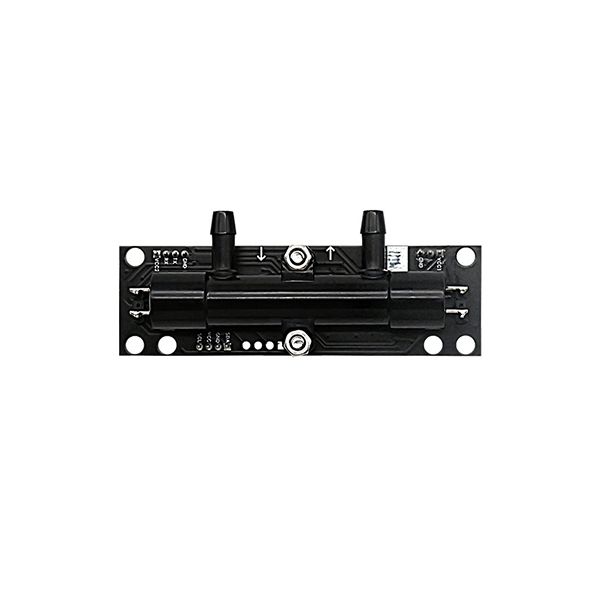

Ultrasonic Oxygen Sensor, 21-95.6%, Long/Short Type

Buy high-performance ultrasonic oxygen sensors with concentration detection ranging from 21% to 95.6% and flow rate detection from 0 to 10 L/min. Concentration resolution is 0.001%, and flow accuracy is ±0.2 L/min. Compact and lightweight at approximately 20g, users can select either short or long versions of the ultrasonic oxygen sensor. The PBT housing offers heat resistance and pressure tolerance, supports UART communication interfaces, and delivers stable output.

Feature

• High-precision oxygen detection from 21% to 95.6% with accuracy up to ±1.8% F.S., the SUCH high-performance ultrasonic oxygen sensor delivers real-time, precise oxygen concentration data.
• With a 500ms detection cycle and 10-second warm-up time, the ultrasonic oxygen sensor provides near-instant measurement feedback, ideal for scenarios demanding real-time data.
• DC 5V power supply with operating current below 30mA ensures efficient energy savings. Supports standard UART communication for seamless integration with various control boards and embedded systems.
• ABS+30% GF high-strength plastic/PBT housing offers wear resistance and impact toughness while maintaining lightweight design. Easily integrates into compact devices, combining portability with durability.

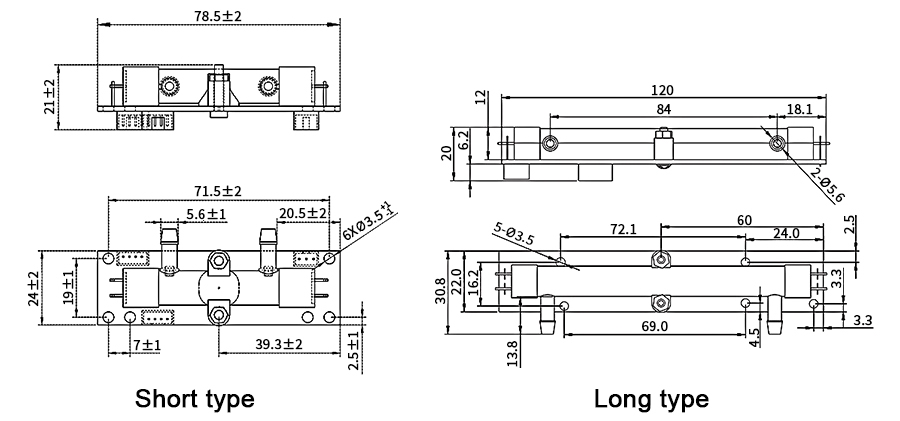

Dimension (unit: mm)

Working Principle

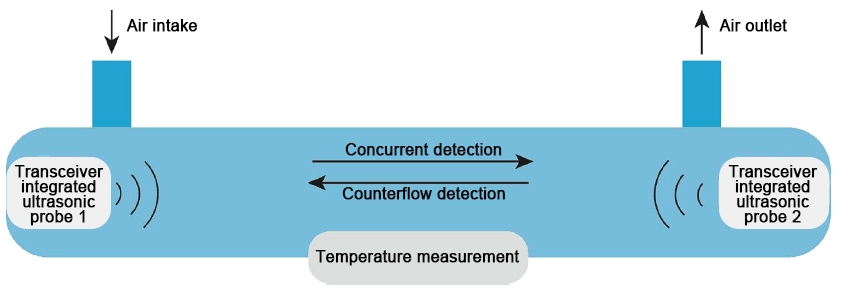

Based on the physical transmission characteristics of ultrasound, oxygen concentration and flow rate are calculated by detecting the upstream and downstream transit times. As shown in the figure, oxygen enters the ultrasonic oxygen sensor through the inlet, flows from the transceiver ultrasonic probe 1 to the transceiver ultrasonic probe 2, and then exits the sensor through the outlet. The forward transit time is the duration required for a signal transmitted from the transceiver ultrasonic probe 1 to reach the transceiver ultrasonic probe 2. The reverse transit time is the duration required for a signal transmitted from the transceiver ultrasonic probe 2 to reach the transceiver ultrasonic probe 1.

Interface Wiring Method

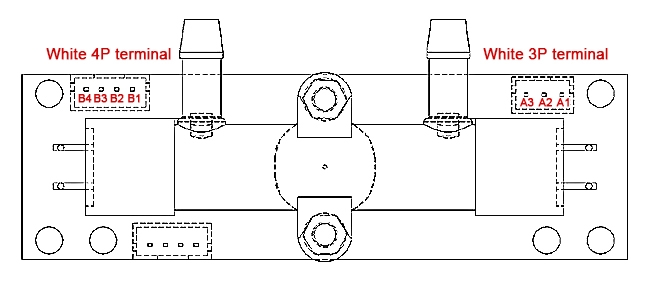

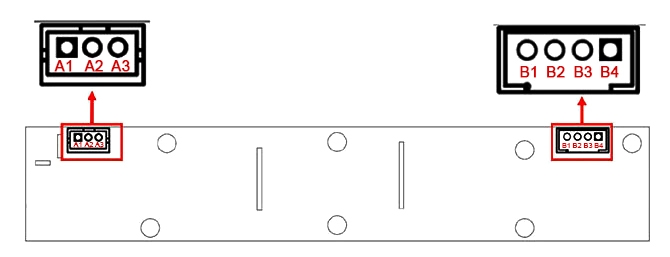

The ultrasonic oxygen sensor employs serial port communication, with the interface as shown. The power supply voltage input port in the table is for production use only and should not be utilized by users. The digital signal output port in the table serves as the user interface for transmitting and receiving data upon power-up.

Short-type

Long-type
