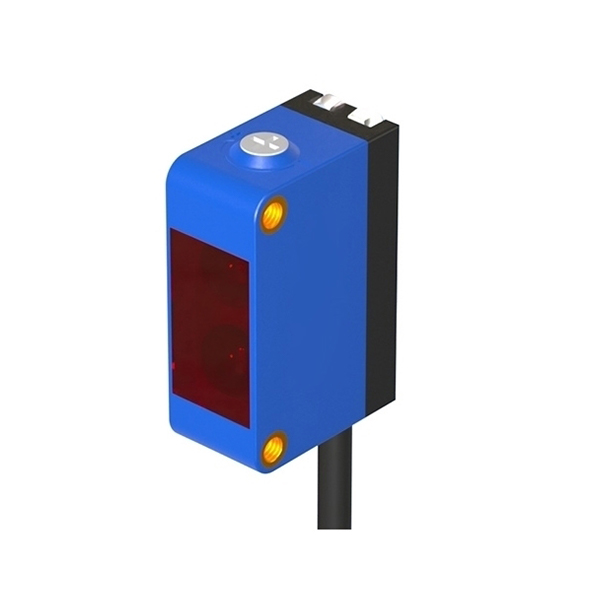

Photoelectric Distance Sensor with Visible LED, 1-30cm

The SUCH photoelectric distance sensor offers precise detection within a 1-30cm range, using a visible red LED light source for clear visibility. Featuring multiple protection mechanisms, it ensures both the distance sensor and connected equipment remain safe during operation. Its durable PC housing, high-transmission optical filter, and IP65 protection rating ensure reliability even in challenging environments, while flexible NPN/PNP output options make it versatile for various applications.

Feature

• Multiple Protection Mechanisms: Short-circuit protection, overload protection, and polarity protection. These not only protect the distance sensor itself but also safeguard the equipment from damage, ensuring safer operation during use.
• Stable Detection: Features background suppression function, making the distance measurment sensor less affected by color variations. Both black and white surfaces can provide nearly the same detection distance.
• Five-Turn Sensitivity Adjustment: Large knob design for easy and quick distance adjustment, allowing more precise tuning to find the optimal position for detecting objects.
• High-Transmission Optical Filter: Filters out interference from other light sources and electromagnetic signals, ensuring more accurate reception, precise detection, and stable performance.

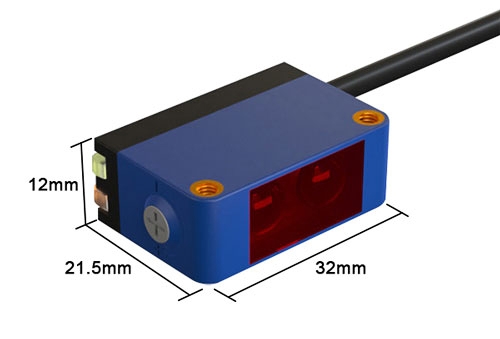

Dimension (Unit:mm)

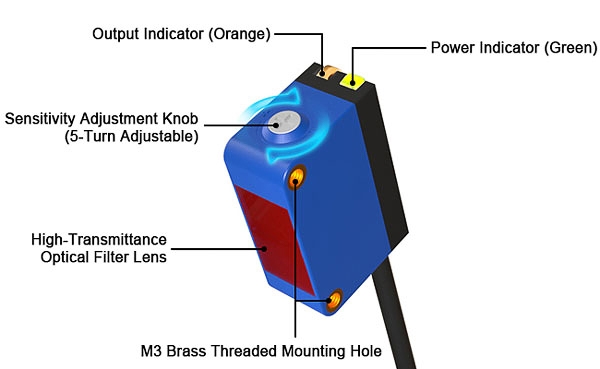

Detail

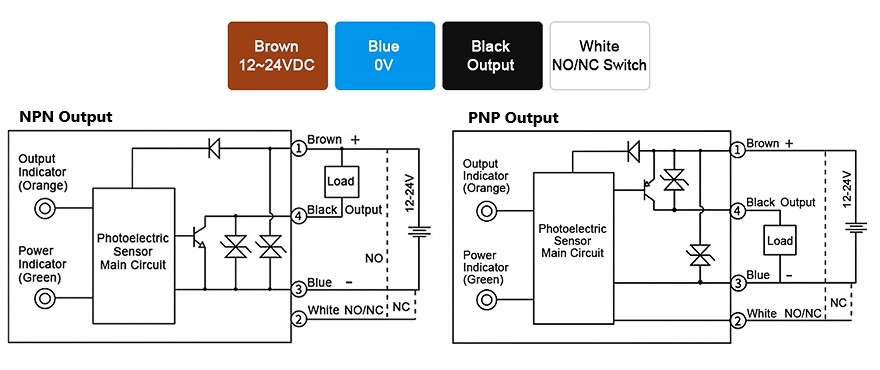

Wiring Instruction
