Ultrasonic Range Sensor, 200-1000mm

SKU: SUCH-UDS-QF30U

$543.86

● Signal Output: NPN (4-20mA / 0-10VDC), PNP (4-20mA / 0-10VDC) ● Detection Range: 200-1000mm ● Enclosure Material: ABS Engineering Plastic ● Protection Rating: IEC IP67

Signal Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The ultrasonic range sensor offers reliable and versatile distance measurement capabilities, with a detection range spanning from 200mm to 1000mm. This sensor features both NPN and PNP signal outputs making it suitable for a variety of industrial applications. Built with ABS engineering plastic, the SUCH distance sensor is durable and well-suited for tough environments. With its high-speed response, integrated smart chip, and immunity to environmental interference, this sensor guarantees stable and accurate performance.

Feature

Ultrasonic range sensor feature

This SUCH distance sensor detects a wide range of materials, making it highly versatile.
High-speed response with an integrated smart chip, immune to environmental interference, ensuring safety and reliability.
PVC cable with pure copper conductors, offering great flexibility and enhanced durability.
IP67 protection rating, resistant to moisture and water splashing.

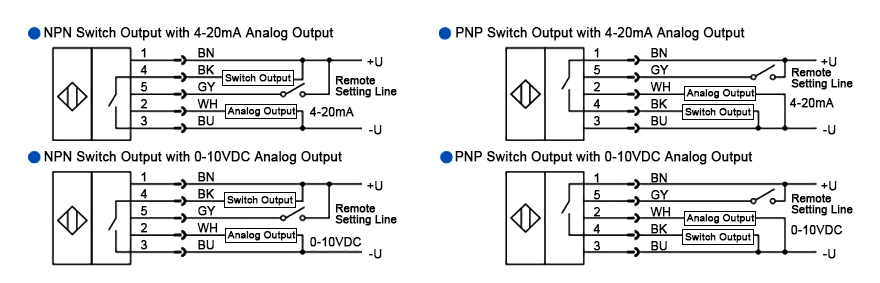

Wiring Instruction

Ultrasonic range sensor wiring

Note: BN = Brown wire, BU = Blue wire, BK = black wire, WH = White wire, GY = Gray wire.

Specs

Detection Method	Ultrasonic Reflection Type
Signal Output	NPN (4-20mA / 0-10VDC)	PNP (4-20mA / 0-10VDC)
Detection Distance	200-1000mm
Blind Zone	200mm
Standard Detection Object	100×100mm
Current Consumption	≤ 90mA
Switching Output	NPN, PNP Open Collector Output: Load Current 100mA, Residual Voltage ≤ 2V
Analog Output	4-20mA Output, 0-10VDC Output
Response Time	Switching Output: Minimum 48ms. Analog Output: Minimum 48ms, updated every 16ms.
Indicators	Power Indicator: Green LED, Operation Indicator: Yellow LED, Ultrasonic Intensity Indicator: Red LED
Output Status	Switching Output: Light-on or Dark-on selectable
Detection Accuracy	Analog Resolution or Switching Output Repeatability: ±0.25% of the detection distance
Adjustment Method	Adjustment via window buttons and remote setting line, for configuring detection distance and output method.
Ambient Temperature	Operating: -20°C to +60°C (no freezing), Storage: -25°C to +70°C
Ambient Humidity	Operating: 35-85% RH, Storage: 35-85% RH
Vibration Resistance	Vibration Frequency: 10-55Hz, Amplitude: 1.5mm, 2 hours in each of the X, Y, and Z axes
Shock Resistance	Acceleration: 500m/s² (approximately 50g), 3 times in each of the X, Y, and Z axes
Interference Resistance	±240V square wave generated by the interferer (pulse width: 1μs)
Dielectric Strength	1000VAC, 50/60Hz for 1 minute
Insulation Resistance	DC 500V, above 20MΩ
Insulation Strength	AC 500V, 50/60Hz for 1 minute (0-40°C, 85% RH)
Enclosure Material	ABS Engineering Plastic
Protection Rating	IEC IP67

Application

Industrial Automation

Packaging Equipment

Robotics

FAQ

Q1: Does an ultrasonic distance sensor require regular maintenance? ❯

Ultrasonic distance sensors require minimal maintenance. Regularly check for dirt or debris on the sensor’s surface, as this can affect performance. Also, inspect electrical connections for any wear or corrosion, especially if used in harsh environments. Periodic checks are recommended to ensure consistent accuracy.

Q2: How to choose the right ultrasonic distance sensor? ❯

Choose an ultrasonic sensor based on the required measurement range, precision, and environmental conditions. Ensure the sensor’s range matches your application, and that its accuracy is sufficient. Consider the sensor’s compatibility with environmental factors like temperature and humidity, as well as its output type (digital or analog).

Q3: Can ultrasonic distance sensors be used for robotic obstacle avoidance? ❯

Yes, ultrasonic distance sensors are commonly used for robotic obstacle avoidance. They help detect obstacles and provide real-time distance measurements, enabling the robot to navigate and avoid collisions. For better accuracy, they are often combined with other sensors like infrared or LIDAR.
