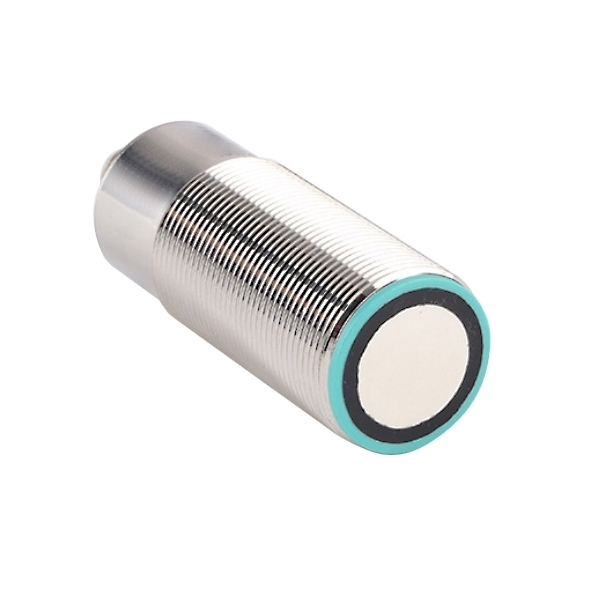

Waterproof Ultrasonic Distance Sensor, 200-2000mm

SKU: SUCH-UDS-200
$398.69
● Signal Output: Switching Output / Analog Output ● Detection Range: 200-2000mm ● Enclosure Material: Nickel Copper Alloy (Plastic Part is PBT) ● Protection Rating: IEC IP67
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

The waterproof ultrasonic distance sensor, with a detection range of 200-2000mm, offers versatile performance for various applications. With an IP67 protection rating, the ultrasonic sensor for distance measurement is fully protected against dust and can withstand immersion in water up to 1 meter for a short time, making it ideal for use in outdoor, industrial, and wet conditions. This sensor delivers precision and durability in various settings.

Feature

  • The SUCH distance sensor offers selectable output modes, allowing you to choose between switching or analog output based on your application needs.
  • The construction uses a durable nickel copper alloy and PBT plastic, ensuring strength and resistance.
  • IP67 protection rating, resistant to moisture and water splashing.

Dimension (Unit:mm)

Waterproof ultrasonic distance sensor dimension

Wiring Instruction

Waterproof ultrasonic distance sensor wiring

Specs
Signal Output Analog Signal / Switching Signal
Detection Distance 200mm-2000mm
Blind Area 150mm
Standard Detector 100x100mm
Supply Voltage 24V DC ±10%
Consumption Current Less than 50mA
Response Time 48ms (min)
Detection Accurancy ±0.25% FS
Working Temperature -20℃ to +60℃
Storage Temperature -25℃ to +70℃
Vibration Frequency 10-55Hz
Withstand Voltage 100VAC 50/60Hz, 1minute
Insulation Electronic Resistance DC 500V, more than 20MΩ
Shell Material Nickel Copper Alloy (plastic part is PBT)
Protection Level IEC IP67
Certification CE
Warranty 12 months
Application
Industrial automation

Industrial Automation

Packaging equipment

Packaging Equipment

Robotics

Robotics

FAQ

Waterproofing is crucial for ensuring the sensor’s longevity and reliability in environments where moisture or water exposure is inevitable. For sensors used in applications like outdoor measurement, marine systems, or wet industrial settings, waterproofing prevents water ingress that could short-circuit the electronics, impair sensor accuracy, or lead to failure. This feature ensures the sensor continues to perform optimally, even in harsh conditions.

A waterproof ultrasonic distance sensor is a type of sensor that uses ultrasonic waves to measure distances, and it can work in wet or damp environments. These sensors are sealed with waterproof materials, ensuring that they can operate in conditions exposed to rain, moisture, or even submerged in water for a limited time.

The waterproofing feature significantly enhances the sensor's performance in environments where moisture, rain, or water exposure is inevitable. For instance, in outdoor applications like drones or vehicles that operate in wet conditions, the waterproof sensor ensures continuous, reliable operation without the risk of sensor failure due to water damage. It also protects the sensor from corrosion, extending its lifespan and maintaining its accuracy over time.
