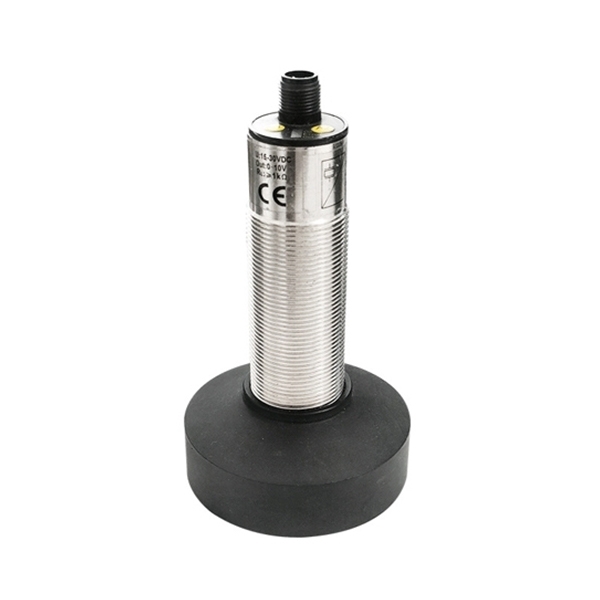

Long Range Ultrasonic Distance Sensor, 500-8000mm

SKU: SUCH-UDS-8000
$485.96
● Output Type: Switching Signal / Analog Signal ● Detection Range: 500mm-8000mm ● Housing Material: Nickel-plated Brass ● Protection Class: IP65
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

The SUCH long range ultrasonic distance sensor is designed to provide precise and reliable distance measurements in a variety of challenging environments. With a detection range of 500mm to 8000mm, it can accurately detect objects even in harsh and complex conditions. The sensor features a robust nickel-plated brass housing, ensuring durability and a long operational lifespan. With an IP65 protection class, this sensor is built to withstand dust and water exposure, making it ideal for industrial and outdoor applications.

Feature

Long range ultrasonic distance sensor feature

  • Wide Applicability: The SUCH distance sensor has a wide range of applications and can accurately detect objects even in harsh environments and complex working conditions.
  • Durable and Long-Lasting: It features a Nickel-plated brass housing, making it robust, durable, and ensuring a long service life.
  • Convenient Adjustment: Equipped with A1/A2 adjustment buttons for easy and convenient tuning.
  • High-Quality Transducer: The sensor uses a high-quality transducer, offering fast and accurate responses with stable output.
  • Premium Connector: It is designed with a premium, aviation-grade connector that ensures a tight and secure connection.

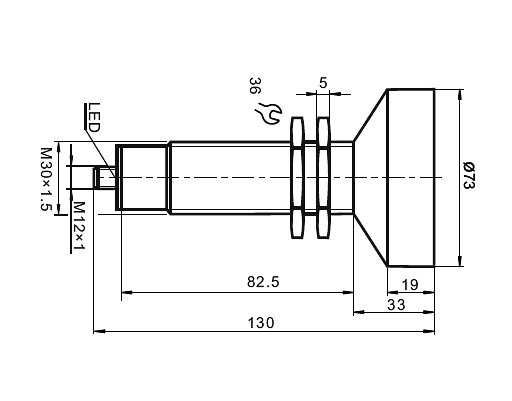

Dimension (Unit:mm)

Long range ultrasonic distance sensor dimension

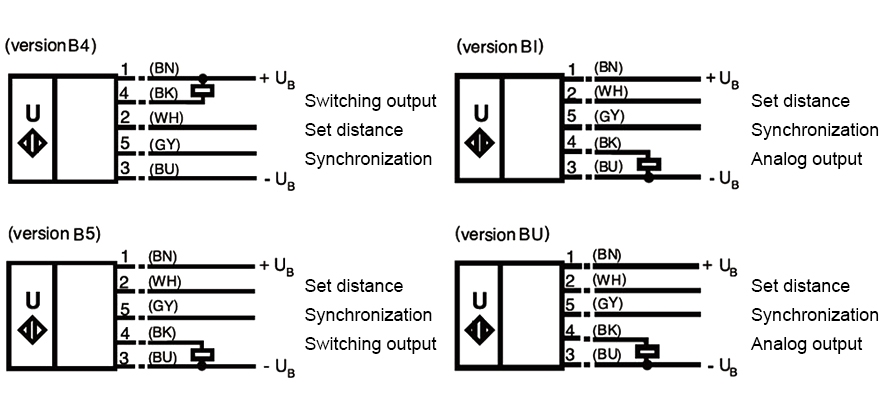

Wiring Instruction

Long range ultrasonic distance sensor wiring

Specs
Output Type NPN NO / NC PNP NO / NC 4-20mA 0-10V
Detection Range 500-8000 mm
Blind Zone 0-500 mm
Transducer Frequency Approx. 65KHz
Response Time Approx. 650ms
Standard Target Board / / 100*100 mm 100*100 mm
Switching Frequency ≤0.8Hz ≤0.8Hz / /
No-load Current / / ≤60mA ≤60mA
Rated Operating Current 200mA 200mA / /
Supply Voltage 10-30VDC ripple 10%
Repeatability ≤0.5% ≤0.5% ±0.1% offull-scale value ±0.1% offull-scale value
Range Adjustment The farthest and closest range can be adjusted by pushing a button
Protection Class IP65
Connection Method H5 (5-pin) M12 connecting wire/2m PVC cable
LED Green Solid: Power on
LED Yellow Solid: Switching state switch output; Flashing: Program function
LED Red Ormal operation: "fault"; Program function: No obiect detected
Product Certification F© / CE / CCC / ROHS / EAC
Application
Industrial automation

Industrial Automation

Packaging equipment

Packaging Equipment

Robotics

Robotics

FAQ

A long range ultrasonic distance sensor is a type of sensor that uses ultrasonic waves to measure the distance between the sensor and an object over long distances. These sensors are typically designed for distances ranging from a few meters up to several tens of meters, making them ideal for applications where precise distance measurement is needed over greater ranges.

The primary advantage of using a long-range ultrasonic sensor is its ability to accurately measure distances over extended ranges without requiring contact with the object being measured. This is especially useful for applications in industrial automation, robotics, and environmental monitoring where accurate, non-contact distance measurements are necessary over larger areas.

When choosing between a short-range and a long-range ultrasonic sensor, consider the distance you need to measure. Short-range sensors are ideal for measurements within 2 meters, offering high accuracy for close-range applications. Long-range sensors, on the other hand, are better for detecting distances from a few meters up to 15 meters or more, making them suitable for outdoor or large-area applications. Additionally, environmental factors like temperature and humidity can affect sensor performance, so it’s important to select a sensor that fits your specific measurement needs.
