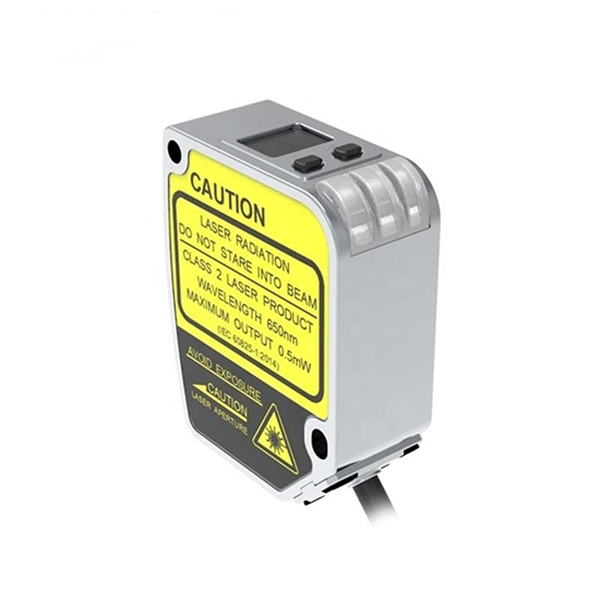

Industrial Laser Distance Sensor, 30mm

0 review(s) | Add your review

SKU: SUCH-LDS-PDACC30

$1,110.63

● Output Signal: RS485 / 4-20mA ● Measuring Range: 30mm ● Light Source: Red Laser (650nm) ● Protection Rating: IP67

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The industrial laser distance sensor offers high-precision measurements with a small spot size, making it ideal for accurately measuring very tiny objects. Featuring a red laser (650nm) light source and a measuring range of 30mm, it ensures reliable performance in precision applications. With output options including RS485 and 4-20mA, the SUCH distance sensor provides flexible integration into various systems. The key/remote teach-in function allows for easy adjustment of response times, ensuring versatility for different applications.

Feature

Exquisite and Lightweight Aluminum Housing: The sensor features a sleek, light aluminum housing, making it easy to mount and dismount.
Convenient OLED Display: The intuitive operation panel with a visual OLED display enables fast and easy function settings.
Small Spot Size for Precision: The sensor’s small diameter light spot allows for accurate measurement of very tiny objects.
Key/Remote Teach-In Function: Easily adjust the response time for different applications through key or remote teach-in, ensuring flexible configuration.
Versatile Function Settings & Outputs: Offers powerful and customizable function settings along with flexible output options.
Fully Shielded Design: The complete shielding provides enhanced anti-interference performance, ensuring reliable operation.
IP67 Protection: With an IP67 rating, this sensor can function effectively in both wet and dusty environments.

Dimension (Unit:mm)

Body Part

Laser range sensor body dimension

Accessory Part

Laser range sensor accessory dimension

Installation Instruction

Laser range sensor installation

Wiring Instruction

Laser range sensor wiring

Note:
The sensors are equipped with shielded cables, Q is the switch output.
RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
Analog output: The gray line "Ia" cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

Specs

Output Signal	RS-485 (Support Modbus protocol)	4-20mA (Load resistance < 390Ω)
Linear Accuracy	±0.3% F.S	±0.4% F.S
Supply Voltage	10-30V DC	12-24V DC
Connection	2m 5-pins/ 4-pins PVC Cable	4-pin: Analog output
Light Source	Red laser (650nm)
Laser Class	Class 2
Spot Diameter	Φ0.5@30mm
Measuring Center Distance	30mm
Measuring Range	±5mm
Resolution	2.5um@30mm
Repeated Accuracy	5um
Voltage Drop	< 2.5V
Power Consumption	≤ 700mW
Load Current	200mA
Circuit Protection	Short circuit, reverse polarity, overload protection
Ambient Temperature	-10-50℃
Temperature Drift	±0.08% F.S./℃
Response Time	2ms / 16ms / 40ms (configurable)
Ambient Humidity	35-85% RH (No condensation)
Anti-ambient Light	Incandescent light: <3,000lux
Impluse Withstand	500m/s² (About 50G)3 times each in X, Y, Z directions
Vibration Resistance	10-55Hz Double amplitude 1mm, 2h each in X, Y, Z directions
Protection Rating	IP67
Material	Housing: Aluminum; Lens cover: PMMA; Display panel: PC
Accessory	Screw (M4×35mm)×2, Nut×2, Washer×2, Mounting bracket, Operation manual
Dimension	655123mm
Certificates	CE
Warranty	12 months
Note: ①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90％ white card. ②The statistical data follows the 3σ criteria ③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results. ④Slave address,baud rate setting only for RS-485 series. ⑤Protecion circuit only for switch output.

Application

Industrial Automation

Packaging Equipment

Robotics

FAQ

Q1: Can the laser distance sensor be used for continuous measurement? ❯

Yes, many laser distance sensors are designed for continuous distance measurement, and the output can update in real time for dynamic applications, such as in robotic systems or moving objects.

Q2: How do I protect my laser distance sensor from environmental damage? ❯

Ensure the distance sensor is mounted in a suitable enclosure or protective casing if used in harsh environments. Consider sensors with high protection ratings like IP67 to safeguard against dust and water. Regular maintenance and cleaning are also recommended to ensure proper functioning.

Q3: Why should I use a laser distance sensor? ❯

Laser distance sensors provide high precision, fast response times, and non-contact measurements, making them ideal for a wide range of applications. Their compact and versatile design allows easy installation in tight spaces, while their long measurement range and resistance to harsh environments (like dust and moisture) ensure reliable performance in industrial settings. Additionally, these sensors require minimal maintenance, reduce operational costs, and enhance safety by measuring objects without physical contact, making them a great choice for automation, robotics, and quality control processes.
