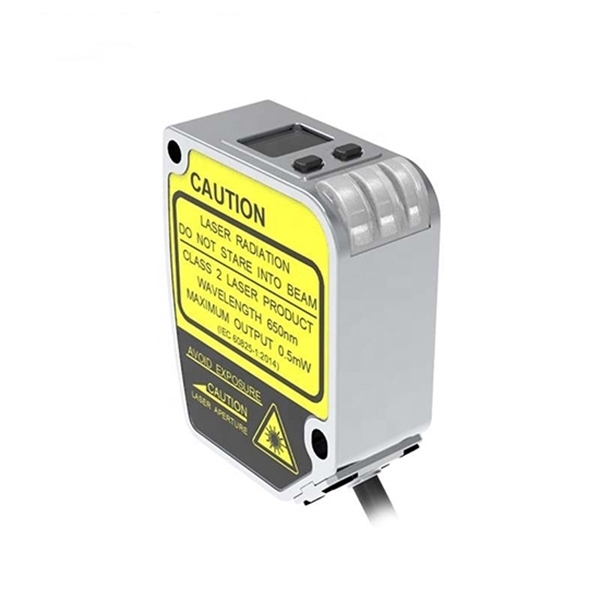

Long Range Laser Distance Sensor, 150-1000mm

SKU: SUCH-LDS-PDACC100

$1,302.11

● Output Signal: RS485 / 4-20mA ● Measuring Range: 150-1000mm ● Light Source: Red Laser (650nm) ● Protection Rating: IP67

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The long range laser distance sensor offers precise distance measurement with a range of 150mm to 1000mm, making it ideal for medium-range applications. Featuring a lightweight aluminum housing, the SUCH distance sensor is durable and easy to mount. The OLED display provides an intuitive interface, allowing quick and easy adjustments for efficient operation.

Feature

Exquisite and Lightweight Aluminum Housing: The sensor features a sleek, light aluminum housing, making it easy to mount and dismount.
Convenient OLED Display: The intuitive operation panel with a visual OLED display enables fast and easy function settings.
Small Spot Size for Precision: The sensor’s small diameter light spot allows for accurate measurement of very tiny objects.
Key/Remote Teach-In Function: Easily adjust the response time for different applications through key or remote teach-in, ensuring flexible configuration.
Versatile Function Settings & Outputs: Offers powerful and customizable function settings along with flexible output options.
Fully Shielded Design: The complete shielding provides enhanced anti-interference performance, ensuring reliable operation.
IP67 Protection: With an IP67 rating, this sensor can function effectively in both wet and dusty environments.

Dimension (Unit:mm)

Body Part

Laser range sensor body dimension

Accessory Part

Laser range sensor accessory dimension

Installation Instruction

Laser range sensor installation

Wiring Instruction

Laser range sensor wiring

Note:
The sensors are equipped with shielded cables, Q is the switch output.
RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
Analog output: The gray line "Ia" cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

Specs

Output Signal	RS-485 (Support Modbus protocol)	4-20mA (Load resistance < 390Ω)
Linear Accuracy	±0.6% F.S	±0.3% F.S (150-450mm) / ±0.6% F.S (450-1000mm)
Supply Voltage	10-30V DC	12-24V DC
Connection	2m 5-pins/ 4-pins PVC Cable	2m 4-pin PVC cable
Light Source	Red laser (650nm)
Laser Class	Class 2
Spot Diameter	Φ3mm@1000mm
Measuring Range	150-1000mm
Resolution	50um@150mm; 2000@1000mm
Repeated Accuracy	100um@150mm; 520um@500um; 4000um@1000mm
Voltage Drop	< 2.5V
Power Consumption	≤ 700mW
Load Current	200mA
Circuit Protection	Short circuit, reverse polarity, overload protection
Ambient Temperature	-10-50℃
Temperature Drift	±0.02% F.S./℃
Response Time	2ms / 16ms / 40ms (configurable)
Ambient Humidity	35-85% RH (No condensation)
Anti-ambient Light	Incandescent light: <3,000lux
Impluse Withstand	500m/s² (About 50G)3 times each in X, Y, Z directions
Vibration Resistance	10-55Hz Double amplitude 1mm, 2h each in X, Y, Z directions
Protection Rating	IP67
Material	Housing: Aluminum; Lens cover: PMMA; Display panel: PC
Accessory	Screw (M4×35mm)×2, Nut×2, Washer×2, Mounting bracket, Operation manual
Dimension	655123mm
Certificates	CE, UL, CCC, ROHS
Warranty	12 months
Note: ①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90％ white card. ②The statistical data follows the 3σ criteria ③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results. ④Slave address,baud rate setting only for RS-485 series. ⑤Protecion circuit only for switch output.

Application

Industrial Automation

Packaging Equipment

Robotics

FAQ

Q1: Why choose a long range laser distance sensor? ❯

A long range laser distance sensor is perfect for applications that need precise distance measurements over extended ranges. It delivers high accuracy, making it suitable for tasks like level measurement, position tracking, and object detection. The sensor is also durable, with protection against dust and water, and is safe to use in various environments.

Q2: Why choose RS-485 / 4-20mA output? ❯

RS-485 and 4-20mA are popular output options for sensors because they ensure reliable data transmission. RS-485 is great for long-distance, noise-resistant digital communication, while 4-20mA provides simple, continuous analog output. Both options are easy to integrate with most control systems, depending on the application.

Q3: What maintenance is required for the sensor? ❯

The sensor requires minimal maintenance. Regular checks for dust buildup on the lens and proper mounting are recommended to ensure the sensor is functioning properly. If the sensor is used in harsh conditions, periodic cleaning of the lens may be necessary.
