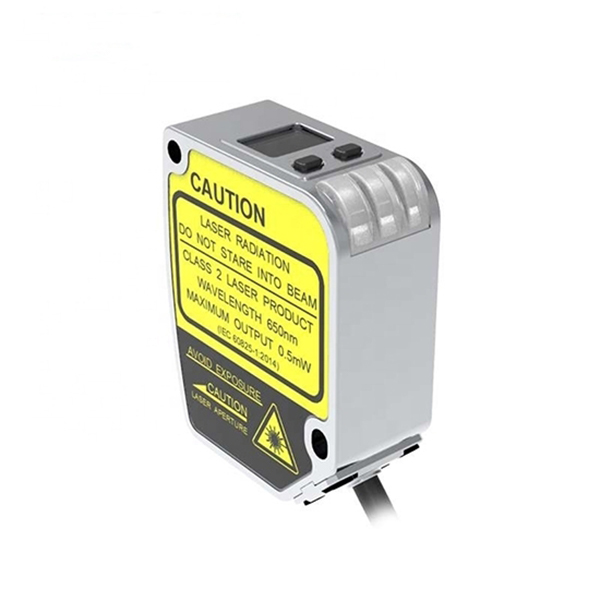

Laser Range Sensor with Display, 30-100mm

The SUCH laser range sensor offers high-precision measurements with a red laser (650nm) and versatile output options, including RS485 and 4-20mA signals. Housed in a sleek, lightweight aluminum casing, it ensures easy installation and durability with an IP67 protection rating, ideal for harsh environments. The OLED display provides intuitive operation, while the small spot size allows for accurate measurement of tiny objects. This sensor delivers reliable and flexible performance for a wide range of applications.

Feature

• Exquisite and Lightweight Aluminum Housing: The sensor features a sleek, light aluminum housing, making it easy to mount and dismount.
• Convenient OLED Display: The intuitive operation panel with a visual OLED display enables fast and easy function settings.
• Small Spot Size for Precision: The sensor’s small diameter light spot allows for accurate measurement of very tiny objects.
• Key/Remote Teach-In Function: Easily adjust the response time for different applications through key or remote teach-in, ensuring flexible configuration.
• Versatile Function Settings & Outputs: Offers powerful and customizable function settings along with flexible output options.
• Fully Shielded Design: The complete shielding provides enhanced anti-interference performance, ensuring reliable operation.
• IP67 Protection: With an IP67 rating, this sensor can function effectively in both wet and dusty environments.

Dimension (Unit:mm)

Body Part

Accessory Part

Installation Instruction

Wiring Instruction

Note:
The sensors are equipped with shielded cables, Q is the switch output.
RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
Analog output: The gray line "Ia" cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.
