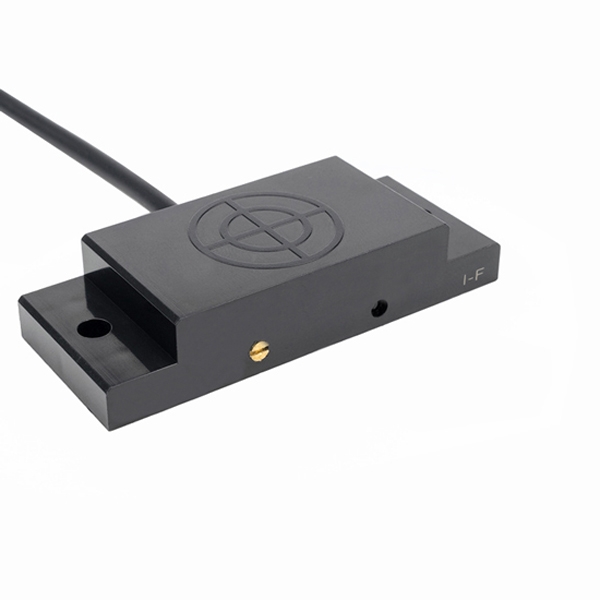

Square Capacitive Proximity Switch, NPN/PNP, IP67

SUCH square type capacitive proximity switch comes with a PBT plastic housing and an IP67 protection rating, adjustable detection distance of 1-10mm and an operating voltage range of 10-30V DC. This capacitive proximity sensor supports 4 output modes: NPN normally open/NPN normally closed/PNP normally open/PNP normally closed, and can detect electrostatically charged objects and is suitable for metal/non-metal object detection scenarios in industrial automation.

Feature

• Wide Detection Capability: The square capacitive proximity sensor uses a 20x20x1 mm iron plate as the standard test object and can detect all metals as well as non-metallic objects that carry static electricity. The detection distance varies depending on the size, thickness, and conductivity of the target—the larger, thicker, and more conductive the object is, the longer the sensing distance will be.
• High Accuracy & Strong Anti-interference: The sensing head and key components adopt imported electronic parts, ensuring high detection accuracy and stable performance. The SUCH capacitive proximity switch uses an electrostatic field sensing method with strong anti-interference capability, and the dual voltage-regulation circuit allows reliable operation within a 9–32V range, extending the product’s service life.

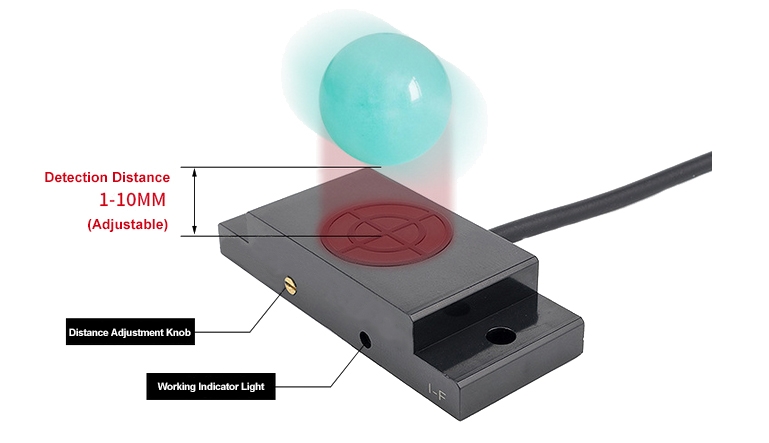

• Adjustable Sensing Distance+High Protection Rating: The sensing distance is adjustable from 1 to 10 mm to meet various application needs. With an IP67 protection rating, the sensor is waterproof and oil-proof, making it suitable for harsh industrial environments.

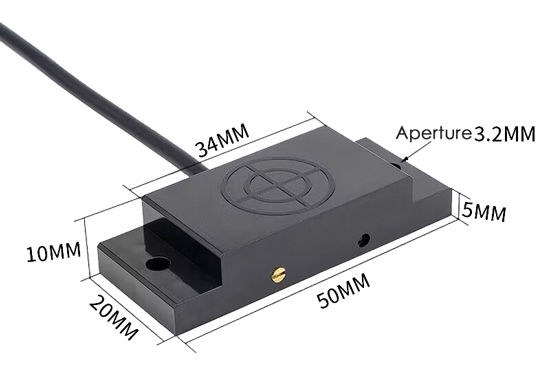

Dimension (Unit: mm)
