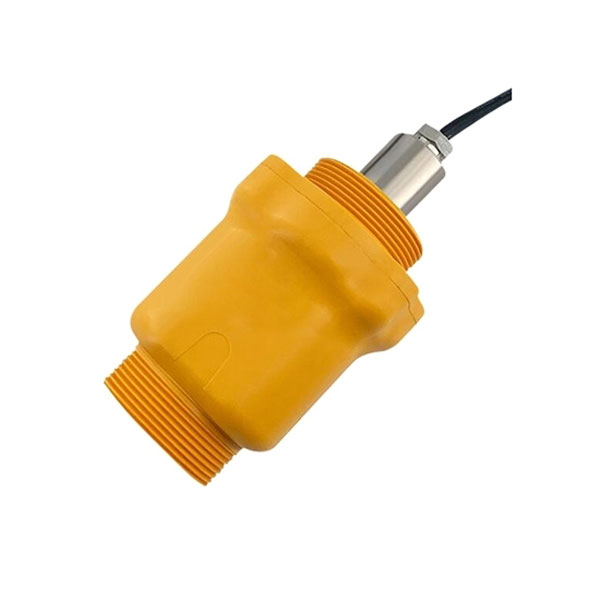

120 GHz Radar Water Level Sensor, RS485

SUCH 120GHz radar water level sensor is a non-contact level transmitter designed for accurate outdoor water level monitoring. It provides 5m, 10m, and 15m range options with ±3mm accuracy, RS485 output, Bluetooth/Modbus calibration, IP68 protection, angle compensation, and temperature compensation. Suitable for river channels, wells, reservoirs, lakes, shoals, narrow spaces, and remote water level monitoring applications.

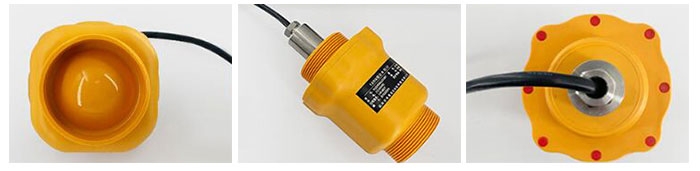

Feature

• Energy Efficient: 120 GHz radar level sensor runs on a single 3.6 V lithium battery, making it suitable for long-term operation.
• Compact and Precise: Radar water level transmitter features a narrow 4° beam angle to reduce interference and automatically filters out false echoes.
• Waterproof and Reliable: With an IP68 rating for consistent performance in wet or submerged conditions.
• Robust PVDF Construction: Resistant to corrosion and moisture, ideal for industrial environments.
• Enhanced Measurement: This level sensor includes tilt angle detection and temperature compensation for accurate readings.
• Interference Protection: Automatically eliminates false signals to maintain a stable and precise level measurement.
• Upgraded Build: It integrates advanced features with a durable design for industrial and environmental applications.

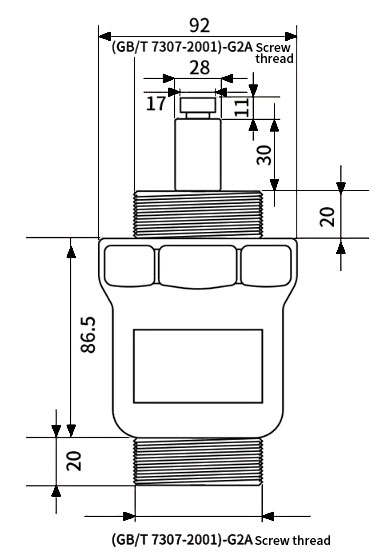

Dimension
