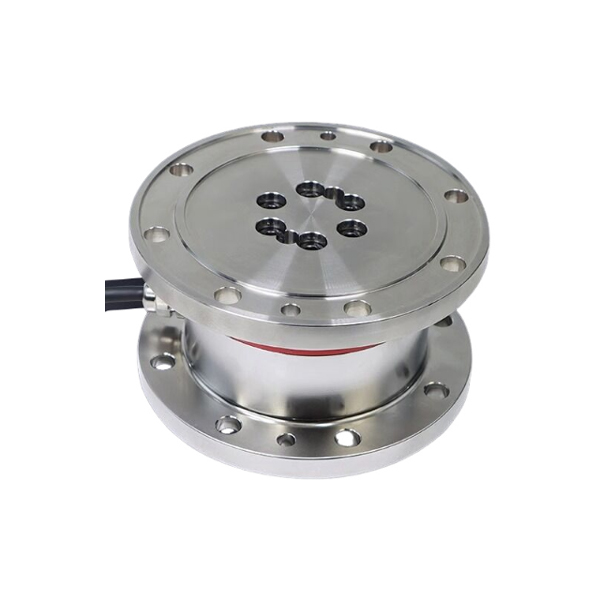

6 Axis Force Torque Sensor, 100-500 Nm

The 6 axis force torque sensor for sale online. The SUCH 6 axis force torque transducer offers a measurement range of 100-500 Nm, operates at 5-15V DC, has an IP65 protection rating, an overload capacity of 300% F.S, and can be used in temperatures ranging from 0℃ to 40℃ and RH from 20% to 80%. The force and torque sensor is primarily suitable for machine tool cutting force detection, rehabilitation medical devices, aircraft lift testing, and robot force-controlled grinding and assembly.

Feature

• It adopts high-strength and quality 17-4PH stainless steel and brass nickel-plated 6-angle waterproof connector, and the protection level reaches IP65.
• The 6 axis force and torque sensor adopts a high-level strain gauge chip, which can realize high resolution and high response frequency.
• The torque transducer adopts a bending-resistant and highly flexible cable with high overload capacity, stable signal, and durability.

Dimension (Unit:mm)

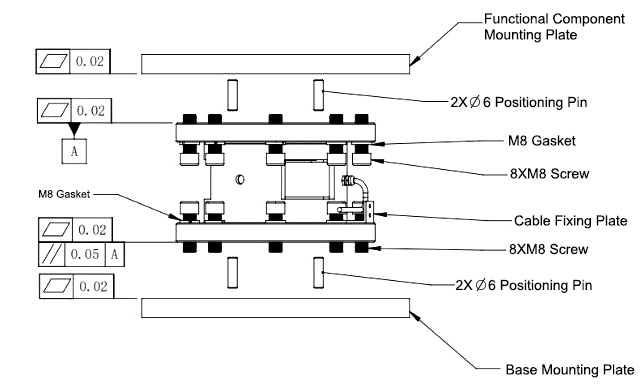

Installation

The 6 axis force torque sensor has two mounting surfaces. The bottom surface is typically mounted on a sturdy base, while the other end houses the functional components. It is crucial to ensure that the base and connecting flange possess sufficient strength and exhibit minimal deformation. Excessive deformation can affect the point of application and direction of force, as well as the system's response time.
