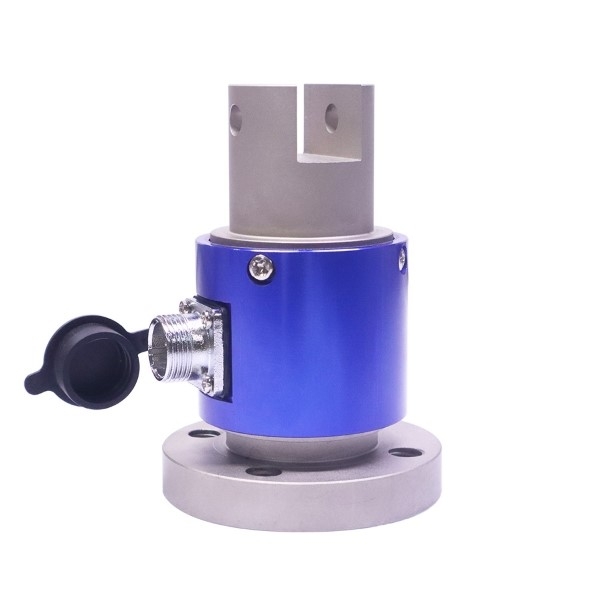

Micro Static Torque Sensor with Aviation Plug, 20/50/100/200 Nm

High-quality micro static torque sensors with aviation plug are available for sale in capacities from 0-20/50/100/200 Nm. SUCH miniature static torque sensor with aviation plug has a flange at one end and a square slot at the other end to measure forward and reverse torque. Static torque transducers can be used for torque measurement in applications where the rotation angle is less than 360°, such as torque wrenches, steering gears, bearings, and testing machines. The capacity of the torque transducer can be customized according to customer requirements.

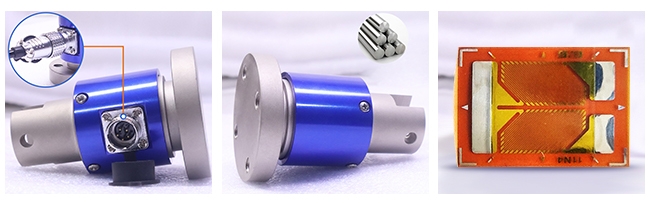

Feature

• Aviation Plug: Plug and unplug easily, providing a quick and easy connection. The aviation plug protection ensures high-speed and stable signal transmission.
• High-quality Materials: The static torque transducer's shell is made of 42CrMo alloy steel, with good hardenability and strong mechanical fatigue resistance.
• High-precision Strain Gauges: Utilizing industrial-grade, high-precision strain gauges, the sensor offers high measurement accuracy, minimal creep, minimal thermal hysteresis, and excellent long-term stability.
• Wide Range of Applications: The high-precision static torque sensor boasts excellent reliability and is widely used for measuring static, non-continuous rotational torque in industrial processes, such as torque wrenches.

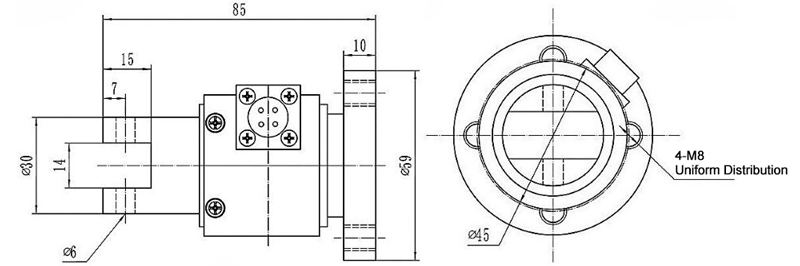

Dimension (Unit: mm)

Force Mode

Wiring
